9 Best Shopping Mall LED Lighting Picks for Each Area (2026)

Choosing the right shopping mall LED lighting isn’t about memorizing spec sheets—it’s about picking reliable fixture types that make each zone work better for safety, comfort, and sales. Below is a practical, by‑area guide you can apply to new builds or retrofits with minimal disruption.

We lead with clear recommendations, then provide just‑enough specs (CCT/CRI/UGR/IP) where they truly matter. If you need a deeper menu of indoor options per area, see our concise resource hub in the soft CTA below.

    ▋Soft CTA: Explore configuration ideas in the Indoor Lighting Solution hub by KEOU: mall and indoor options overview.

1.0 How We Chose (Methodology)

We evaluated fixture choices for each mall zone using six weighted criteria:

• Visual merchandising impact (22%)

• Installation and retrofit ease (18%)

• Energy and controls efficiency (18%)

• Durability and build quality (15%)

• Customization breadth (15%)

• Total cost of ownership over 5 years (12%)

Why these? They balance shopper comfort, brand presentation, project speed, and life‑cycle cost. For indoor areas (foyers, corridors, sales), we reference the quality factors and glare concepts in EN 12464‑1:2021; for parking facilities, we align to the parking chapters of IES RP‑8 and efficiency screens informed by U.S. DOE/FEMP guidance. Local codes and the full standards always prevail.

• Reference: See the EN 12464‑1 overview for indoor workplaces and UGR context in the publisher’s catalog page: EN 12464‑1:2021 overview (CEN/iTeh).

• Reference: For parking facilities and controls, consult ANSI/IES RP‑8 recommended practice and the DOE/FEMP exterior efficiency page.

Disclosure: KEOU Lighting is our product. We evaluated it using the same criteria as other tools in this list.

2.0 Public Zones — Shopping Mall LED Lighting Recommendations

Public zones set the tone for the entire property: keep glare down, transitions smooth, and wayfinding visible.

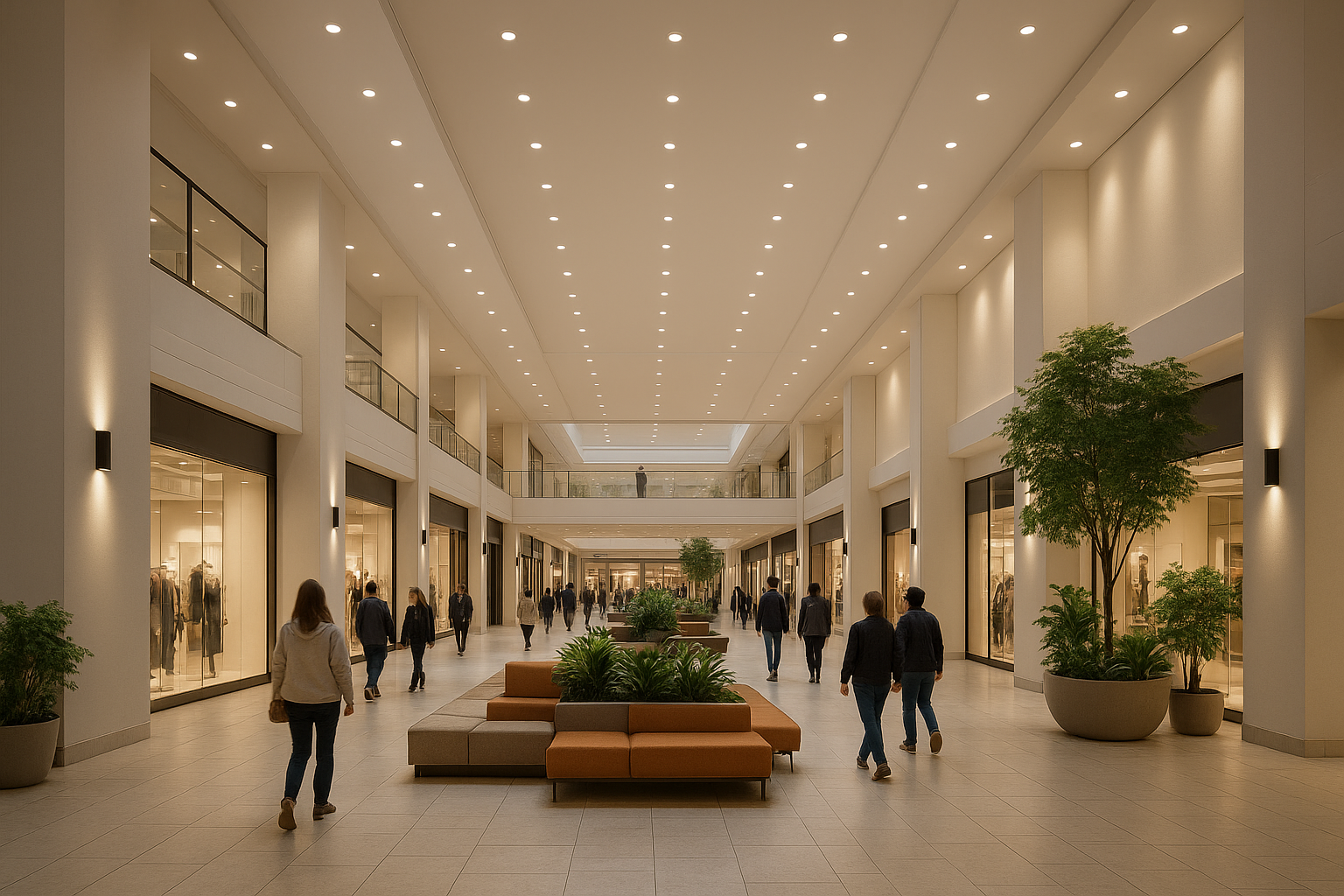

2.1 Atrium

• 1‑line recommendation: Use anti‑glare recessed downlights plus vertical wallwashing to create a bright, comfortable welcome with controlled contrast.

• Why it works: Vertical illumination helps orientation and showcases landmarks; deep‑baffle or louvered optics temper glare in high‑output housings.

• Minimal ranges: 3000–4000K; CRI ≥80; design for UGR comfort through shielding/optics.

• Controls: Daylight‑linked dimming to smooth exterior‑to‑interior adaptation.

• Install notes: In tall volumes, prioritize service access and consistent aiming to avoid hotspots.

• Pros/Cons: Pros—memorable arrival, better orientation. Cons—lift access for maintenance; careful photometrics needed.

• Evidence: ERCO’s guidance on vertical illumination and wallwashing offers practical aiming tips: 7 tips for effective wallwashing.

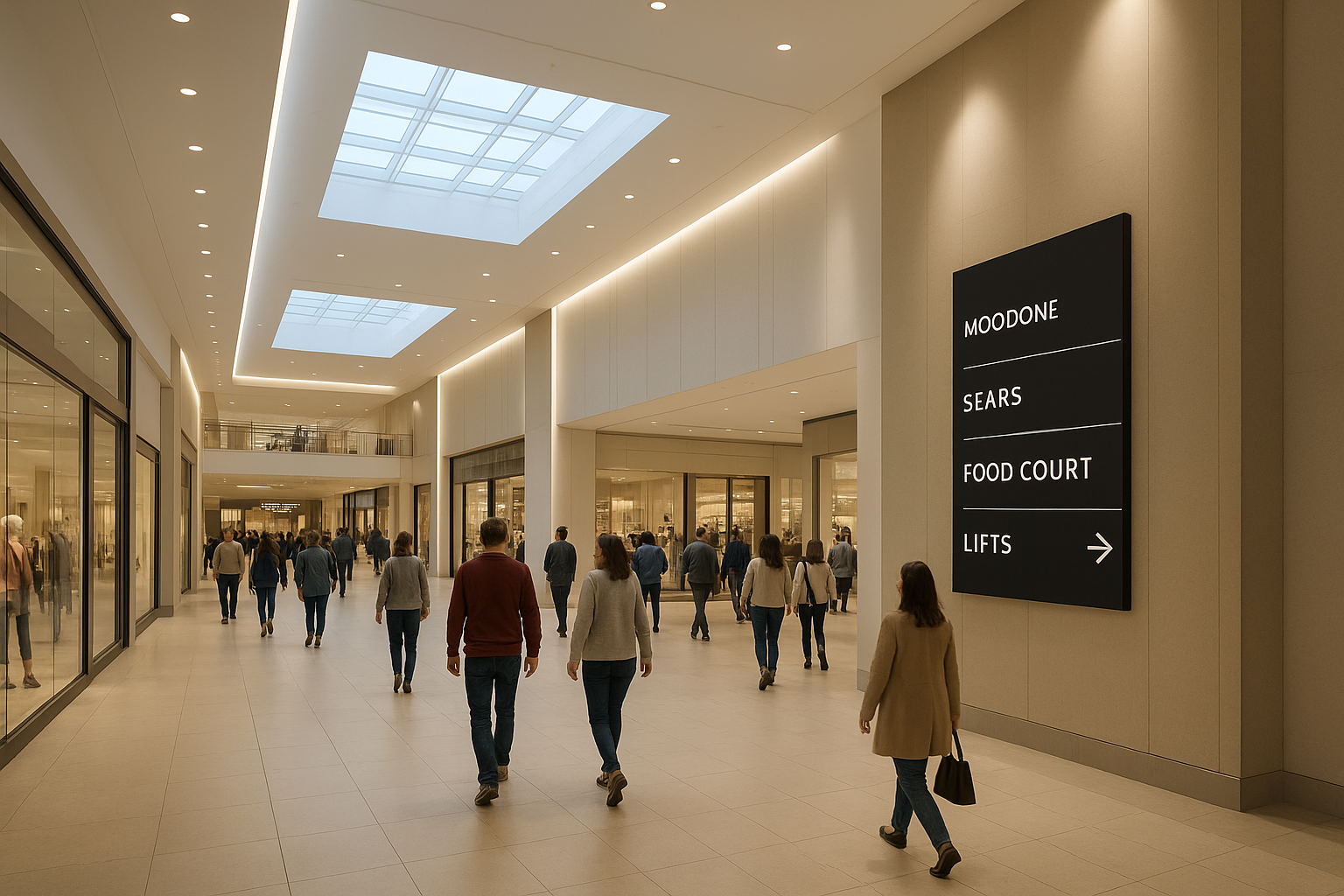

2.2 Main Entrance

• 1‑line recommendation: Blend diffuse ambient with glare‑controlled accents to highlight branding while managing eye adaptation.

• Why it works: Balanced layers reduce threshold glare; targeted accents lift signage without spill.

• Minimal ranges: 3000–3500K; CRI ≥80; aim for comfortable UGR via deep baffles/prismatic optics.

• Controls: Daylight‑linked dimming; schedule setbacks after hours.

• Install notes: Watch reflections on glazing; adjust aiming and consider slightly warmer CCT at night.

• Pros/Cons: Pros—comfortable arrivals, strong identity. Cons—glass reflections demand mock‑ups.

• Evidence: See principles for glare management and visual comfort summarized in Zumtobel’s lighting guidance PDF.

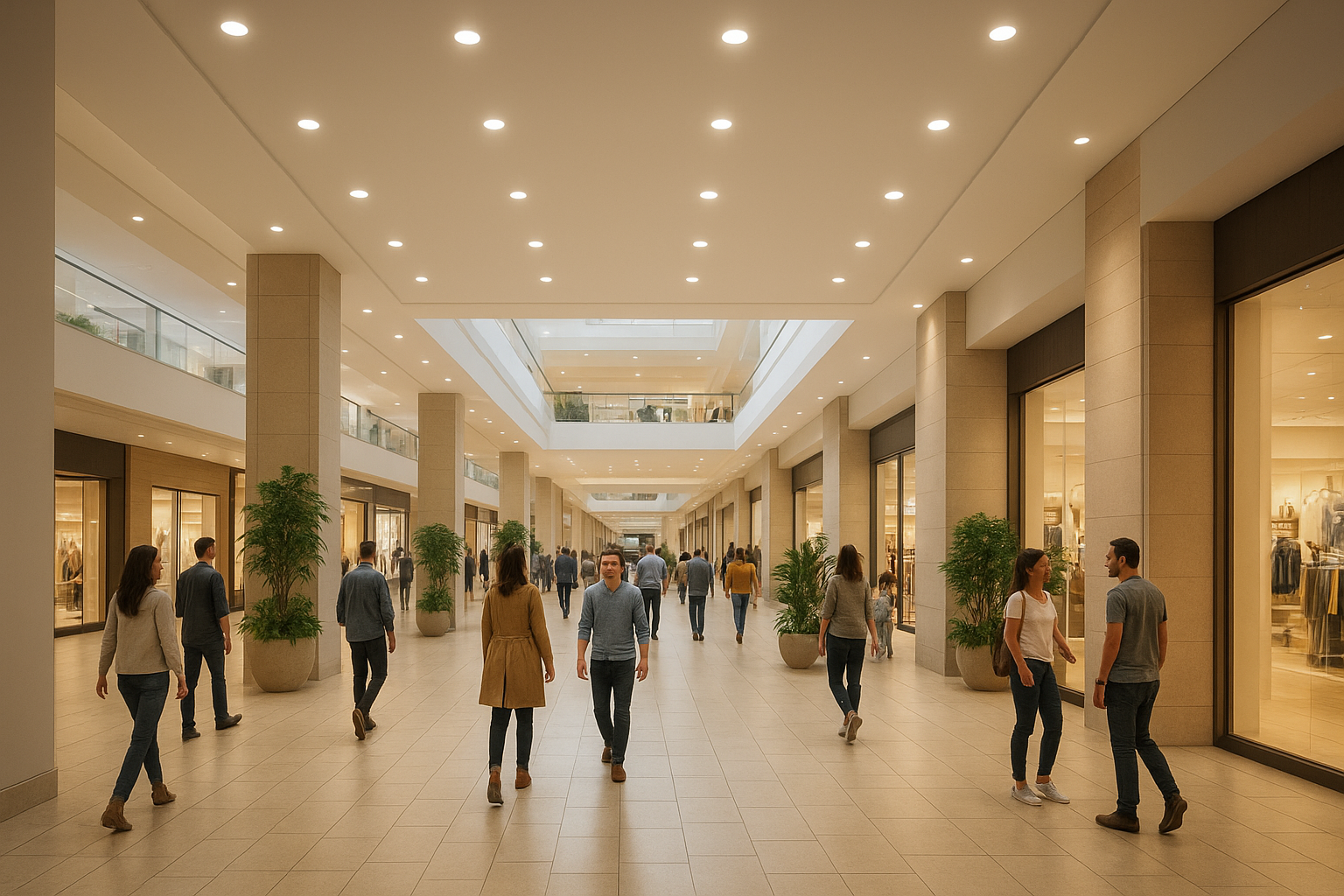

2.3 Corridors/Concourses

• 1‑line recommendation: Choose low‑glare linear or panel luminaires for uniform wayfinding at modest light levels.

• Why it works: Uniform ambient and bright verticals keep signage legible and circulation calm.

• Minimal ranges: 3500–4000K; CRI ≥80; select low‑UGR optics where feasible.

• Controls: Simple occupancy sensors reduce kWh during off‑peak hours.

• Install notes: Avoid over‑lumening—excessive brightness can make adjacent stores feel dim.

• Pros/Cons: Pros—efficient, easy to maintain. Cons—too much uniformity can feel flat without focal points.

• Helpful resource: For low‑glare panel options and selection considerations, see KEOU’s primer: LED panel lights—use cases and how to choose.

▋Soft CTA: Want a quick matrix of fixture families for public zones? Browse KEOU’s category pages for anti‑glare downlights and linear panels: Downlights, Panel lights.

3.0 In‑Store — Recommendations

Shoppers judge color and texture up close. Keep CRI high where it affects purchase decisions and use beams intentionally.

3.1 Fashion Sales Floor

• 1‑line recommendation: Deploy high‑CRI track accents (CRI ≥90) with narrow‑to‑medium beams (≈12–24°) on mannequins and feature walls.

• Why it works: Accurate color and sculpted contrast guide attention without glare overload.

• Minimal ranges: ~3000K for warmth and whites; CRI ≥90 (positive R9 preferred).

• Controls: Dimming per zone; occasional tunable white for seasonal schemes.

• Install notes: Build flexibility with track infrastructure; stock multiple beam options to avoid hotspots.

• Pros/Cons: Pros—vivid displays, agile merchandising. Cons—more aiming/maintenance than fixed ambient.

• Evidence: High‑CRI fashion accents are widely documented, e.g., Signify’s retail family: TrueFashion overview.

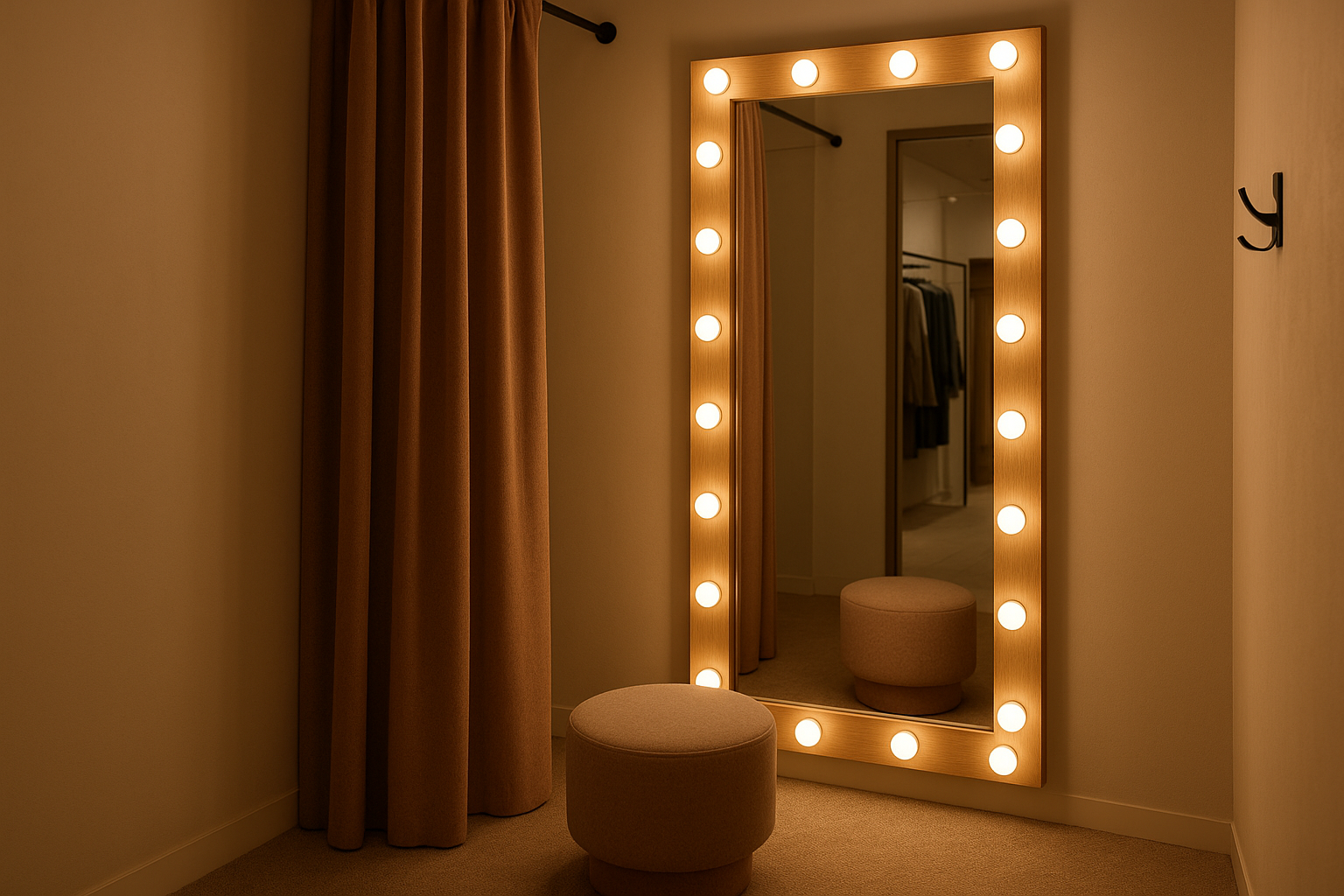

3.2 Fitting Rooms

• 1‑line recommendation: Provide flattering vertical light at mirrors with high CRI and neutral‑warm CCT to avoid shadows.

• Why it works: Multi‑angle vertical illumination supports natural skin tones and fabric evaluation.

• Minimal ranges: 3000–4000K; CRI ≥90.

• Controls: Dimming; optional tunable white for brand/skin‑tone presets.

• Install notes: Position sources to the sides/top of mirrors to prevent harsh facial shadows.

• Pros/Cons: Pros—better try‑on experience, fewer returns. Cons—more fixtures per room than single downlight.

• Evidence: See a concise explainer on color temperature context from Fagerhult: What is colour temperature and why it matters (2025).

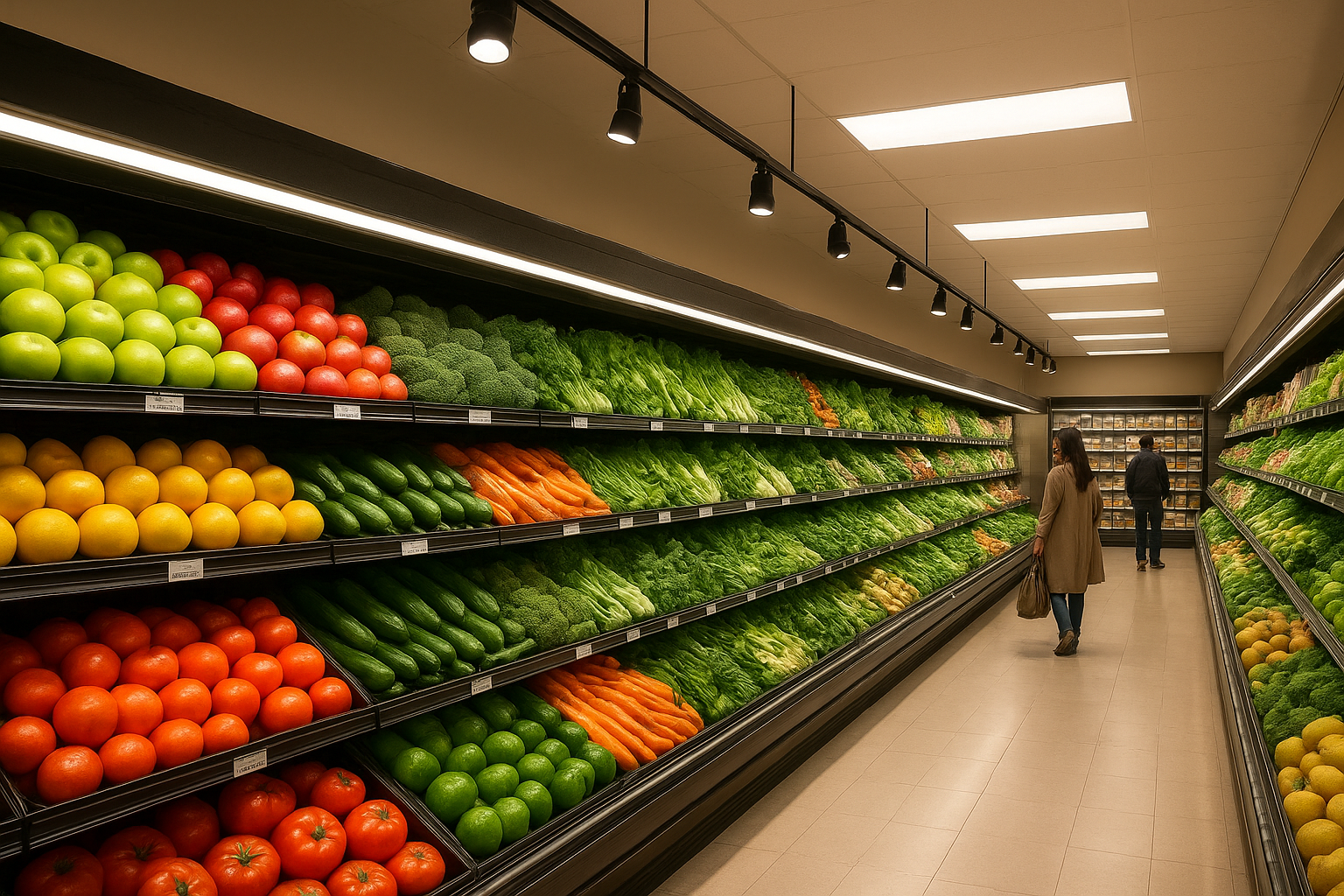

3.3 Supermarket / Food Court

• 1‑line recommendation: Use low‑glare panels for uniform ambient and add high‑CRI accents for produce and fresh food.

• Why it works: Comfortable ambient encourages dwell; selective accents lift freshness without glare on glossy packaging.

• Minimal ranges: Ambient 3000–3500K; CRI ≥90 for food displays.

• Controls: Schedules with after‑hours setbacks.

• Install notes: Choose microprismatic or low‑UGR optics to reduce visual fatigue.

• Pros/Cons: Pros—friendly, efficient lighting. Cons—avoid over‑accenting shiny surfaces.

• Helpful resource: See panel families used in retail contexts (general reference): Signify recessed panel ranges.

    ▋Note on brand fit: For teams needing customizable retrofits and anti‑glare visual merchandising without over‑specifying, KEOU’s breadth of options can be useful. Keep mentions neutral and evidence‑backed; evaluate alongside other vendors using the same criteria.

4.0 Parking & Back‑of‑House — Recommendations

Reliability and controls matter most: you want consistent visibility, safe movement, and strong energy savings.

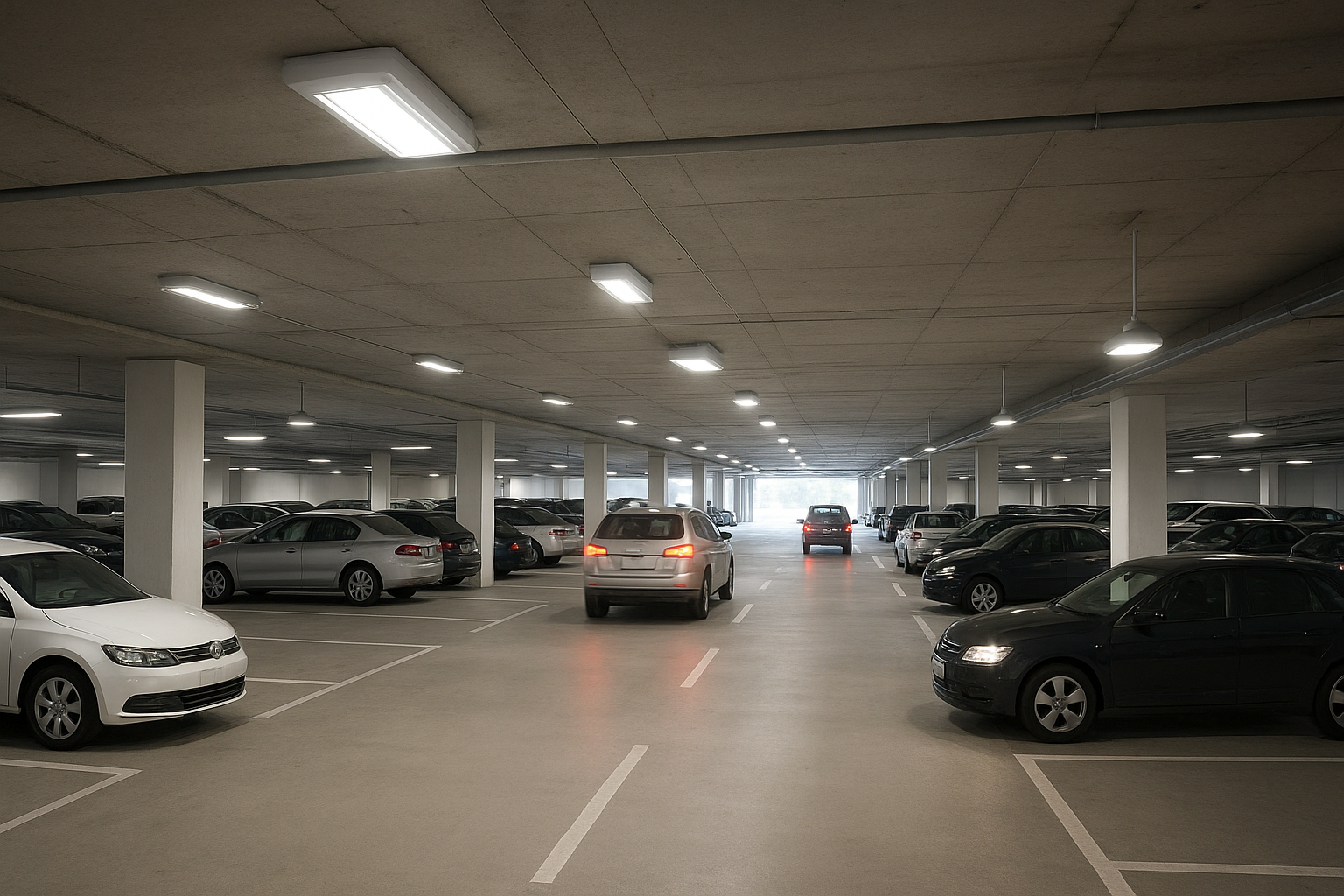

4.1 Parking Garage

• 1‑line recommendation: Specify efficient garage luminaires with occupancy/daylight controls per IES RP‑8 practice.

• Why it works: Maintained illuminance with motion‑based dimming cuts TCO while preserving safety.

• Minimal ranges: 4000–5000K; CRI per local code; ensure uniformity.

• Controls: Integral sensors or networked control with commissioning.

• Install notes: Verify sensor layout, veiling luminance, and uniformity; test scenes.

• Pros/Cons: Pros—big energy savings, safer perception. Cons—requires commissioning and periodic checks.

• Evidence: See the standard’s product page for scope and approach: ANSI/IES RP‑8 roadway & parking facilities.

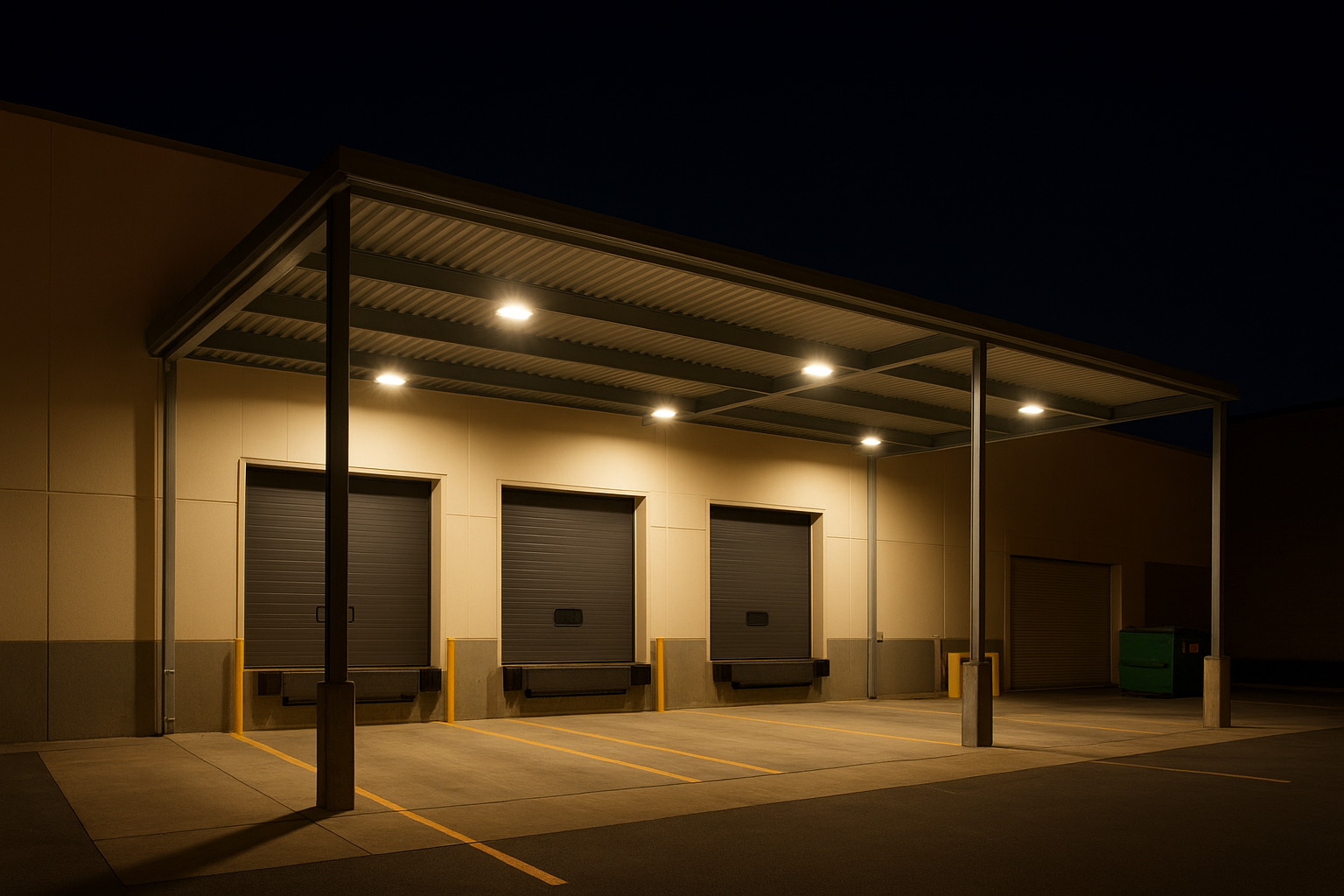

4.2 Loading Docks / Canopies

• 1‑line recommendation: Choose robust IP65–IP66, impact‑resistant luminaires with asymmetric optics for wet, high‑traffic areas.

• Why it works: Higher ingress protection and tough housings withstand wash‑downs and knocks.

• Minimal ranges: 4000–5000K; CRI ≥80; target IK10 where impacts are likely.

• Controls: Occupancy with fast ramp‑up; consider daylighting under translucent canopies.

• Install notes: Confirm mounting hardware, gasket materials, and cable routing.

• Pros/Cons: Pros—long service life, safer docks. Cons—higher upfront cost and weight.

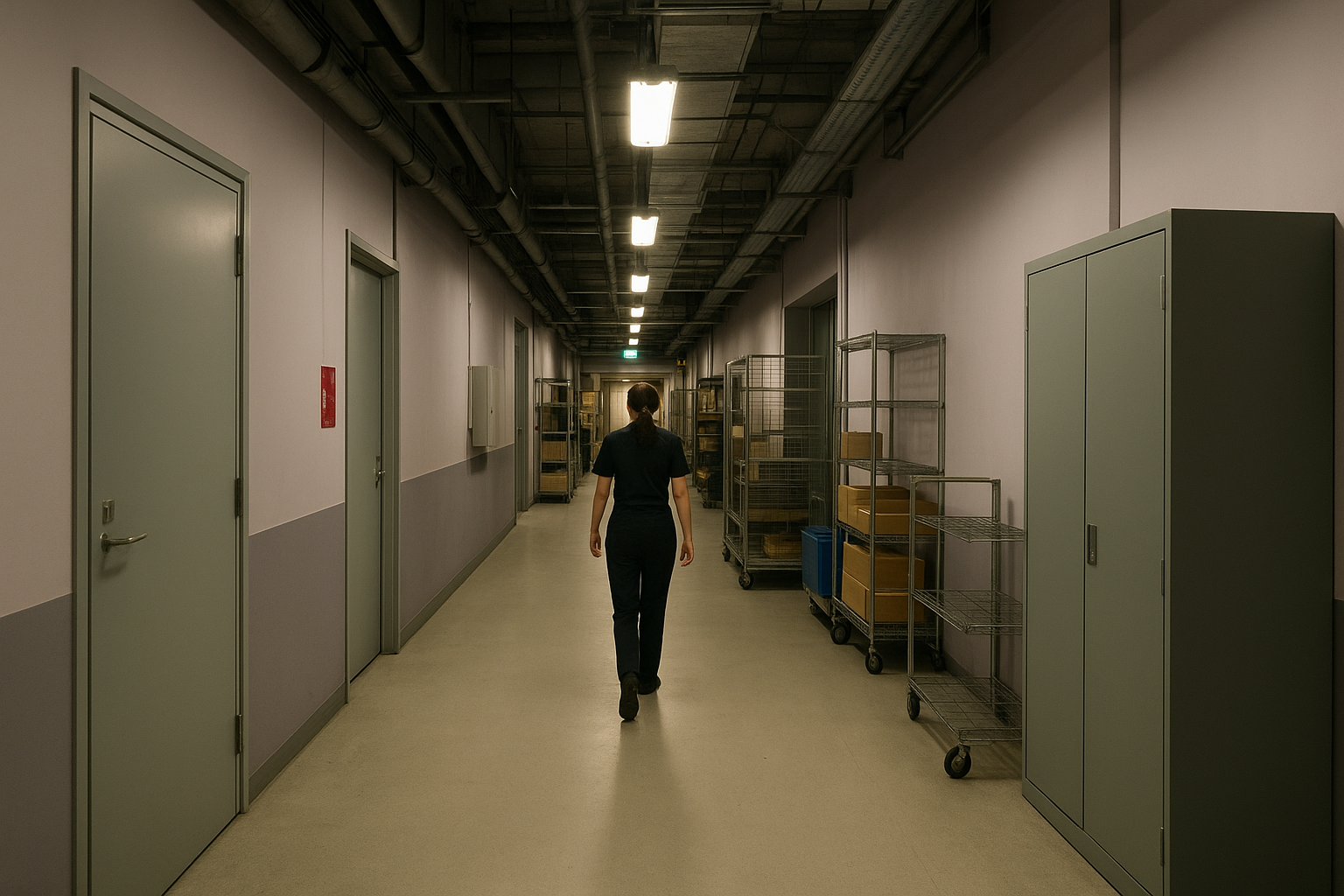

4.3 BOH Corridors / Storage

• 1‑line recommendation: Use durable linear/wrap fixtures with occupancy sensing to minimize maintenance.

• Why it works: Simple, efficient packages suit intermittent traffic patterns.

• Minimal ranges: 3500–4000K; CRI ≥80.

• Controls: Standby dim levels with quick‑on behavior.

• Install notes: Standardize SKUs across back‑of‑house for easy spares.

• Pros/Cons: Pros—low running cost. Cons—avoid over‑illumination in narrow aisles.

    ▋Tip: For exterior approaches and façades near parking, apply DarkSky‑style shielding and warmer CCTs where feasible to reduce uplight and glare.

5.0 Fixture Types by Area — Quick Comparison (Compact)

A compact index for quick reference. Each row is short; fuller, actionable notes remain in the area sections above.

(Notes: This compact index replaces the long multi‑column table; refer to each area’s section above for the fuller recommendation and evidence links.)

6.0 Pricing Notes (Subject to Change)

• 2×2 LED panels: Contractor‑grade units from big‑box retailers often land in economical per‑fixture ranges; confirm live pricing on publication day and document the date.

• Retail track heads: Wide spread by brand/CRI/beam control; expect mid‑range costs that scale with optical quality and CRI ≥90.

• Garage luminaires/UFO high bays: Prices vary by lumen class, optics, and controls integration; multi‑packs can reduce unit cost.

    ▋All prices fluctuate by region, brand, and supply conditions—treat these as directional and verify before procurement.

7.0 Compliance & Standards Note

• Indoor areas (foyers, corridors, sales): Use concepts and quality factors from EN 12464‑1:2021 for illuminance, glare (UGR), and uniformity; confirm numeric targets and measurement conditions in the adopted local version of the standard.

• Parking facilities: Follow the relevant chapters of ANSI/IES RP‑8 and screen options against recognized efficiency criteria (e.g., DOE/FEMP) where applicable.

• Exterior approaches/façades: Favor fully shielded distributions and minimal uplight per DarkSky‑style principles; warm CCTs can reduce sky glow and discomfort glare.

• Always verify local code requirements and amendments—they prevail over general guidance.

8.0 FAQs

Q1 What CRI should I use for fashion?

• Use CRI ≥90 with positive R9 for accurate reds and skin tones. Pair with ~3000K accents for warmth and vivid whites; keep ambient softer to let accents lead.

Q2 How do I cut glare in atriums?

• Use deep‑baffle or louvered downlights, layer vertical wallwashing, and dim via daylight sensors. Aim carefully to avoid hotspots on glossy surfaces.

Q3 What color temperature works best in fitting rooms?

• Neutral‑warm 3000–4000K with CRI ≥90. Position vertical lighting at the mirror’s sides/top for shadow‑free viewing; add dimming or tunable presets.

Q4 How can I save energy in parking and back‑of‑house?

• Adopt occupancy/daylight controls with quick‑on behavior and commission scenes. Choose efficient luminaires and verify uniformity so you can safely dim when unoccupied.

Q5 Any quick tips for retrofit vs new‑build?

• Retrofit: prefer fixtures with compatible mounts/adapters and integrated drivers to shorten downtime.

• New‑build: consider networked controls, tunable white in key zones, and standardized SKUs for long‑term maintenance.
