KEOU-TD011
Aluminium
10W 15W 20W 25W 30W 40W
| SKU: | |
|---|---|
| Availability: | |
| Power | Size | Hole size |
| 10W | Φ110x46mm | Φ75-100mm |
| 15W | Φ130x46mm | Φ90-120mm |
| 20W | Φ160x48mm | Φ120-150mm |
| 25W | Φ180x53mm | Φ140-170mm |
| 30W | Φ200x53mm | Φ160-190mm |
| 40W | Φ230x58mm | Φ190-220mm |
Deep anti-glare design
Protect your eyes; reflector cup color is up to you.

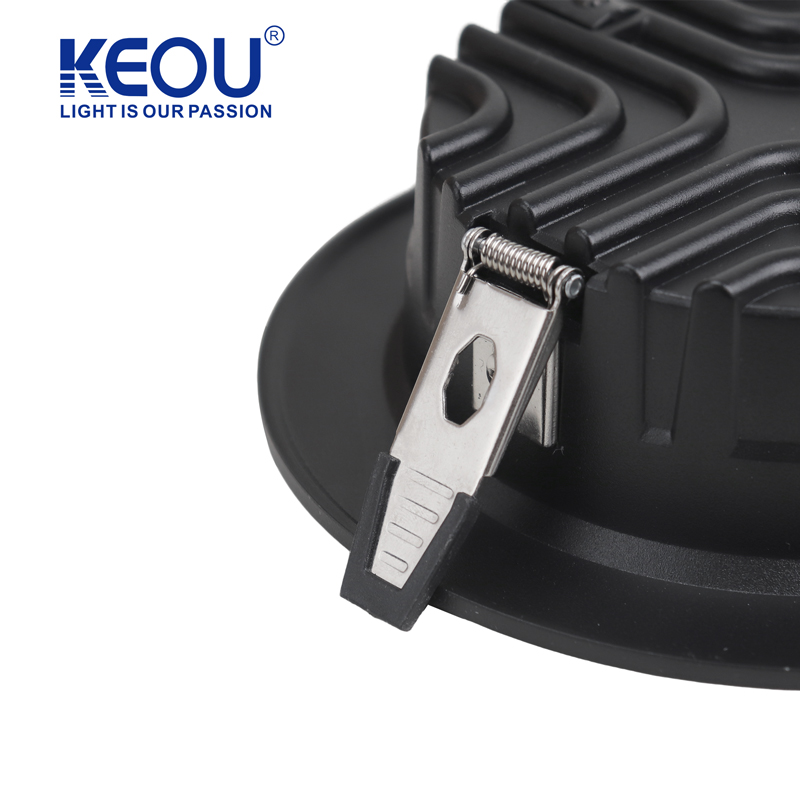

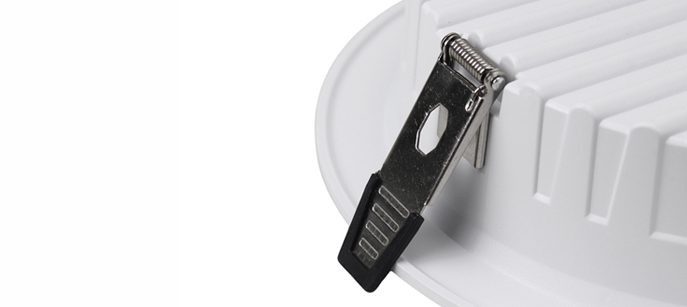

Upgraded Spring
Stainless steel clamping spring, corrosion-resistant, impact-resistant, durable, safe and stable.

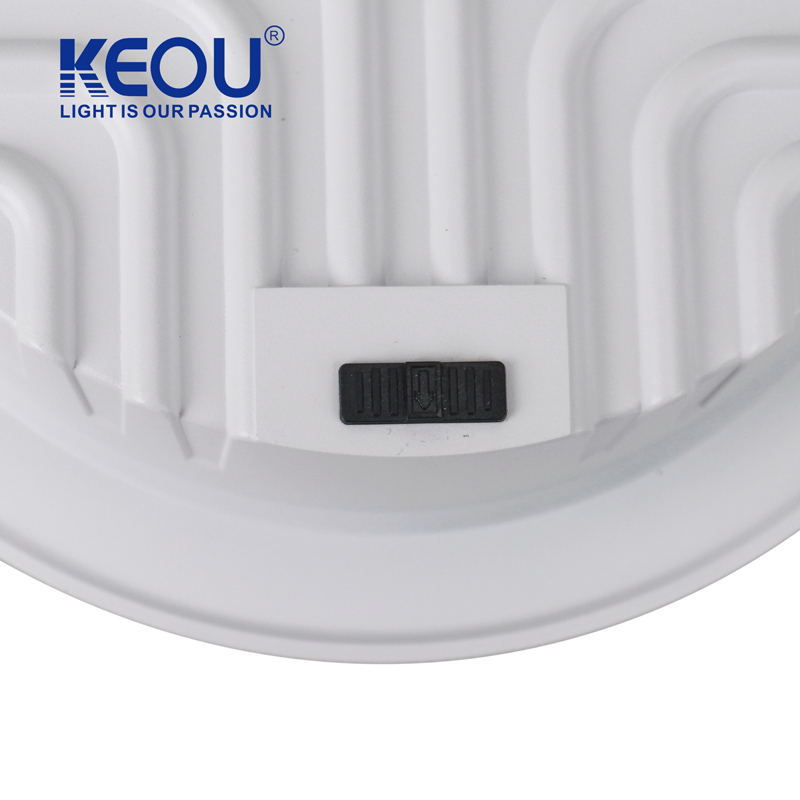

Tri-color DIP switch design
The tri-color DIP switch design can reduce your inventory pressure.

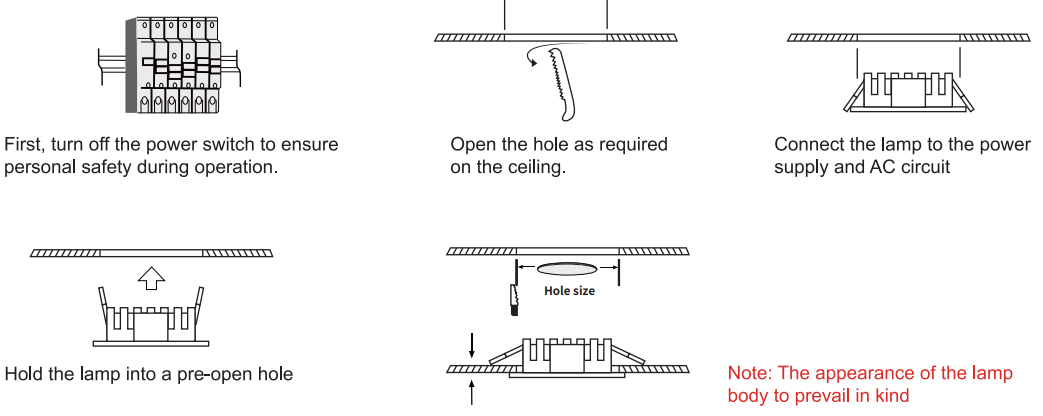

First, please turn off the power switch to ensure personal safety during operation.
Drill an opening in the ceiling as needed.
Connect the light fixture to the power supply and AC circuit.
Place the light fixture into the pre-drilled opening.
Note: The actual appearance of the light fixture may vary.
