Lever-Type Quick-Connect Terminals in LED Lighting

Think of a lever-type quick-connect terminal as a door for wires. Instead of screwing a conductor tight against a terminal, you lift a small plastic lever, slide the stripped wire in, and close the lever. A stainless-steel spring does the clamping — consistently, every time, with the same defined force. That single mechanism has quietly become one of the most useful tools an electrician can carry on an LED lighting job.

LED lighting installation is faster, denser, and more rework-heavy than traditional lighting work. Fittings are compact, junction boxes are tight, drivers are small, and field changes happen often. Lever-type quick-connect terminals address exactly those pressures. This guide explains the role they play across a typical LED installation and the concrete advantages that keep contractors and distributors choosing them.

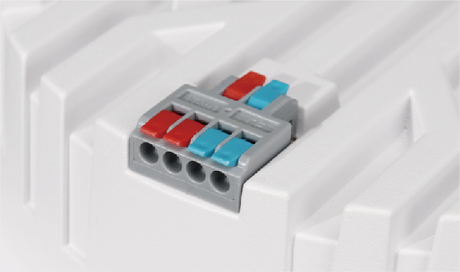

1. How a Lever Clamp Works — and Why It Fits LED Wiring

The core is simple. A lever-actuated spring clamp works in three motions: lift the lever to open the contact, insert the conductor, then close the lever to trap the wire under spring pressure.

• Lift — the lever opens the spring contact, creating a tool-free access point.

• Insert — the stripped conductor seats fully inside the terminal body; no exposed copper should remain outside.

• Close — the lever releases the stainless-steel spring, which clamps the wire with a consistent, repeatable force.

That defined clamping force matters more than most installers expect. A screw terminal's grip depends on the torque the installer applies — and torque varies by person, tool, and fatigue. A lever spring removes that variable. The result is a connection whose contact pressure is identical whether it was terminated at the start of a shift or the end of one.

For LED lighting, the mechanism also solves a recurring pain: drivers and fixtures often use fine-stranded wire, which is easy to crush or cut under a screw head. A lever clamp traps fine-stranded copper cleanly without damaging it. Ferrules are often recommended for very fine wire, but solid, stranded, and ferruled conductors all seat reliably in a lever-type connector.

Key Takeaway: A lever clamp gives a repeatable, torque-independent connection. That consistency directly improves reliability in the many small connections that make up an LED lighting installation.

2. The Role of Quick-Connect Terminals Across an LED Installation

Lever-type quick-connect terminals aren't a single-point tool. They serve several distinct jobs during an LED lighting project:

LED driver wiring. Drivers sit inside small enclosures or junction boxes where space is scarce. Tool-free levers let you land line, neutral, and secondary-side wires quickly in awkward angles — no screwdriver against a wall of a confined compartment.

Junction-box connections. LED circuits rely on many branch-wire connections — switches to drivers, drivers to fixtures, daisy-chained luminaires. Color-coded levers on 2-, 3-, and 5-way connectors make quick work of these splices.

Retrofit and field changes. Repositioning fixtures or swapping a driver mid-project is common. Because a lever terminal reopens without damaging the conductor, you can pull a wire out, re-terminate it, and land it elsewhere — no cut-back, no scrap.

LED strip and modular lighting. Strips frequently need short tap connections at cut points and power injection loops. A small lever connector is ideal where you need a secure but reversible point for connecting LED strip lights.

In all four cases, the role of the terminal is the same: make a secure, inspectable, reusable connection as fast as possible, without specialized tooling or torque discipline.

3. The Advantages That Matter on the Job

Contractors and distributors choose lever-type quick-connect terminals for reasons that translate directly to cost and reliability.

Tool-free speed. No screwdriver, no torque driver, no ferruling press for stranded wire in most cases. Each connection is a three-step physical motion. On jobs with dozens or hundreds of connections — a common reality in commercial LED lighting — the time saving compounds fast.

Reusable and rework-friendly. Screw terminals can chew up a conductor when re-terminated repeatedly, forcing a stripped-back cut and shorter wire. A lever clamp releases cleanly, so troubleshooting, driver swaps, and layout changes don't waste wire or time.

Solid and stranded compatibility. A single lever connector handles solid, stranded, and fine-stranded copper across a wide gauge range — roughly 0.14–4 mm² for fine-stranded and 28–12 AWG for solid wire at typical ratings. For example, WAGO's 221-series lever splicing connectors are commonly rated 450 V / 32 A under IEC/EN and 600 V / 20 A under UL 486C. That versatility reduces the inventory of connector types you need on the van.

Vibration and thermal resilience. LED drivers run warm, and fixtures in commercial spaces experience vibration and thermal cycling. Screw connections can loosen under those conditions if undertorqued. A spring clamp holds its grip because it applies continuous pressure rather than relying on friction from a tightened screw.

Inspectable and safe. The lever position gives a clear visual open/closed signal, so a quick glance verifies a completed connection. Flame-retardant housings with UL94 V-0 ratings and secure spring retention reduce the chance of arcing and pull-outs.

4. Lever vs Push-In vs Screw for LED Wiring

Push-in terminals win on pure speed for solid or pre-ferruled wire. Screw terminals remain familiar and versatile. But for the mix of solid and stranded wire, tight spaces, and regular rework found in LED lighting installations, a lever-type quick-connect terminal balances speed, reusability, and reliability better than either alternative.

5. Compliance and Selection for UAE and GCC Projects

LED lighting work in the UAE runs under IEC-based low-voltage installation rules, with local wiring regulations from emirate authorities such as the Etihad Water and Electricity wiring regulation book (nominal 240/415 V, IEC-based). For connecting devices, the relevant standard is the IEC 60998 family — and specifically IEC 60998-2-2, which covers screwless-type connecting devices for low-voltage household and similar circuits. GCC member states have adopted this standard (for example, GSO IEC 60998-2-2 across the Gulf), so specifying a connector that meets it supports project conformity.

Ratings also vary by certification family. A lever splicing connector in the WAGO 221 class, for instance, is typically rated 450 V / 32 A under IEC/EN and 600 V / 20 A under UL 486C. When you select a connector, confirm:

• Wire gauge range covers the conductors you use (solid vs stranded vs fine-stranded).

• Rated voltage and current exceed your LED circuit requirements.

• Certifications match project compliance needs (IEC 60998 / EN 60998, UL 486C where required, UL94 V-0 flame rating).

• Strip length matches the connector so no bare copper is exposed.

Verifying these basics upfront avoids compatibility problems further down the line.

6. A Selection Checklist for LED Lighting Jobs

Use this to standardize what you specify:

• Confirm the wire types (solid, stranded, fine-stranded) and gauge range you actually run.

• Match rated voltage and current to the circuit, not just to "LED compatible."

• Choose the bay count to suit the connection — 2-way for through-junctions, 3- or 5-way for splices and tap-offs.

• Verify flame-retardant material and relevant certification for your market.

• Confirm a clean strip-length fit and repeatable open/close operation.

Pro Tip: Keep a consistent brand and rating family across your connectors. Fewer variants on the van mean fewer mistakes on the ladder and simpler stock control.

7. Why This Matters for Your Next Project

Lever-type quick-connect terminals are not a gimmick — they are a practical answer to the speed, space, and rework pressures that define modern LED lighting installation. They deliver repeatable clamping force without torque discipline, handle the conductor types LED fixtures actually use, and reopen cleanly when a layout changes. For contractors chasing faster RFIs-free installs and distributors managing fewer returns, that combination pays for itself.

When you specify a full LED lighting system, the quality of the fixtures matters as much as the connectors. KEOU Lighting, a semiconductor-driven LED manufacturer with 13 years of factory experience, offers compliant, customizable LED lighting solutions across indoor, industrial, and outdoor applications — engineered to make installation straightforward and reliable. For guidance on LED panel light installation methods by ceiling type, or practical advice on commercial lighting installation methods, the engineering team is ready to help.

If you'd like a spec sheet, certification list, or a sample to test against your existing wiring practice, contact the KEOU engineering team — they can also walk through how to connect LED strips and drivers with the right quick-connect approach for your project.
