Author: Huang Publish Time: 11-02-2026 Origin: Site
Coastal sites expose luminaires to salt spray, wind-driven rain, abrasive airborne particles, and more frequent electrical transients. This checklist is written for procurement/specification staff and electrical contractors to help choose, specify, install, and maintain IP65/IP66 LED floodlights for coastal and high‑corrosion environments.
▉QUICK CALLOUT — one-sentence orientation
IP measures ingress (solids/water) only; it does not measure corrosion resistance. Always pair IP/IK requirements with ISO 12944 corrosion categories and salt‑spray validation (ISO 9227/ASTM B117).
Yes for ingress control; no as a standalone guarantee for corrosion durability. Prefer IP66 where fixtures face wind‑driven spray, washdown, or heavy rain. Reference: IEC 60529 (IP Code).
Installer tip: If you expect regular washdown or wind‑driven spray, specify IP66 and require the supplier’s IP test report (nozzle, pressure, orientation, sample ID).
Key point: Combine mechanical, corrosion and electrical specs — don’t treat IP alone as acceptance.
Housing/materials: marine‑grade aluminum with a duplex coating or 316 stainless steel; A4/316 fasteners.
Surge baseline: driver immunity ≥6 kV L–L / 10 kV L–PE plus external EN/IEC 61643‑11 Type 2 SPD at pole (10 kA baseline); upgrade to 20 kV external SPD for exposed/high‑risk sites and coordinate with panel Type 1 protection.
Temperature: ambient operating range −40°C to +50°C (minimum); require driver cold‑start and L70 data at project ta.
Coatings: define “marine‑grade” by ISO 12944 categories (C4/C5/CX); request coating system DFT and OEM datasheets.
Spec copy (paste into tender):
"Luminaire housing: marine‑grade aluminum with duplex coating or 316 stainless steel; all external fasteners A4/316. Provide coating system DFT and ISO 9227 panel test reports as evidence. Driver shall show IEC 61000‑4‑5 immunity ≥6 kV L–L / 10 kV L–PE. Supply external EN/IEC 61643‑11 Type‑2 SPD at pole junction. Rated ambient ta −40°C to +50°C."
What to ask for

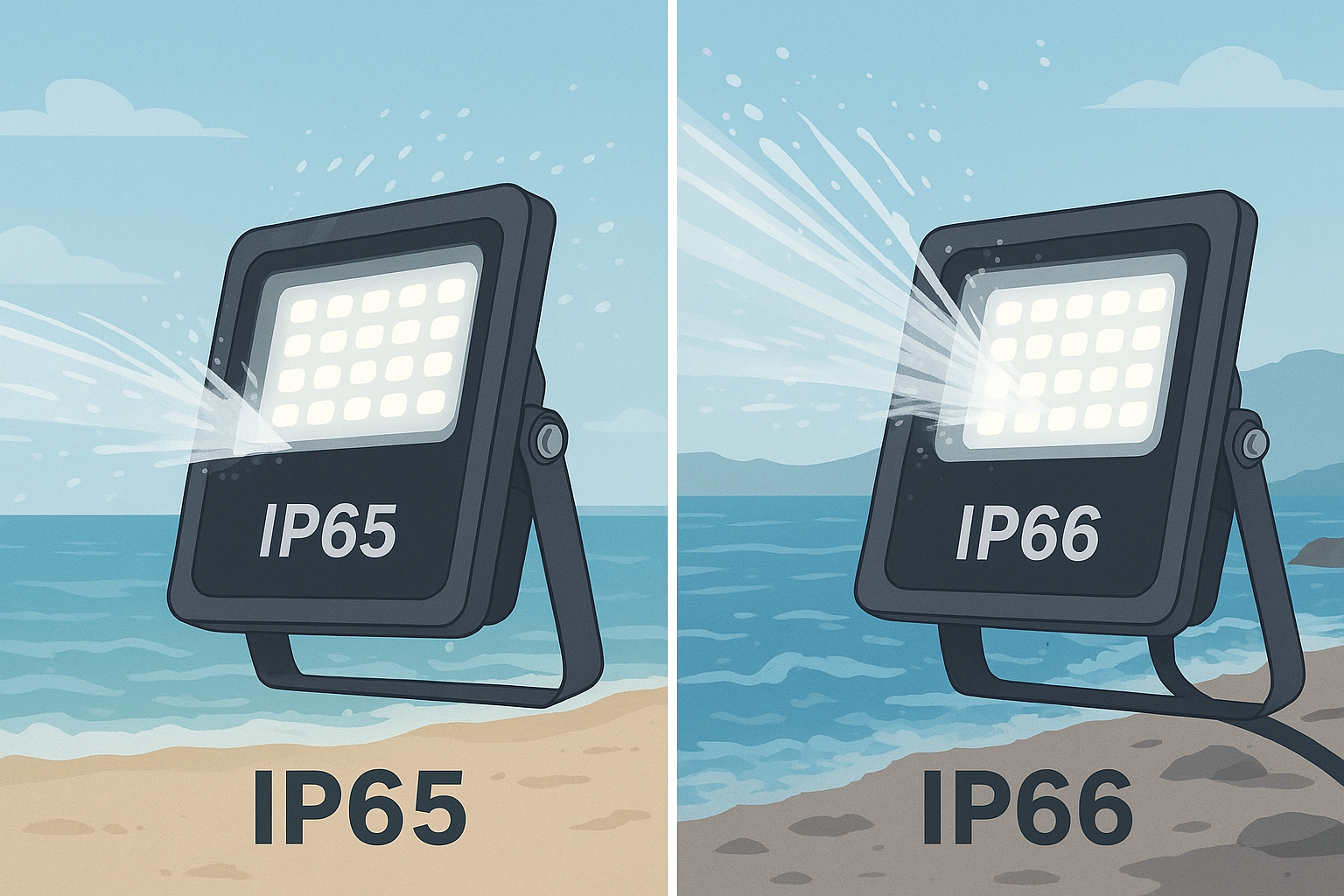

IP65: dust‑tight, resists water jets (useful for sheltered coastal locations).
IP66: stronger water‑jet resistance (preferred for open coasts, exposed poles, and washdown).
Why it matters
IP alone does not address corrosion or coating breakdown; it only certifies resistance to solids/liquids per IEC 60529.
What to require in specification
State the required IP number and ask for the supplier’s IP test report (nozzle size, pressure, duration, sample ID, test date).
On‑site check
Verify gaskets are seated, torque pattern followed, and no visible seal pinch or extrusion after mounting.
Key point
Specify IK based on site abuse risk: IK08 (~5 J) for general use; IK09–IK10 where reachable, ports, or stadiums.
Why it matters
IK rating reduces risk of cracked diffusers or housings that create corrosion initiation points.
What to require
Include IK threshold in tender and request IK test evidence tied to the tested construction (diffuser/mounting).
Installer check
After installation, inspect for hairline cracks and replace damaged parts; recoating may be required after repairs.
Plain English
Salt‑spray tests (NSS/AASS/CASS) are comparative accelerations for coatings — good for supplier comparison, not exact life prediction.
Risk bands (procurement guidance)
Urban set‑back: 720–1,000 h NSS
Seafront (no direct splash): 1,000–2,000 h NSS
Exposed splash / offshore: 2,400–4,000 h NSS
What to ask for
ISO 9227 panel reports with acceptance criteria (e.g., no red rust, max scribe creep), lab name, sample ID, and DFT pre‑test.
On‑site note
Salt deposits should be removed during seasonal maintenance; panel test evidence remains the auditable basis for coating claims.
How to use it
Map the project to ISO 12944 categories: C4 (high), C5 (very high), CX (extreme/offshore).
Typical system examples (procurement checks)
C4: zinc‑rich primer + epoxy intermediate + polyurethane topcoat.
C5/CX: glass‑flake or high‑build epoxy + polyurethane/fluoropolymer topcoat; prefer systems validated by cyclic tests for CX.
Authoritative reference: Hempel ISO 12944 guidance.
Spec copy (coatings):
"Coating system to meet ISO 12944 category C5 (or CX for offshore). Provide OEM system datasheet, DFT values, adhesion pretreatment records, and representative ISO 9227 panel reports."
Driver vs external SPD (short)
Driver immunity is tested per IEC 61000‑4‑5 (e.g., 6 kV L–L / 10 kV L–PE). External SPDs are specified per EN/IEC 61643‑11 (Type 1/2/3).
Baseline and high‑risk rules
Baseline (urban/low lightning risk): external Type 2 SPD ≈10 kA, driver immunity per IEC 61000‑4‑5.
High risk (open coast, tall masts, stadiums): upgrade to 20 kV class external SPDs and coordinate with upstream Type 1 protection.
Procurement items to request
SPD location (panel → pole → fixture), nominal discharge current, clamping voltage (Uc), and evidence of grounding/continuity testing.
Reference guidance: DEHN LED outdoor lighting guide.

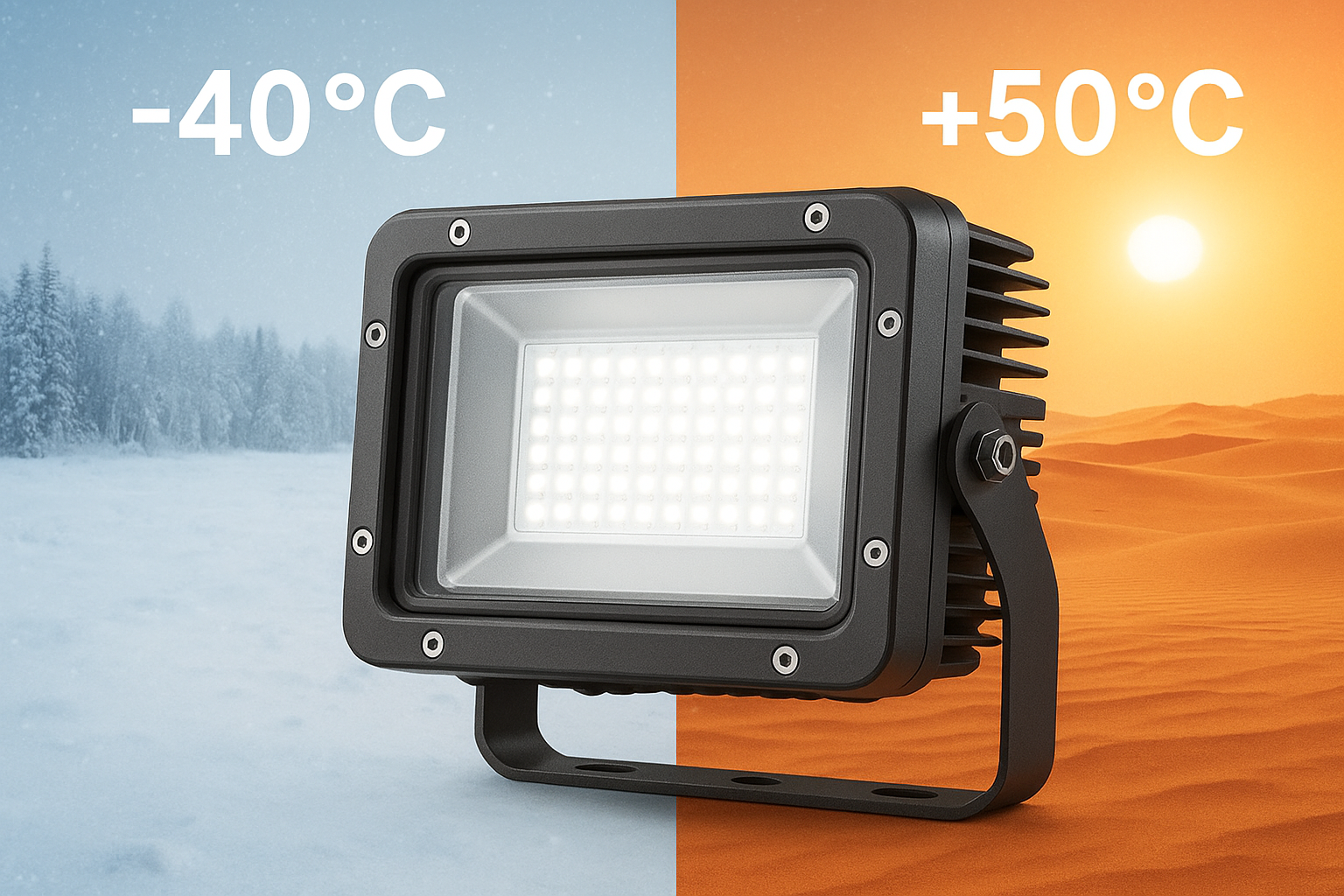

What to require
Rated ambient (ta): minimum −40°C to +50°C for coastal outdoor floodlights. Require cold‑start capability and L70 data at project ta.
Installation note
Ensure housings provide adequate heat sinking; avoid enclosed boxes that raise driver temperature beyond rated ta.
Standards reference: IEC 60598‑1 (ta marking).
Practical rule
Use A4/316 stainless fasteners and brackets in C5/CX zones. Where dissimilar metals are used, provide insulating barriers or galvanic mitigation documentation.
Procurement clause (copy):
"All external fasteners and brackets in C5/CX environments shall be A4/316 stainless steel; where mixed metals are necessary, provide insulating barriers and documented galvanic mitigation."

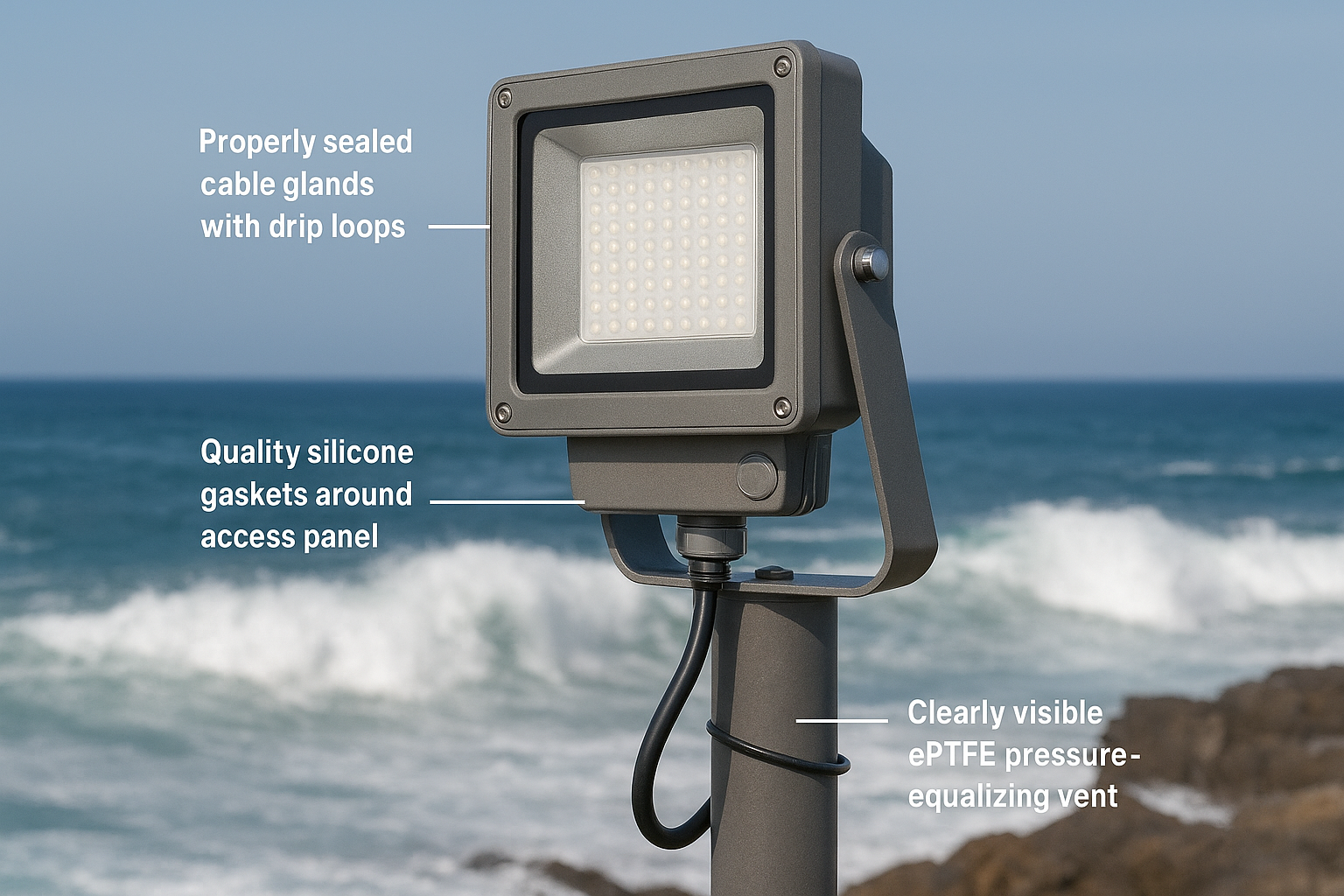

Installer best practices
Use quality silicone gaskets/O‑rings; control torque sequence and document torque values. Re‑torque after thermal cycles.
Fit IP‑rated cable glands with strain relief; include drip loops and seal unused openings.
Use ePTFE pressure‑equalizing vents to reduce condensation while preserving ingress protection (vendor guidance: GORE protective vents).
Maintenance program
Seasonal inspections for salt deposits, coating damage, fastener corrosion, gasket condition, SPD indicator status, and electrical continuity. Keep spare gaskets/fasteners and touch‑up paint for immediate repairs.
GORE vents reference: https://www.gore.com/resources/gore-protective-vents-lighting-enclosures
Short answer: Yes for ingress protection but not for corrosion; pair IP66 (preferred) with a corrosion strategy tied to ISO 12944.
Short answer: Yes for seafront or splash zones—specify 316 stainless or duplex‑coated marine aluminium and A4/316 fasteners to match the ISO 12944 category.
Short answer: Use a 10 kV/Type‑2 baseline and upgrade to 20 kV (with upstream Type‑1 coordination) for exposed coasts or tall masts; reference driver immunity per IEC 61000‑4‑5.
Short answer: Specify at least −40°C to +50°C and request the luminaire ta rating and driver cold‑start/L70 data.
