Ultra-thin 25mm Thickness Outdoor Led Flood Lights

Features:

Smaller size reduces shipping costs.
Heat dissipation: Multi-chip heat dissipation provides strong pressure and shock resistance.
Casing: Highly thermally conductive die-cast aluminum, high temperature resistant.
High-quality LED chips ensure uniform light emission and long life.

Model:
KEOU-FL34
Material:
Aluminium
Wattage:
10W 20W 30W 50W 100W 150W 200W 300W 400W
Thickness:
25mm

SKU:
Availability:



Inquire

Specifications

Power	Light Effect	Size(mm)	Beam Angle	Luminous flux
10W	100lm/W	118x90x25mm	120°	1000lm
20W	100lm/W	138x113x25mm	120°	2000lm
30W	100lm/W	148x123x25mm	120°	3000lm
50W	100lm/W	178x152x25mm	120°	5000lm
100W	100lm/W	218x182x25mm	120°	10000lm
150W	100lm/W	238x192x25mm	120°	15000lm
200W	100lm/W	238x212x25mm	120°	20000lm
300W	100lm/W	415x310x25mm	120°	30000lm
400W	100lm/W	480x365x25mm	120°	40000lm

Product Details

Why choose aluminum casting housing？

●Heat dissipation: Cools fast, cuts light decay, extends lifespan.

●Strength: Resists impact/deformation, stands outdoor collisions & wind pressure.

●Weather resistance: Surface-treated for UV, corrosion, rain & moisture protection.

特点2-铝架

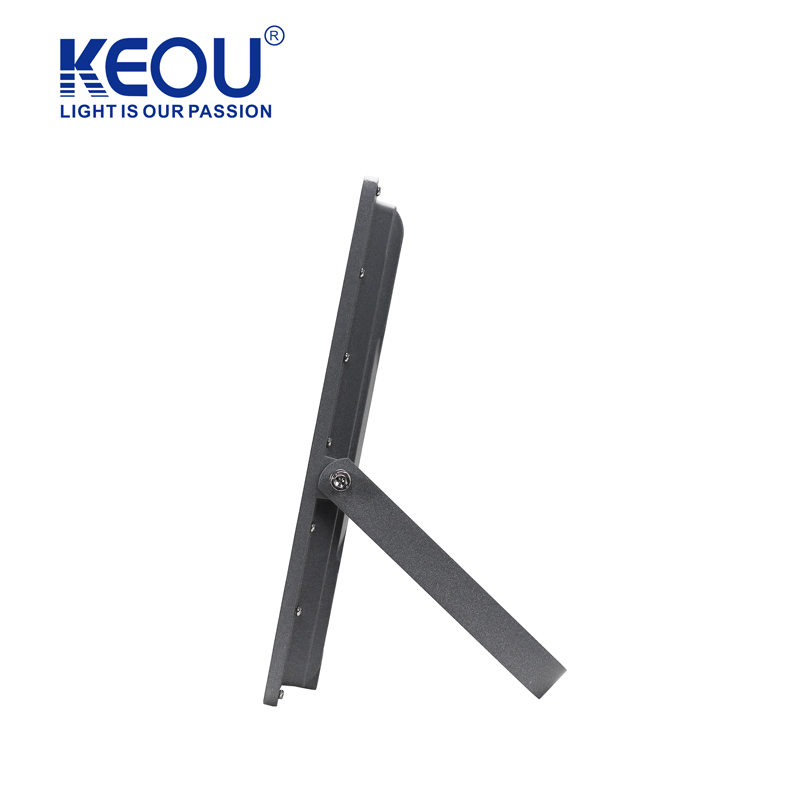

Advantages of detail upgrades

●Precise Angle Adjustment: Scale shows tilt angle, no guesswork, quick target alignment.

●Adjustment Stability: Plastic spacer locks angle, prevents bracket loosening and mislighting.

●Protective Components: Spacer cushions joint friction, reduces metal wear, extends lifespan.

Tempered Glass Floodlight Shade

●Impact Resistance

●High Light Transmittance

●Weather Resistance

●Easy Cleaning

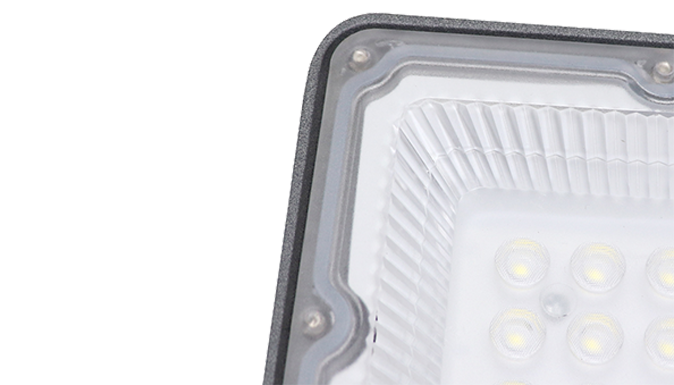

特点3-芯片

Installation method

Perfectly integrated with outdoor lighting environments

Outdoor lighting fixtures feature a variety of mounting options, adaptable to diverse outdoor settings, including courtyards, plazas, and building facades. Each of the three core mounting methods offers both practicality and environmental adaptability.

Ceiling-mounted: Wide coverage, illuminating courtyards and porches.Saves space, seals against rain and dust, and is suitable for villas, courtyards, and storefronts.
Floor-standing: eliminating the need for complex tools and drilling holes that damage the structure. Stable on irregular surfaces like grass and stone slabs, making it ideal for temporary installations like open-air markets and camping.
Wall-mounted: Mounts on walls, saving space, and is suitable for narrow fences and building facades. Adjustable angles provide precise illumination of billboards and landscapes, and weather-resistant and durable, making it suitable for residential fences and commercial building facades.
