Retail track lighting does two jobs well: it creates contrast where you need it (so products feel intentional, not flat), and it stays flexible when the floor plan changes.
If you’re selecting LED track light for retail stores in the US, treat it as a system decision—not a single-fixture decision. The track standard, optics, glare control, and dimming compatibility will determine whether the store looks premium…or just bright.

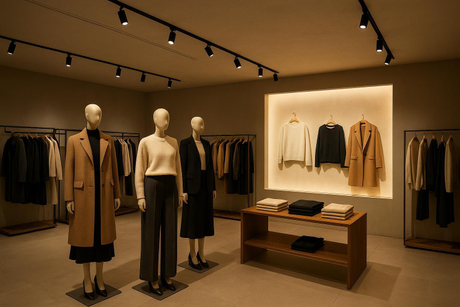

Good retail track lighting design starts with one principle: don’t light the ceiling—light the merchandise.
When you’re trying to make one zone stand out, contrast matters more than raw lumens. Lighting education sources commonly describe a ladder of contrast ratios—for example, a 5:1 ratio creates a distinct focal area, and 10:1 reads as a strong focal accent (see Lighting Design Lab’s article on accent lighting contrast ratios (5:1, 10:1, 15:1)).
Pro Tip: If everything is “accented,” nothing is accented. Pick the 10–20% of the store that should win attention first (window, mannequins, hero wall, featured table), then build the rest around it.
Before you touch a spec sheet, decide three things.
1) What are you lighting? Apparel and cosmetics punish poor color accuracy and glare on mirrors. Jewelry and glass displays punish reflected glare and often want tighter beams. General merchandise usually needs consistent coverage more than drama.
2) What’s your ceiling height and track position? Lower ceilings tend to work with medium optics and lower-output heads; higher ceilings often need tighter optics (or a suspended track) so the light still has “punch” on the merchandise.
3) Where are the zones? At minimum, think in four zones: perimeter walls/shelving, center islands/tables, mannequins/hero displays, and checkout/fitting areas. This keeps you from over-specifying one optic for the entire store.
Two track heads can look identical and perform very differently. These specs move the needle.
For customer-facing retail, CRI ≥ 90 is a practical baseline. If R9 is available, it’s especially useful for merchandise where reds matter (fashion, cosmetics, food). Low-CRI lighting is one of the fastest ways to make products look “off,” even when the store is bright.
Most retail spaces live in a warm-neutral to neutral band (often ~3000K–4000K). The real goal is consistency: mixed CCT across zones makes the same product look different from one aisle to the next.
Beam angle is your visual merchandising tool.
Mannequins and hero products often want 15°–24°.
Shelves, standard displays, and feature tables often want 24°–36°.
Checkout and soft fill often want 36°–60°.
If you’re searching for the best beam angle for track lighting retail, this “zone-first” approach is more reliable than picking one beam and repeating it everywhere.
Two common failure modes:
Direct glare: the shopper can see the LED source.
Reflected glare: polished floors, glass cases, mirrors.

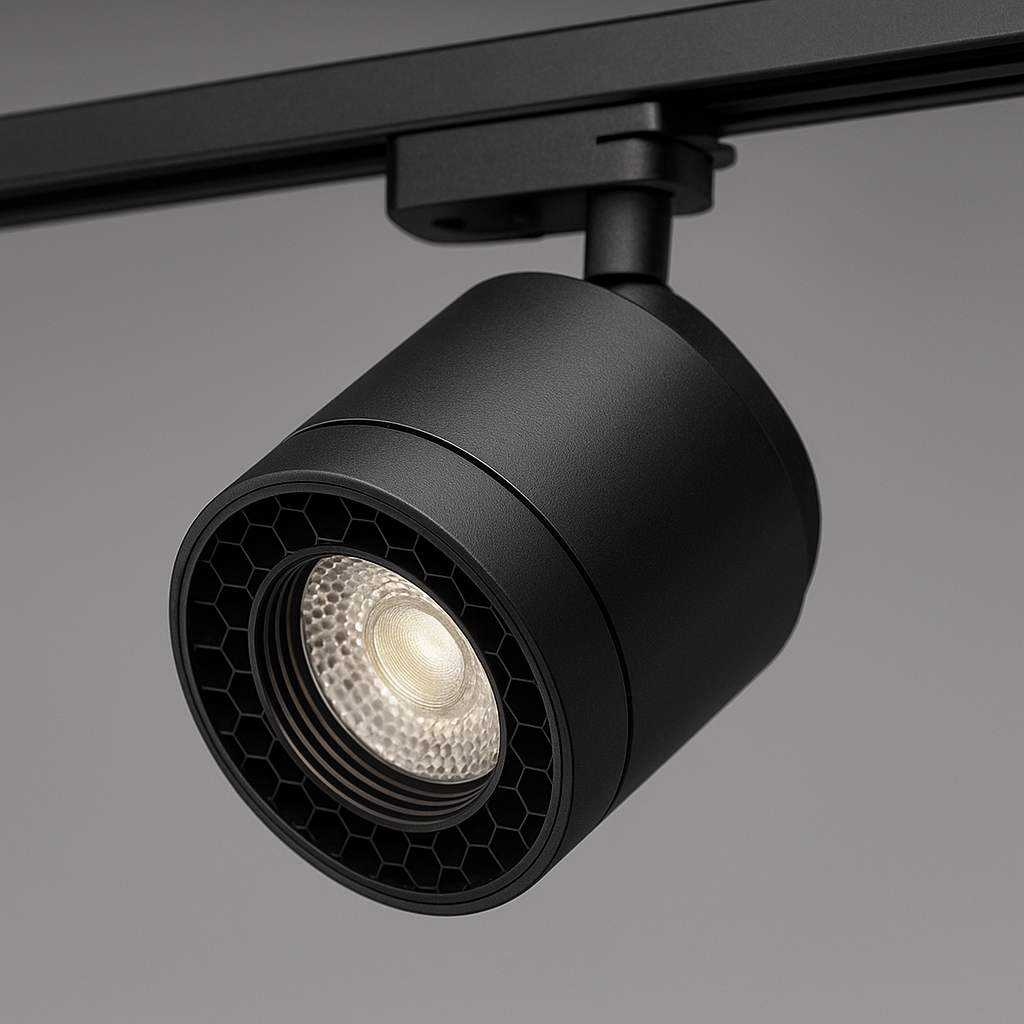

Better optics (shielding, baffles/honeycomb options) helps, but aiming discipline matters just as much.
In retail, dimming isn’t a luxury. It’s how you tune contrast and mood for time-of-day and promotions.
Common approaches include TRIAC/phase-cut for simpler installs, and 0–10V or DALI for commercial control schemes. The important part is verification: confirm the dimming protocol and the minimum dim level (some drivers won’t dim smoothly without flicker).
For a practical “verify the claim” mindset (including what to request from suppliers), this internal technical overview—LED panel specifications comparison: efficacy, CRI, dimming, lifetime (2026)—is a useful model.
This is where many projects go wrong: good fixtures installed in a lazy layout.
Start with track position. A common starting point for perimeter merchandising is placing the track 12–24 inches from the wall, then aiming toward the product face.
Aim to reduce glare and increase texture. Aiming angles around 30°–45° are commonly used to light the product rather than the shopper’s eyes.
For a practical set of starting ranges (including a spacing reference table by ceiling height), see XHLUX’s guide on layout rules: 12–24 inches from wall and aim 30–45°. Use it as a starting point, then adjust based on your ceiling height, display depth, and desired contrast.
In the US, three standards dominate: H (Halo), J (Juno), and L (Lightolier).
Key point: they’re not interchangeable. If you buy the wrong head for the installed track, it won’t fit.
A straightforward first check is to inspect the conductors inside the track (H-type commonly has three). Super Bright LEDs summarizes the practical buyer view in H vs J vs L track standards (not interchangeable).
⚠️ Warning: In commercial projects, “almost fits” is a failure. Confirm track type and voltage before ordering heads.
Use this checklist to keep the project “spec-true” from quote to installation:
Track standard + adapter type (H/J/L; magnetic vs traditional)
Optics options (beam angles available and whether lenses are interchangeable)
Color specs (CRI, and R9 if available; confirm CCT consistency)
Glare control options (baffles, honeycomb, shielding)
Dimming protocol + tested compatibility (and minimum dim level)
Photometric documentation (IES files, LM-79 where applicable)
Certification scope (UL/ETL/DLC/Title 24—verify per SKU and per project requirements)
Warranty terms + support workflow (RMA flow, lead time for spares)
Most stores don’t need one perfect track head—they need a small set of repeatable types across zones: an adjustable spot option for focal points, a medium flood for shelves and tables, and a linear/fill option where softer continuity matters.
If you’re evaluating magnetic-track ecosystems, KEOU Lighting’s track light (48V magnetic track) category is positioned around a low-voltage magnetic track with multiple accessory types (COB spotlights, flood options, a linear flood light, and other modules). Treat it as one option to compare against your track standard, controls, and documentation requirements.
If your store wants a cleaner ceiling but still needs flexibility, it’s also worth understanding where track-mounted downlights fit. KEOU notes that track-mounted downlights used in retail and gallery spaces are popular specifically because the lighting can be repositioned as displays change.
It depends on the zone. Narrow beams (around 15°–24°) work well for hero products and mannequins. Medium beams (24°–36°) are a common choice for shelves and feature tables. Wider beams (36°–60°) can soften checkout and general fill areas.
For customer-facing retail, CRI ≥ 90 is a practical baseline. If you have access to R9 data, it’s valuable for merchandise with strong reds (apparel, cosmetics).
Usually, yes. Dimming is what lets you tune contrast and mood for time-of-day and promotions. Just make sure the dimming protocol (TRIAC vs 0–10V vs DALI) matches the project, and confirm the minimum dim level and flicker behavior.
Start by inspecting the conductors inside the track. H-type typically has three conductors; J and L often have two with different spacing. Confirm before ordering heads.
If you want a quote that matches your layout (and avoids the “wrong track / wrong optics” rework loop), send a BOM-style request with:
store type and key zones
ceiling height and a rough plan (even a marked-up photo works)
target CCT + CRI requirement
track standard (H/J/L) or whether you want magnetic track
KEOU Lighting can then propose a small, repeatable set of modules and optics options and have engineering confirm compatibility before production.
