Lighting technology underwent a fundamental shift when solid-state physics replaced thermal filament incandescence and fragile gas-discharge tubes. Today, light-emitting diode (LED) lighting accounts for the majority of global illumination sales across residential, commercial, and industrial sectors. At the heart of this global transition is a microscopic electronic component: the LED chip.

Understanding the LED chip invention and application reveals how semiconductor physics evolved into high-efficiency architectural and industrial luminaires. From early laboratory experiments with electroluminescence to Nobel Prize-winning materials breakthroughs and modern Chip-on-Board (COB) modules, the evolution of LED lighting fixtures is a story of material science, thermal engineering, and manufacturing scale.

1. The Physics and Invention History of the LED Chip

The journey toward solid-state lighting spans more than a century, moving through three distinct eras of physical discovery and semiconductor engineering.

1906–1927: Electroluminescence Discovery (Round & Losev)

1962: First Visible Red LED (Nick Holonyak Jr. / General Electric) 1990s: High-Brightness Blue GaN LED Breakthrough (Nakamura, Akasaki, Amano) Present: White Phosphor Conversion & Modern High-Efficacy LED Packaging

1.1 Early Foundations: Solid-State Electroluminescence

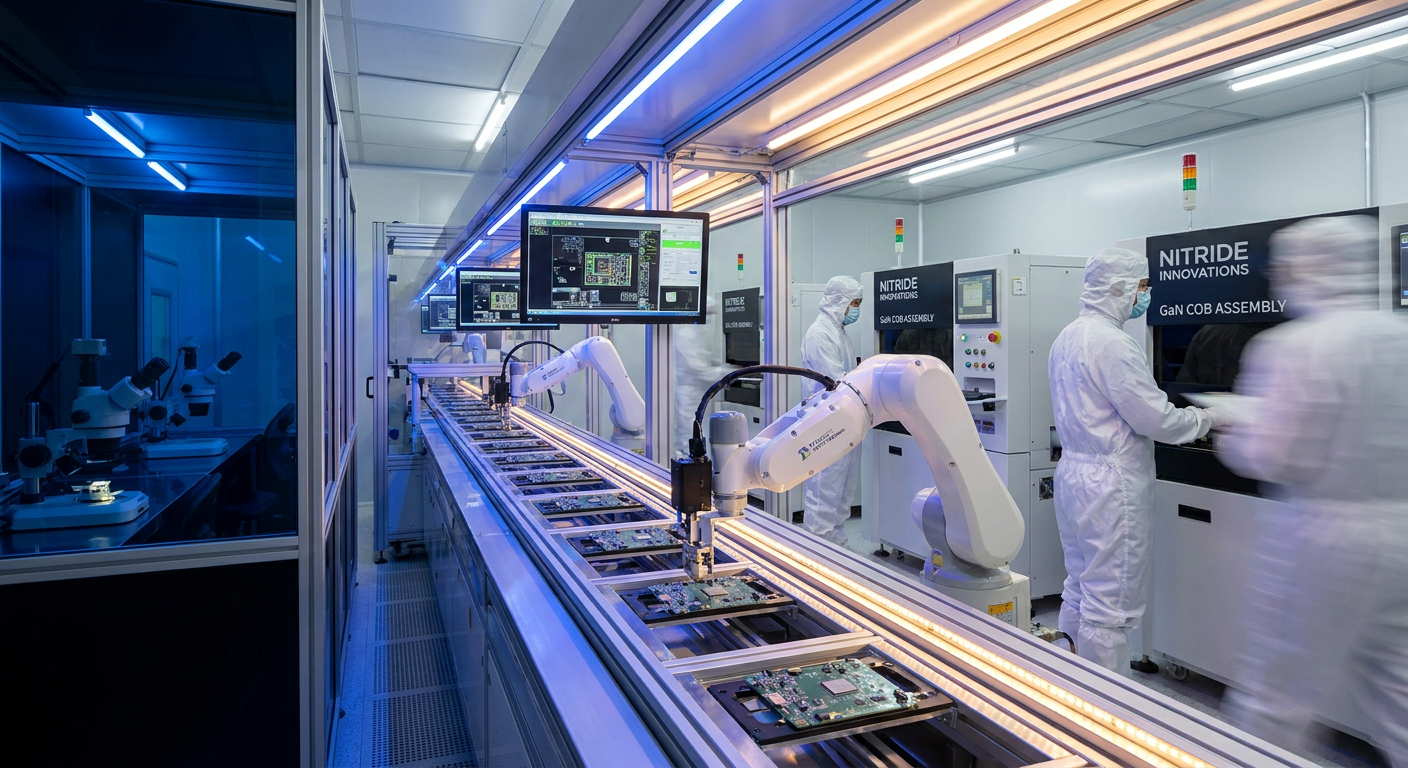

Semiconductor laboratory producing high-efficiency GaN LED chips

Long before the modern microchip existed, researchers discovered that electrical currents passing through solid materials could generate light without thermal incandescence. In 1907, British experimenter Henry Joseph Round documented electroluminescence in semiconductor diodes while applying current to silicon carbide (SiC) crystals. Russian scientist Oleg Losev published detailed theoretical papers on diode light emission in 1927. However, these early devices emitted weak light and lacked practical semiconductor fabrication techniques, remaining laboratory curiosities for decades.

1.2 1962: Dr. Nick Holonyak Jr. and the First Visible Red LED

The true practical origin of the LED chip occurred in October 1962 at General Electric’s Advanced Semiconductor Laboratory. Physicist Dr. Nick Holonyak Jr. engineered the world's first visible-spectrum red LED in 1962 using Gallium Arsenide Phosphide (GaAsP) p-n junctions.

Unlike infrared semiconductor lasers developed around the same period, Holonyak’s diode emitted visible red light when forward-biased. When electrons recombined with electron holes across the semiconductor bandgap, energy was released as visible photons rather than heat. This breakthrough earned Holonyak recognition as the "Father of the Visible LED." Throughout the 1970s, researchers expanded on GaAsP and Gallium Phosphide (GaP) chemistry to manufacture yellow and orange LED indicators for electronic instruments, digital clocks, and control panels.

1.3 The "Missing Blue" Breakthrough and the 2014 Nobel Prize

Despite early progress with red and green indicator diodes, solid-state general illumination remained impossible for thirty years because scientists could not produce high-brightness blue light. White light generation requires either additive RGB mixing or blue light exciting a fluorescent phosphor coating.

Creating an efficient blue LED required a semiconductor material with a wide bandgap energy, specifically Gallium Nitride (GaN). Growing high-quality GaN crystals proved extraordinarily difficult due to thermal strain and defect densities on traditional sapphire substrates.

The breakthrough came in the late 1980s and early 1990s through the independent and collaborative work of Japanese scientists Isamu Akasaki, Hiroshi Amano, and Shuji Nakamura. Working at Nichia Corporation, Nakamura developed key metal-organic chemical vapor deposition (MOCVD) growth techniques and p-type GaN doping methods. This allowed the creation of ultra-bright Gallium Nitride blue LEDs.

Recognizing the immense societal impact of energy-efficient white light, the Nobel Committee awarded Akasaki, Amano, and Nakamura the 2014 Nobel Prize in Physics for blue GaN LEDs.

Key Takeaway: The invention of the high-brightness blue GaN LED was the pivotal scientific breakthrough that made white LED illumination physically possible, unlocking the shift from low-lumen electronic indicators to high-power general lighting.

1.4 Phosphor Conversion: How Blue Chips Create White Light

Modern white LED chips do not naturally emit white light. Instead, they use a process called Phosphor-Converted White LED (pc-LED):

  1. GaN Semiconductor Die: A primary GaN chip emits monochromatic blue light at a peak wavelength between 450 nm and 460 nm.

  2. YAG Phosphor Coating: The chip die is encapsulated in a resin or silicone layer containing Yttrium Aluminum Garnet doped with cerium (YAG:Ce⊃3;⁺).

  3. Photon Conversion: A portion of the high-energy blue photons excites the YAG phosphor, re-emitting broad-spectrum yellow-green light.

  4. Spectral Synthesis: Unabsorbed blue light mixes with the yellow-green luminescence to produce crisp white light suitable for architectural and commercial applications.

By altering phosphor formulations (adding nitrides or fluorides), manufacturers can precisely control Correlated Color Temperature (CCT from 2700K warm white to 6500K daylight) and Color Rendering Index (CRI Ra > 80, Ra > 90, or Ra > 97).

2. Physical Packaging Evolution: From Diode Indicators to Integrated Luminaire Architecture

As semiconductor chip performance improved, the physical packaging surrounding the LED die evolved to overcome thermal limitations and meet diverse optical distribution requirements.

Packaging Technology

Era Dominance

Typical Lumen Density

Primary Thermal Substrate

Typical Applications

DIP (Dual In-line Package)

1960s–1980s

5–15 lm/die

Lead frame pins through epoxy

Status indicators, digital clocks, exit signs

SMD (Surface Mount Device)

1990s–Present

40–80 lm/mm²

Printed circuit board (FR4/MCPCB)

Linear lights, panel lights, area floodlights, strips

COB (Chip-on-Board)

2010s–Present

120–200 lm/mm²

Direct Metal Core PCB (Aluminum/Ceramic)

High-bay fixtures, downlights, spotlights, stadium lights

CSP (Chip Scale Package)

2020s–Present

150–220 lm/mm²

Direct substrate flip-chip bond

Ultra-compact optics, architectural linear accenting

2.1 DIP Diodes (Dual In-line Package)

The earliest commercial LED chips were encapsulated inside bullet-shaped epoxy resin shells with two extending wire leads. Known as DIP LEDs, these components relied on thin lead frames for thermal dissipation. Because epoxy resin is a poor thermal conductor, driving DIP LEDs above 0.1 Watts caused thermal degradation. Consequently, DIP LEDs remained limited to low-lumen indicator lamps and basic outdoor sign displays.

2.2 SMD LED Chips (Surface Mounted Devices)

Introduced in the late 1990s, Surface Mounted Device (SMD) packaging revolutionized solid-state lighting assembly. In an SMD package (such as the standard 2835, 3030, or 5050 formats), individual LED dies are bonded to miniature ceramic or synthetic housings and soldered directly onto circuit board surfaces.

SMD chips introduced several engineering advantages:

  • Wide Optical Beam Angles: Native light emission angles ranging from 110° to 140° provide uniform area illumination.

  • Superior Automated Assembly: Surface-mount technology (SMT) pick-and-place machines lowered production costs.

  • Scalable Thermal Spreading: Spacing multiple small SMD chips across a Metal Core Printed Circuit Board (MCPCB) distributes thermal loads across a large surface area.

SMD packaging enabled the first wave of mass-market retrofit products, including T8 LED tubes, household light bulbs, and flexible LED strips.

2.3 COB Technology (Chip-on-Board)

While SMD chips excel at distributed area illumination, applications requiring concentrated, high-intensity directional light (such as architectural spotlights, retail downlights, and industrial high bays) encountered optical multi-shadowing issues with spaced SMD arrays.

Chip-on-Board (COB) technology resolves this by mounting dozens or hundreds of raw LED dies directly onto a shared Metal Core PCB or ceramic substrate, bound under a continuous phosphor gel matrix.

Key benefits of COB LED chips include:

  • High Lumen Density: Delivering 120 to 200 lm/mm², creating a concentrated single-point light source without multi-shadow artifacts.

  • Direct Thermal Coupling: Eliminating intermediate package leads reduces junction-to-case thermal resistance (R_θj-c down to 0.3–1.2 °C/W), extending chip lifespan under high drive currents.

  • Superior Optical Beam Control: Pairs cleanly with parabolic reflectors and total internal reflection (TIR) lenses for sharp beam angles (15°, 24°, 36°).

2.4 From Bulb Retrofits to Integrated Purpose-Built Luminaires

Early LED deployment focused on fitting semiconductor light sources into legacy lamp shapes (E27 screw bulbs, GU10 spotlights, fluorescent tubes). However, forced retrofit shapes compromised heat dissipation and driver lifespan.

Modern fixture design has transitioned to integrated solid-state luminaires. Rather than housing a replaceable bulb, the luminaire housing itself acts as the primary heat sink, structural frame, and optical diffuser. This transition enabled ultra-thin ceiling panels, heavy-duty weather-sealed floodlights, and modular commercial fixtures optimized specifically for semiconductor longevity.

3. Why LED Lighting Became Widespread: Key Drivers of Global Adoption

The rapid transition from legacy lighting to global LED adoption was driven by compelling physics, aggressive cost deflation, and international energy policies.

DRIVERS OF GLOBAL LED ADOPTION

  1. Luminous Efficacy Jump | 15–20 lm/W (Incandescent) → 160–200+ lm/W

  2. Extended Lifespan | 1,000 hrs → 50,000–100,000 hrs (L₇₀)

  3. Thermal Engineering | Die-cast aluminum, MCPCBs, junction cooling

  4. Advanced Electronics | High-efficiency constant current / DOB

  5. Regulatory Mandates | Global bans on incandescent & mercury CFLs

  6. Total Cost Economics | Sub-12-month commercial ROI

3.1 Luminous Efficacy Jumps (lm/W)

Luminous efficacy measures how efficiently a light source converts electrical power (watts) into visible light (lumens).

According to data tracked by the International Energy Agency (IEA), modern commercial LED packages achieve efficacies between 160 lm/W and 200+ lm/W, reflecting a global transition to high-efficacy LED luminaires over the past fifteen years.

Compared to legacy technologies:

  • Incandescent Bulbs: 12–18 lm/W (90% of energy wasted as heat)

  • Halogen Lamps: 18–24 lm/W

  • Compact Fluorescent Lamps (CFL): 55–70 lm/W

  • High-Pressure Sodium (HPS): 80–110 lm/W

  • Modern Commercial LED Luminaires: 130–180 lm/W system efficacy

This efficiency gap yields energy savings of 80% to 85% compared to incandescent lighting and 40% to 50% compared to traditional fluorescent systems.

Pro Tip: When evaluating LED fixtures, always distinguish between chip package efficacy and system luminaire efficacy. System efficacy accounts for optical diffuser absorption losses and driver efficiency conversion losses.

3.2 Superior Thermal Management and Extended Lifespan

Traditional light bulbs fail when their tungsten filament burns out or gas electrode seals degrade. LED chips do not suffer sudden catastrophic filament burnouts. Instead, they experience gradual lumen depreciation over time.

Standard industry lifespan is quantified by the L₇₀ B₅₀ benchmark: the operational hours required for light output to decline to 70% of initial lumens across 50% of a tested population. Modern commercial LED luminaires routinely achieve L₇₀ ratings of 50,000 to 100,000 hours.

To achieve this longevity, fixture manufacturers rely on advanced thermal dissipation structures:

  • Metal Core PCBs (MCPCB): Aluminum-backed circuit boards that rapidly draw heat away from the semiconductor junction.

  • Die-Cast Aviation Aluminum Housings: High-density aluminum heat sinks designed with thermal cooling fins to maximize natural convective airflow.

  • Thermal Interface Materials (TIM): High-conductivity silicone pastes or phase-change pads placed between the board and heat sink to eliminate micro-air gaps.

GaN Semiconductor Die

↓ (R_θj-c: Thermal resistance junction-to-case)

Metal Core PCB (MCPCB)

↓ (TIM Thermal Interface Material)

Die-Cast Aluminum Heat Sink

↓ (Convective Air Cooling)

Ambient Atmosphere

By keeping internal junction temperatures (Tⱼ) safely below 85°C, high-quality fixtures maintain color consistency and prevent premature lumen degradation.

3.3 Maturity of Driver Electronics and DOB Circuits

LED chips are low-voltage, direct-current (DC) devices that require precise current regulation. Fluctuations in supply voltage cause exponential changes in forward current (I f), which can cause thermal runaway if unmanaged.

The development of highly reliable electronic LED drivers accelerated market adoption:

  • Constant Current (CC) Switching Drivers: Maintain precise output current (e.g., 350mA, 700mA, 1050mA) across broad input voltage ranges (100–277V AC), protecting chips from power grid spikes.

  • Driver-on-Board (DOB) Integration: In DOB architecture, IC driver components are integrated directly onto the same aluminum PCB as the SMD LEDs. Eliminating external electrolytic capacitors allows ultra-thin fixture designs, reduces shipping volume, and lowers manufacturing costs for outdoor floodlights.

3.4 Regulatory Mandates and Mercury Phase-Outs

Governmental energy efficiency regulations significantly accelerated the phase-out of legacy lighting:

  • Incandescent Bans: Directives such as the U.S. EISA regulations, European Union Ecodesign requirements, and Middle Eastern GSO efficiency standards effectively prohibited the sale of low-efficiency tungsten bulbs.

  • Minamata Convention on Mercury: International environmental agreements restricted the manufacture and import of mercury-containing fluorescent tubes and compact fluorescent lamps (CFLs), prompting institutional upgrades to solid-state lighting.

3.5 Manufacturing Scale and Sub-12-Month Commercial Payback

As MOCVD wafer reactor throughput expanded, the cost per thousand lumens ($/klm) dropped by over 90% between 2008 and 2020. Today, the reduction in operating power consumption and building maintenance costs allows commercial facilities, industrial warehouses, and hospitality venues to recover their LED upgrade capital expenditure within 6 to 12 months.

4. Practical Selection Guide for Commercial Lighting Procurement

For electrical distributors, contractors, and facility procurement managers, choosing the right LED chip architecture and luminaire build quality directly impacts project ROI, lighting comfort, and warranty reliability.

APPLICATION SELECTION GUIDE

Are you illuminating a broad indoor office or ceiling?

YES NO COB Module DOB / High-Power SMD High lumen density, Rugged weather-proof narrow beam control exterior floodlight

YES SMD Chip Array High-uniformity, low glare panel light (e.g., KEOU Panels)

NO Are you designing focused high-bay, spot, or exterior floodlighting?

4.1 COB vs. SMD Selection Matrix

When selecting fixtures for commercial projects, match the chip topology to the architectural lighting requirement:

  • Choose SMD-Based Luminaires (such as commercial LED panel light fixtures) for indoor office, school, and healthcare environments where uniform, low-glare wide ambient light distribution is required.

  • Choose COB-Based Luminaires (such as recessed COB and SMD indoor downlights) for commercial retail, accent spotlighting, museum displays, and deep ceiling downlights where sharp beam angles and high center-beam candlepower (CBCP) are needed.

  • Choose Integrated DOB Solutions (such as integrated driver-on-board (DOB) floodlights) for exterior perimeter security, industrial yards, and municipal building facades where compact, weather-sealed housings and cost-effective maintenance are priorities.

4.2 Proof-Led Manufacturing and Quality Signals

When evaluating lighting OEMs and factory supply partners, review these key manufacturing parameters:

  1. Thermal Substrate Standard: Verify that high-power fixtures use high-conductivity aluminum MCPCBs (thermal conductivity K > 2.0 W/m·K) paired with precision die-cast aviation aluminum housings rather than stamped sheet metal or plastic frames.

  2. Optical Glare Protection: Look for honeycomb anti-glare diffusers, prismatic lenses, or edge-lit light guide plates (LGP) that achieve Unified Glare Ratings below UGR 19 for office productivity and eye comfort.

  3. Electrical Driver Protection: Ensure drivers include built-in surge protection (4kV to 10kV line-to-earth) and flicker-free operation (ripple current < 3%) to prevent video camera interference and optical eye strain.

As an experienced B2B LED lighting manufacturer with 13 years of factory operation, KEOU Lighting integrates independent COB/SMD research and development with precision die-cast manufacturing. Serving commercial distributors, engineering contractors, and wholesalers across 116 countries, KEOU focuses on eye-protective honeycomb optics, robust thermal dissipation, and comprehensive OEM/ODM customization services.

5. Frequently Asked Questions (FAQ)

Q1:Who invented the first LED chip, and who made white LED lighting possible?

Dr. Nick Holonyak Jr. invented the first practical visible-spectrum red LED in 1962 while working at General Electric. White LED lighting became possible thirty years later when Japanese scientists Isamu Akasaki, Hiroshi Amano, and Shuji Nakamura developed high-efficiency blue Gallium Nitride (GaN) LEDs in the early 1990s—an achievement recognized with the 2014 Nobel Prize in Physics.

Q2:What is the main difference between COB and SMD LED chips in commercial fixtures?

SMD (Surface Mounted Device) chips use individual packaged diodes soldered across a circuit board, producing wide, uniform, low-glare light ideal for panel lights and linear fixtures. COB (Chip-on-Board) packages pack multiple raw dies closely together under a single phosphor gel matrix, delivering high lumen density and a concentrated beam ideal for downlights, spotlights, and high-bay fixtures.

Q3:Why do LED lights last so much longer than traditional lighting fixtures?

LEDs operate via solid-state electroluminescence rather than heating a fragile tungsten filament or exciting mercury gas. Because there are no mechanical filaments to burn out or glass tubes to break, high-quality LEDs backed by efficient heat sinks achieve operational lifespans of 50,000 to 100,000 hours (L₇₀).

Q4:How do temperature and thermal management impact LED chip performance?

Exceeding maximum rated semiconductor junction temperatures (Tⱼ) accelerates phosphor degradation, alters correlated color temperature (CCT drift), and reduces luminous efficacy. Quality luminaires use die-cast aluminum heat sinks and high-conductivity Metal Core PCBs to dissipate thermal energy quickly into the surrounding air.

6. Summary and Next Steps

The evolution of the LED chip from a low-lumen laboratory red diode to Nobel Prize-winning blue GaN semiconductors has reshaped global energy consumption and architectural lighting design. Today, solid-state lighting offers unprecedented luminous efficacy, precise optical control, and long-term economic savings for commercial and industrial facilities.

For commercial lighting distributors, contractors, and project managers seeking compliant, high-efficacy LED luminaires engineered with advanced thermal dissipation and customizable OEM/ODM options, reviewing technical photometrics and factory build specifications is the first step toward project success.

Explore complete product spec sheets, photometrics, and factory OEM capabilities by contacting the engineering team at KEOU Lighting.
