Dual-Zone Edge-Lit LED Panel Light: Side + Center Colors in One Fixture

A standard edge-lit LED panel light is designed to do one job well: deliver uniform, comfortable ceiling light.

A dual-zone edge-lit panel light goes a step further. It splits the visible output into two independently controlled zones—typically a side-emitting band (the frame or perimeter glow) and a center-emitting surface. That lets you build “scene-ready” spaces where the panel can be both a clean work light and a subtle accent—without adding a second fixture.

This article explains what the concept means, how it can be built (at a high level), and where it makes practical sense for retail, hospitality, offices, and residential interiors.

1. What a dual-zone edge-lit panel light actually means

In lighting controls language, a “zone” is simply a group of lights—or part of a light—that you can control together or separately. TLW Global describes it plainly in their guide to lighting zones and multi-zone control: zones are the areas of light you want to use together.

For a dual-zone panel, the idea is:

• Zone 1 (side/perimeter): a visible edge band that can add color or a different white tone.

• Zone 2 (center surface): the main luminous area for general illumination.

Because the zones are independent, you can do combinations like:

• Side = a soft RGB accent, center = neutral/white task light

• Side = warm tone, center = cooler tone

• Side = one brand/event color, center = comfortable ambient white

Key Takeaway: Dual-zone is less about “more colors” and more about separating functions—accent vs. ambient/task—inside one panel form factor.

2. Quick refresher: how edge-lit panels spread light (and why LGP matters)

An edge-lit panel doesn’t place LEDs across the whole back surface. Instead, LEDs sit along the perimeter and push light into an optical plate that distributes it.

Most edge-lit designs rely on a light guide plate (LGP)—an optical component used to spread light evenly across a surface. Beta-Calco’s overview, Light Guide Plates (LGP), explains how LGPs are used to distribute light from edge sources.

At a conceptual level, the stack often includes:

• Perimeter LED sources feeding light into the plate

• LGP that guides and extracts light upward

• Reflector layer behind the LGP to reduce losses

• Diffuser layer(s) to smooth the output and reduce artifacts

For a general explanation of the edge-lit principle, PacLights’ explainer Edge Lit: Lighting Explained is a useful reference.

3. How one panel can produce two zones (three common design approaches)

There’s more than one way to create a side-emitting zone plus a center-emitting zone. What matters is that the two zones have separate electrical channels and a physically/optically distinguishable output area.

3.1 Two channels, two optical paths

The cleanest conceptual model is two independent light engines:

• one channel optimized to feed the center diffusion/LGP for uniform light

• one channel optimized to feed the perimeter band (a ring diffuser, light pipe, or edge window)

This approach makes it easier to tune how much the perimeter “reads” from the side view without contaminating the center uniformity.

3.2 Layered optics: a “band” layer over a “panel” layer

Some dual-zone concepts use optical layering:

• a main LGP/diffuser system for the center

• a secondary diffuser/light-guide structure at the perimeter to create a controlled ring/band glow

The benefit is visual separation: the edge band can look intentional (architectural) rather than like light leakage.

3.3 Mechanical separation in the bezel/frame

If the design goal is that the fixture body is visibly colored from the side, the frame itself can be treated as a controlled light window.

This is where careful diffusion matters: the more “transparent” the side window is, the more likely you’ll see hotspots. The more “frosted” it is, the more uniform it appears—but brightness perception changes.

4. RGB + tunable white: what it enables in real spaces

You said you want to focus on RGB + tunable white. Conceptually, that points to an RGBCW-style capability: color for accent, and adjustable whites for comfort.

• Tunable white means adjusting the white color temperature (warm ↔ cool) by controlling multiple white channels. LEDSupply defines tunable white as the ability to control a light source’s CCT in their tunable-white lighting overview.

• RGBW/RGBCW architectures add dedicated white channel(s) to RGB, which generally improves the ability to deliver usable white light while still enabling saturated colors. For a conceptual comparison, see Prillum’s discussion in RGB vs RGBW vs RGBCW.

The practical benefit of “RGB + tunable white” in a dual-zone panel is flexibility:

• Keep the center on comfortable whites for everyday use

• Let the side band add color cues (brand colors, mood, zoning, wayfinding)

That’s especially valuable in spaces where lighting needs to shift across the day without changing hardware.

Pro Tip: Treat the center zone as the “workhorse” (white light quality and uniformity), and treat the side zone as the “signal” (accent, identity, atmosphere).

5. Where dual-zone panels make sense (and where they don’t)

Dual-zone panels aren’t for every ceiling. They shine when a single plane of light needs to do two jobs: general illumination and environmental styling.

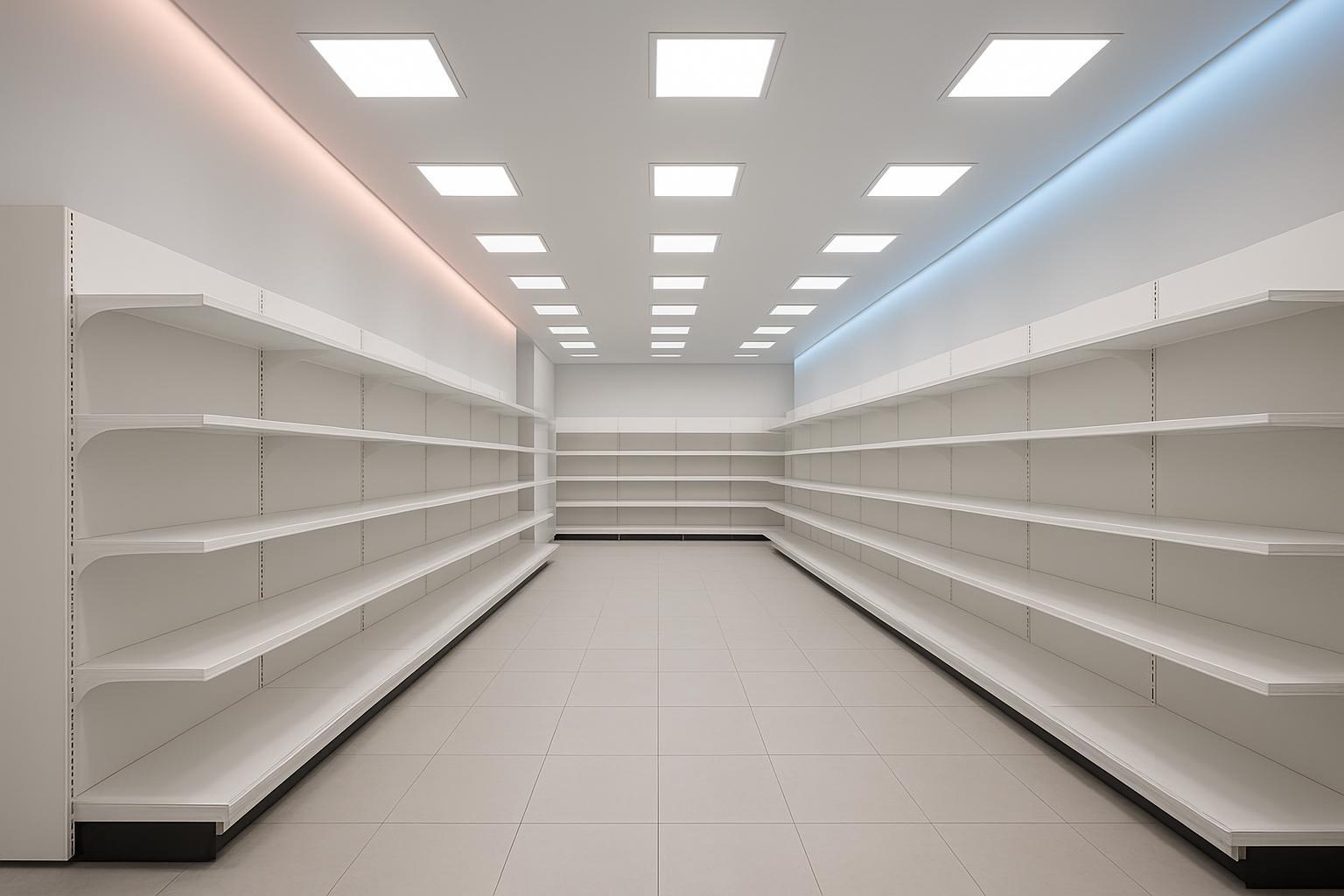

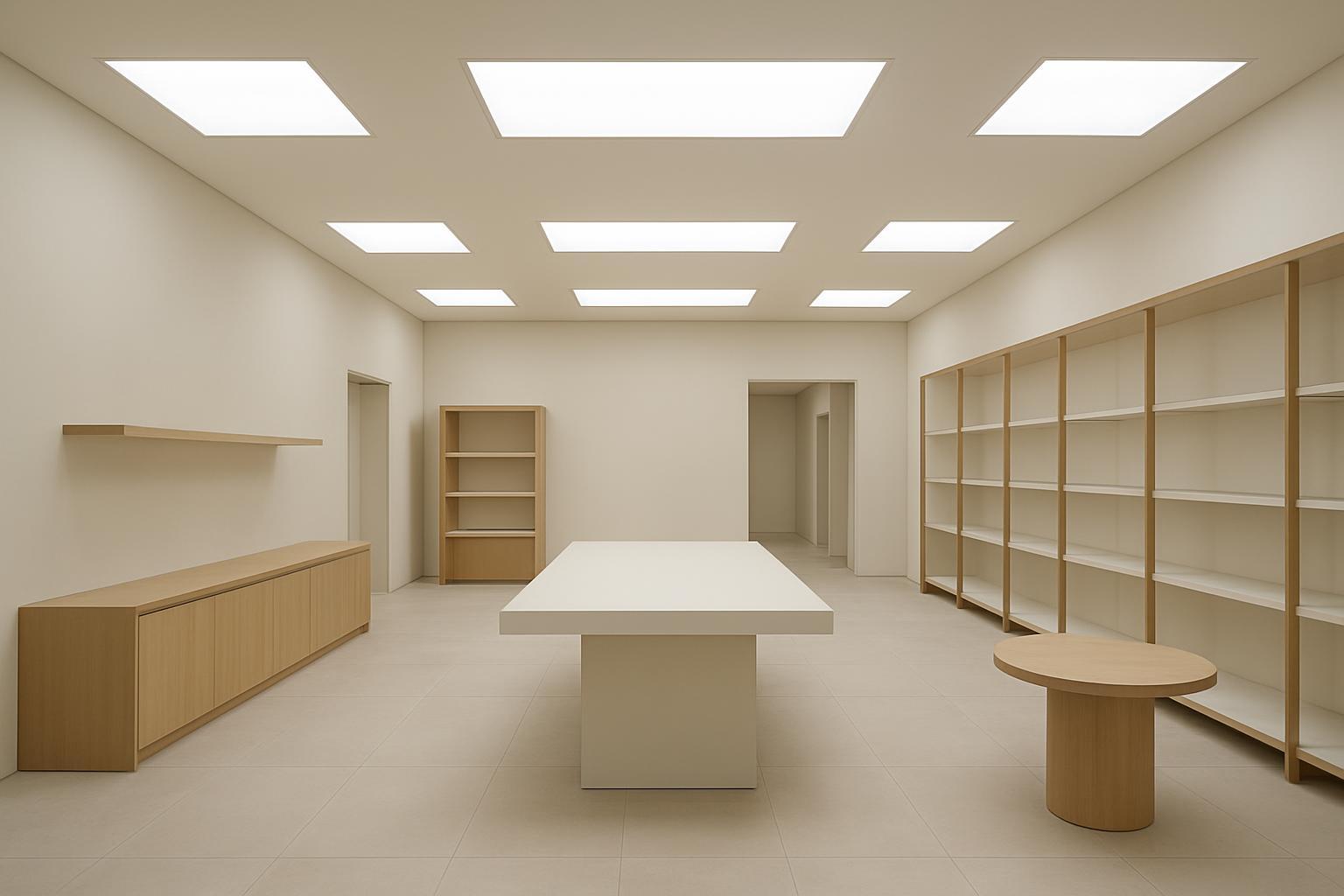

5.1 Retail: brand + product focus without adding track heads everywhere

Retailers often want a clean base light for product visibility—but also want the store to feel distinct.

A dual-zone panel can keep the center neutral while the side band adds a subtle brand color or a “promotion mode.” This is most useful in:

• shopfront threshold areas

• feature-wall zones

• display perimeter lighting where you want a soft cue, not a spotlight

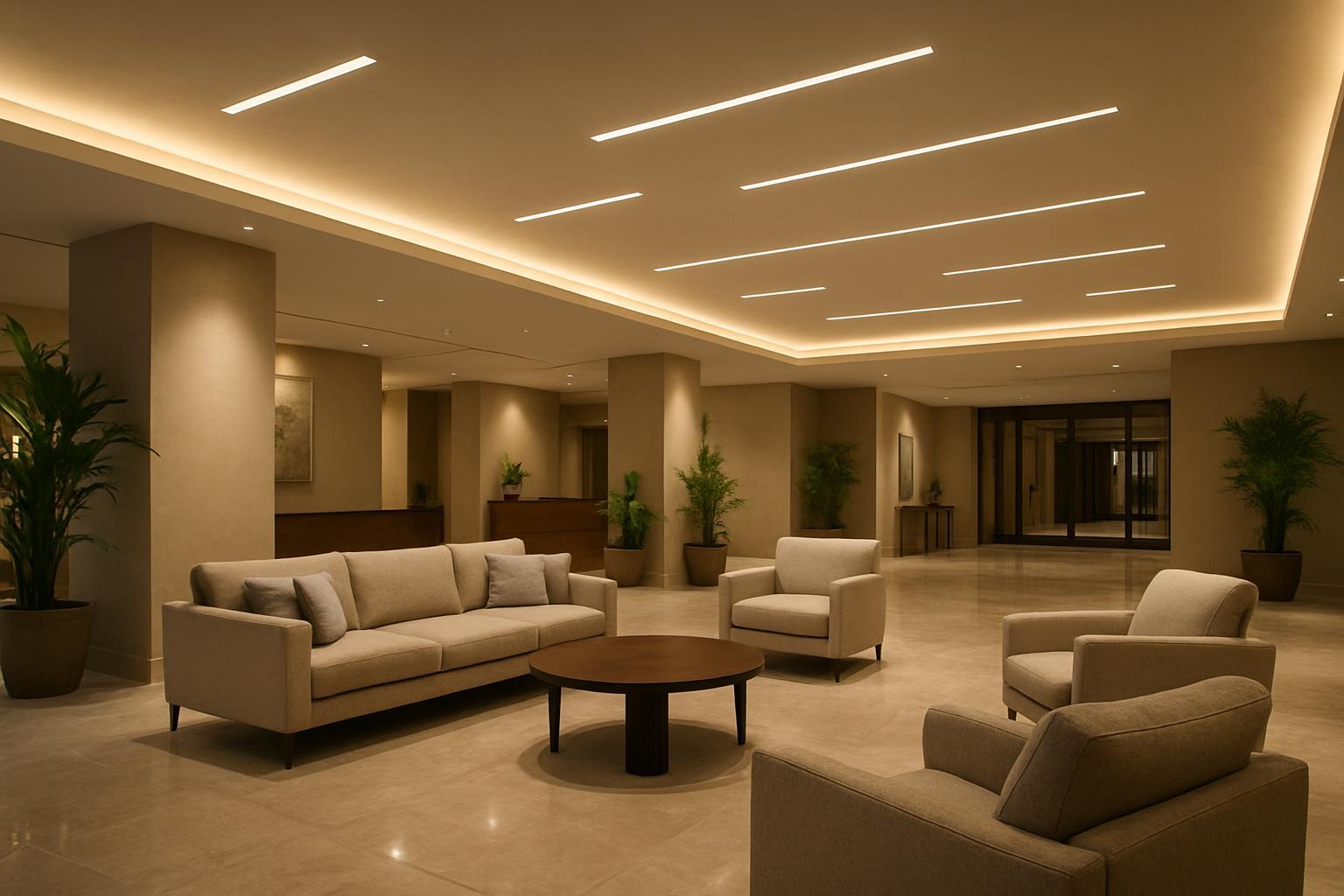

5.2 Hospitality: lobby and lounge scenes

Hospitality spaces change rhythm: daytime clarity, evening comfort, occasional events.

Dual-zone output supports that rhythm. For example:

• daytime: center cooler/neutral, side minimal

• evening: center warmer, side with a gentle color accent

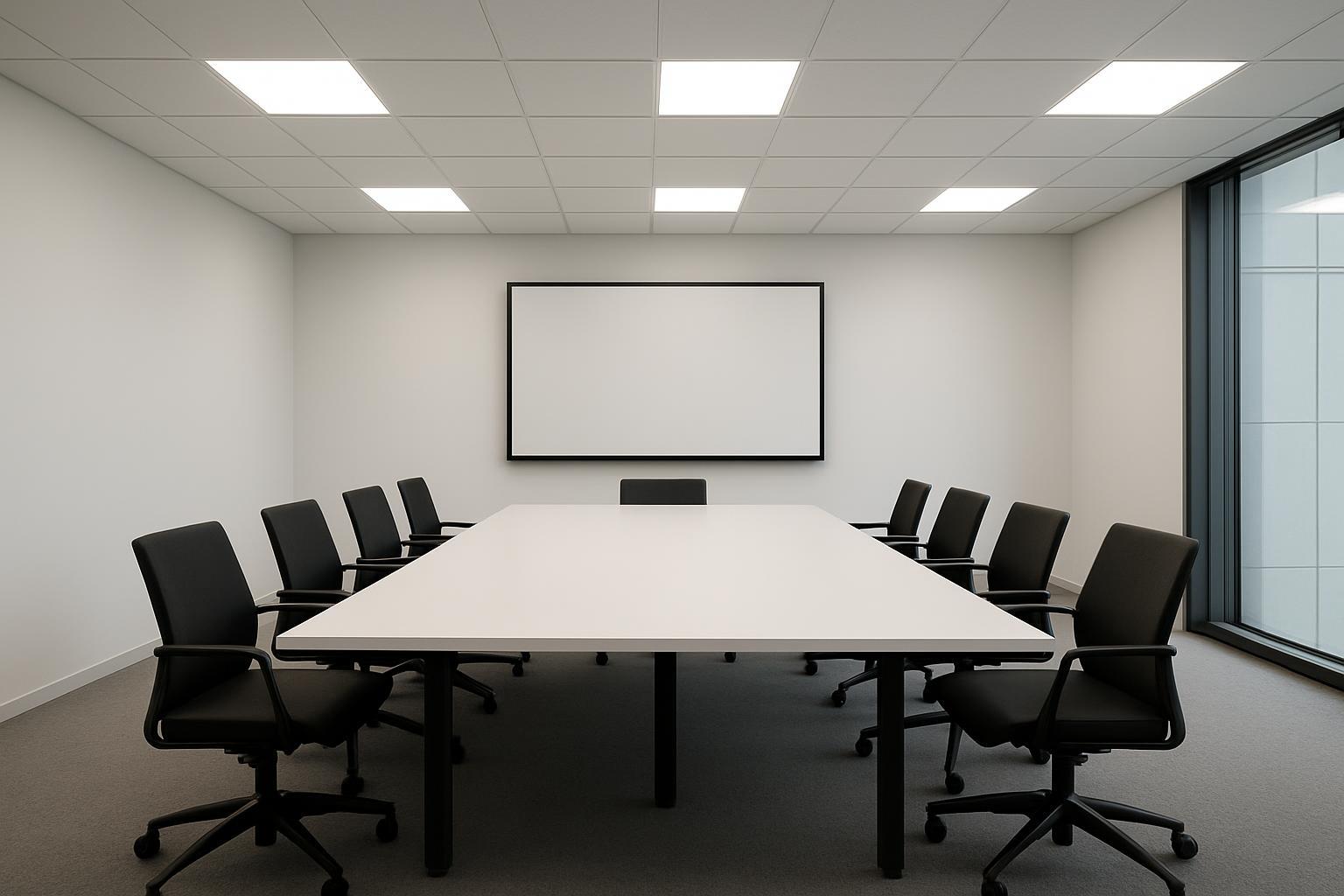

5.3 Offices: meeting rooms and reception

Meeting rooms often need “presentation mode” vs “discussion mode.” Reception areas need identity without glare.

Dual-zone helps when you want the ceiling to stay minimal but still create scene contrast:

• bright center for note-taking

• colored side band for mood and brand tone

If you also care about edge-lit fundamentals (uniformity, diffuser stack, and what makes a panel feel premium), KEOU Lighting’s article on edge-lit round panel sizes and wattage basics is a helpful companion.

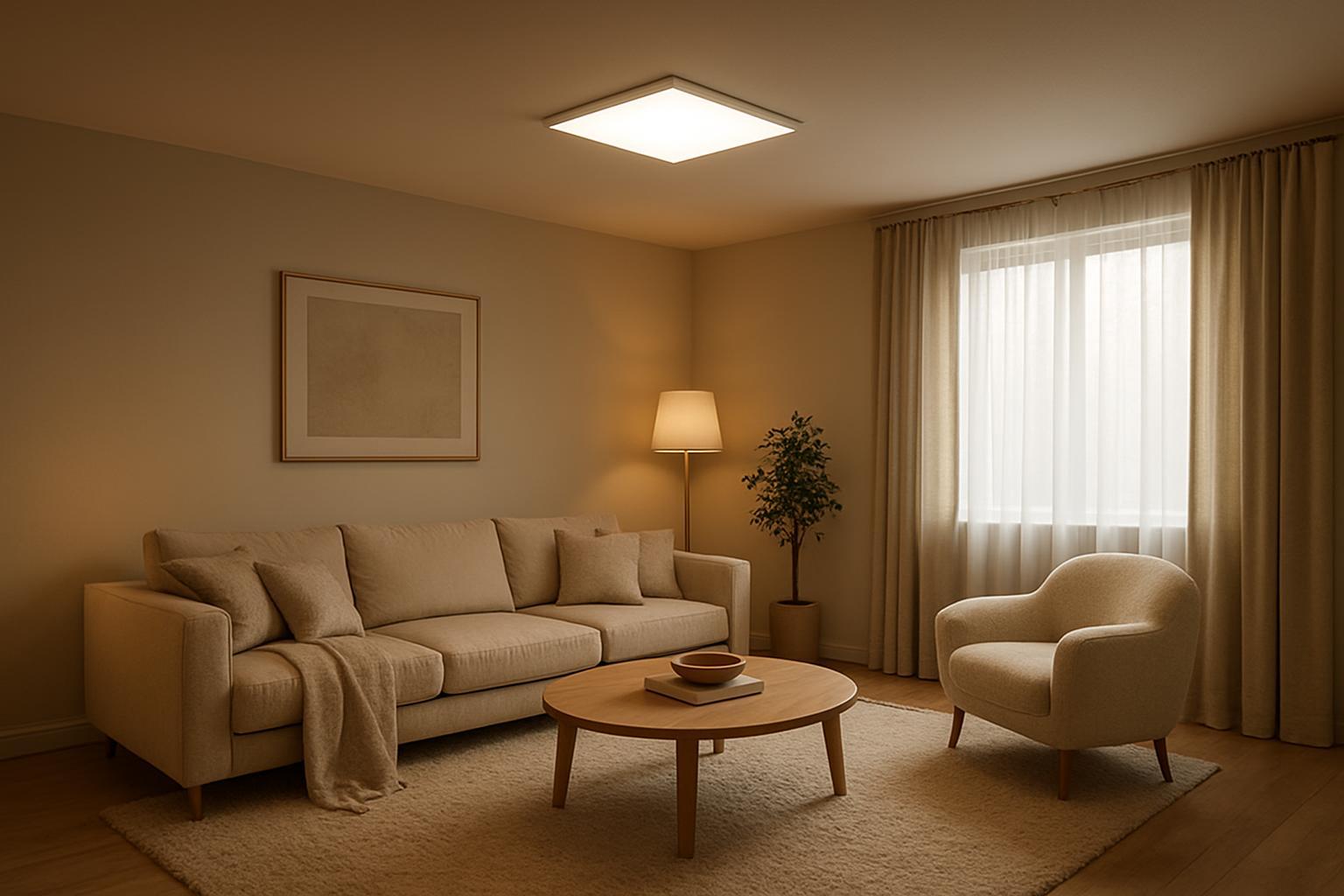

5.4 Residential: living rooms and bedrooms

Home users increasingly expect one fixture to handle multiple moods:

• crisp white for cleaning and tasks

• warm white for relaxing

• gentle color as a background ambience

A dual-zone panel can deliver that “two-layer” feel without extra luminaires—assuming the control method fits the homeowner’s willingness to manage scenes.

5.5 Ambient and task lighting, separated by zone

In most interiors, ambient and task lighting serve different purposes: ambient sets the overall comfort level, while task lighting supports focused activities (reading, paperwork, product inspection).

A dual-zone panel can keep those layers clean: the center handles the “work” white light, while the side band adds a softer ambient cue or accent without adding a second fixture.

6. The spec checklist distributors should confirm before listing this product

Dual-zone sounds simple on a product page. In real projects, the details determine whether it’s a hero SKU—or a return risk.

Here’s a practical checklist to align expectations with the factory and your customer:

1. Channel definition: Which zone is Channel A vs Channel B? Is it side-only, center-only, or blended?

2. Control method: wall switch presets, remote/controller, or building control integration? (Confirm what the customer will actually use.)

3. Color system scope: RGB only, RGBW, or RGB + warm/cool white (tunable white). What is available per zone?

4. Default scene behavior: after power-off/on, does it remember last setting or return to default?

5. Wiring and driver layout: one input with internal channel control vs two independent inputs (affects installation planning).

6. Optical appearance notes: any visible “banding” at the perimeter, hotspot risk, and diffuser texture expectations.

For broader vocabulary that helps avoid misunderstandings (dimming types, flicker language, and common panel specs), you can reference KEOU Lighting’s LED panel specification comparison guide.

7. Next steps

If you’re building a catalog for Saudi Arabia, dual-zone panels can be a smart “differentiator SKU”—as long as the control method and scene expectations are clear.

A good next step is to define three lighting scenes your customer actually wants (for example: Retail Display, Lounge, Meeting) and confirm what each zone should do in each scene. From there, it’s much easier to specify channels, wiring, and the optical look.
