Roadway lighting projects rarely take place on perfectly flat, level surfaces. Municipal thoroughfares, mountain highways, terraced industrial parks, and sloped urban avenues present steep inclines, uneven setbacks, and non-plumb mounting poles. When installing standard fixed-arm outdoor luminaires on sloped roadways, gravity-aligned poles often throw light away from the pavement, creating dangerous high-angle glare for oncoming drivers and dark shadows on driving lanes.
An adjustable angle LED street light solves these real-world installation challenges by incorporating a mechanical tilt bracket, slip fitter, or rotatable spigot. This allows installation teams to fine-tune the fixture's pitch and roll, aligning the photometric beam precisely with the road surface regardless of pole angle or terrain slope.
This technical guide defines the essential components of adjustable street lighting, details the mechanical working principles of rotatable slip fitters, examines when tilting is required on sloped roads, analyzes the optical impact on IES Type II, Type III, and Type V light distributions, and outlines the specifications required for high-quality adjustable spigots.
An adjustable angle LED street light is a heavy-duty outdoor roadway luminaire engineered with an integrated or modular articulated mounting knuckle (commonly known as a slip fitter, rotatable spigot, or tilt adapter). Unlike rigid fixed-arm luminaires that lock the light head at a permanent 0° or 5° angle relative to the mounting tenon, an adjustable luminaire permits controlled angular rotation—typically ranging from -20° to +20° for fine roadway tuning, or 0° to 90° for horizontal-to-vertical mounting transitions.
Rotatable Slip Fitter (Tenon Adapter): A hollow cylindrical collar that slips over a round pole tenon (standard outer diameters: 48mm, 60mm, or 76mm). It features internal clamping screws and a rotatable joint that connects the tenon to the luminaire body.
Tiltable Mounting Bracket (Knuckle Joint): The central articulated hinge connecting the mounting arm to the optical housing. High-grade brackets feature internal gear teeth (splines) that mesh together to lock the chosen angle securely in place.

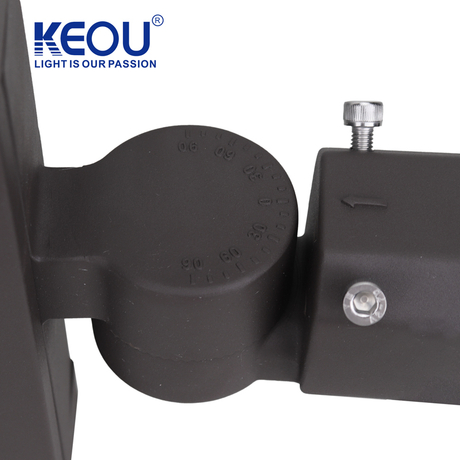

Calibrated Angle Scale: An etched or die-cast degree indicator on the exterior of the hinge joint. This enables installers to set identical tilt angles across long pole rows during daytime installation without relying on manual estimation.
Dual-Entry Mounting Interface: Many advanced luminaires, including the KEOU commercial LED street light series, feature a 90° convertible entry. This allows a single fixture to serve as either a side-entry horizontal arm light or a post-top vertical luminaire simply by adjusting the internal spigot orientation.
Outdoor roadway luminaires endure high wind gusts, traffic vibration, and changing weather conditions. If a mounting bracket relies solely on smooth surface friction, wind pressure and constant vibration can cause the luminaire head to sag or slip over time. This alters the lighting direction, throwing beams into drivers' eyes or leaving entire sections of the street dark.
High-quality adjustable street light mounting brackets prevent sagging through a mechanical interlocking design.
Interlocking Gear Teeth: The internal mating joints feature cast gear teeth that mesh together when tightened. This provides a positive mechanical lock that prevents the light head from drooping, even during heavy storms or heavy vibration.
Corrosion-Resistant Housing: High-grade die-cast aluminum housings protect internal components against rain, dust, and coastal humidity, eliminating long-term maintenance hazards.
Precision Angle Indicators: Etched degree scales allow installation crews to set uniform tilt angles across long rows of light poles during daytime installation, ensuring consistent visual appeal across the entire project.
Installation Note: Always tighten locking hardware securely during installation. This ensures the interlocking teeth mesh properly without damaging the housing assembly.
While standard fixed-angle street lights perform adequately on flat, straight grid roads, real-world infrastructure frequently requires tilt adjustment.
When street light poles are installed on inclines, erecting the pole perpendicular to the sloped road surface tilts the luminaire head relative to the pavement plane. A fixed luminaire aimed downhill casts high-angle light directly into the eye level of ascending drivers, causing blinding glare. Conversely, aiming uphill shortens the forward throw, leaving dark patches between poles. Adjusting the luminaire angle downhill or uphill (-5° to -15°) realigns the light beam parallel to the roadway surface, restoring uniform foot-candle distribution and eliminating driver glare.
In hilly urban developments, light poles are frequently mounted on elevated retaining walls, embankment tops, or stepped pedestrian walkways offset from the main road. Because the light source sits significantly higher or lower than the driving surface, standard forward-throw optics may overshoot or undershoot the lanes. Tilting the luminaire downward (+5° to +15°) directs the optical center onto the active driving lanes rather than spilling uselessly into adjacent yards or elevated structures.
When replacing legacy High-Pressure Sodium (HPS) or metal halide street lights with modern LED fixtures, existing steel or concrete poles may have bent horizontal arms, settling foundations, or non-standard arm angles. Installing an adjustable slip fitter allows contractors to correct pole alignment errors individually, delivering a clean, uniform, professional appearance across the entire roadway corridor without replacing costly pole infrastructure.
On multi-lane highways or complex off-ramps where poles are set far back from the curb, a minor upward tilt (+5° to +10°) extends the forward reach of the beam to cover outer lanes without requiring longer, heavier cantilever pole arms.
A common mistake in roadway lighting design is assuming that tilting a street light simply moves the light pattern farther down the road without changing the shape of the beam. In reality, optical lenses engineered for street lights—such as IES Type II, Type III, and Type V light distributions—are computer-optimized for level (0° horizontal tilt) installation.
Tilting the fixture changes the angle at which light rays intersect the ground plane, fundamentally distorting the photometric footprint.
IES Distribution Type | Standard Optical Intended Design | Effect of Minor Up-Tilt (+5° to +10°) | Risk of Excessive Up-Tilt (>15°) |
|---|---|---|---|
Type II (Bilateral Narrow) | Wide lateral spread designed for narrow 1-2 lane roads and sidewalks (up to 1.75× mounting height). | Extends side coverage slightly forward; compensates well for mild road inclines. | Pushes maximum candela above the horizon, causing backlight onto house side and high-angle glare for oncoming traffic. |
Type III (Medium Forward Throw) | Broad forward throw designed for 3-4 lane highways and wide avenues (up to 2.75× mounting height). | Extends forward reach across multi-lane roads on steep sloped terrain. | Shifts peak intensity beam above the 80° cutoff line, creating severe skyglow light pollution and blinding glint. |
Type V (360° Symmetrical) | Circular or square symmetrical pattern designed for central intersections, plazas, and parking lots. | Not recommended for tilt; slight tilt skews the circular pattern into an uneven oval. | Completely destroys 360° symmetry, creating a heavy hotspot on one side and a dark shadow zone behind the pole. |
When luminaires are tilted on sloped roadways, the risk of high-angle glare increases significantly as the lens cutoff angle shifts upward. To prevent glare and light pollution while maintaining angular flexibility, KEOU Lighting integrates specialized optical shielding into its road luminaires:
Honeycomb Anti-Glare Shielding: A micro-hexagonal optical grid integrated over the COB or SMD LED array that blocks stray, high-angle light rays (above 70° off-axis) without reducing primary road-surface illuminance.
Precision Cut-Off Lenses: High-transmittance optical PMMA lenses designed with sharp high-angle cutoffs, ensuring that even when the luminaire is tilted up to +10°, the beam remains contained within the road boundary.
Custom Bracket Engineering: Through KEOU custom bracket and OEM manufacturing services, municipal buyers can request specialized tenon adapters with built-in internal optical angle compensation to preserve strict dark-sky compliance.
Warning: According to research on the effects of luminaire up-tilting on glare and light pollution, tilting standard street lights higher than 15° increases high-angle light spill by over 350%, violating Dark-Sky standards and significantly decreasing pavement contrast. Keep up-tilt under 10° whenever possible.
When evaluating adjustable angle LED street lights for municipal tenders or commercial projects, purchasing managers should focus on structural reliability and practical usability rather than complex lab testing figures.
Die-Cast Housing Material: Choose precision die-cast aluminum housings that withstand sudden thermal shifts and mechanical shocks without cracking.
Positive Gear Locking: Ensure the bracket uses interlocking gear teeth rather than smooth friction plates to prevent gradual drooping over years of exposure.
Weatherproof Sealing: The knuckle joint should include age-resistant silicone seals to keep rain and dust out of electrical chambers during angle adjustments.
Corrosion Resistance: For coastal or humid regions, select luminaires with UV-stabilized powder coating to resist rust and surface degradation.
Universal Tenon Fit: Verify that the slip fitter fits standard pole tenons with secure stainless steel locking set screws.
Adjustable angle LED street lights and tiltable brackets provide essential flexibility for modern roadway infrastructure. By accommodating sloped highways, mountain turns, terraced setbacks, and non-plumb legacy poles, adjustable spigots ensure that light is delivered efficiently onto driving surfaces while eliminating dark zones and driver glare.
When specifying adjustable luminaires for commercial or municipal projects:
Select fixtures with interlocking gear-tooth locking mechanisms and SUS304 stainless steel hardware to prevent bracket sagging over time.
Limit up-tilting to under 10° on IES Type II and Type III optics to prevent high-angle light spill and skyglow.
Opt for advanced anti-glare optical designs (such as KEOU's honeycomb shielding) when installing fixtures on steep incline roads.
For detailed photometric IES files, custom tenon adapter engineering, or OEM/ODM bulk project inquiries, explore the full range of outdoor lighting solutions from KEOU Lighting.
