If you sell office LED panel lights, you’ve probably seen “UGR < 19” show up in bids like it’s a binary checkbox: yes/no.
In reality, this is a system result—not a magic property a panel “has” in isolation. It depends on the room, the layout, the sightlines, and the photometric data used to model it. That difference is exactly why distributors get burned: the catalog says low glare, but the project ends with screen reflections, complaints, and a change order.
This guide is written for commercial lighting distributors who need to spec and shortlist panels confidently, request the right evidence from suppliers, and avoid the most common low-glare failure modes.
UGR stands for Unified Glare Rating—a standardized way to estimate the likelihood of discomfort glare from indoor lighting.
The key point to remember is this: UGR is calculated for an installation, not a luminaire in a vacuum. As NVC Lighting explains in “What is UGR?”, the result depends on the photometric file plus the room geometry, surface reflectances, luminaire spacing, and where the observer is looking from.
So when a datasheet says “UGR < 19 panel light,” treat it as shorthand for:
the luminaire’s distribution can help achieve this target under typical office assumptions
you still need proof tied to the conditions (or a project-specific model)
Key Takeaway: A UGR number without assumptions is not a spec—it’s a marketing hint.

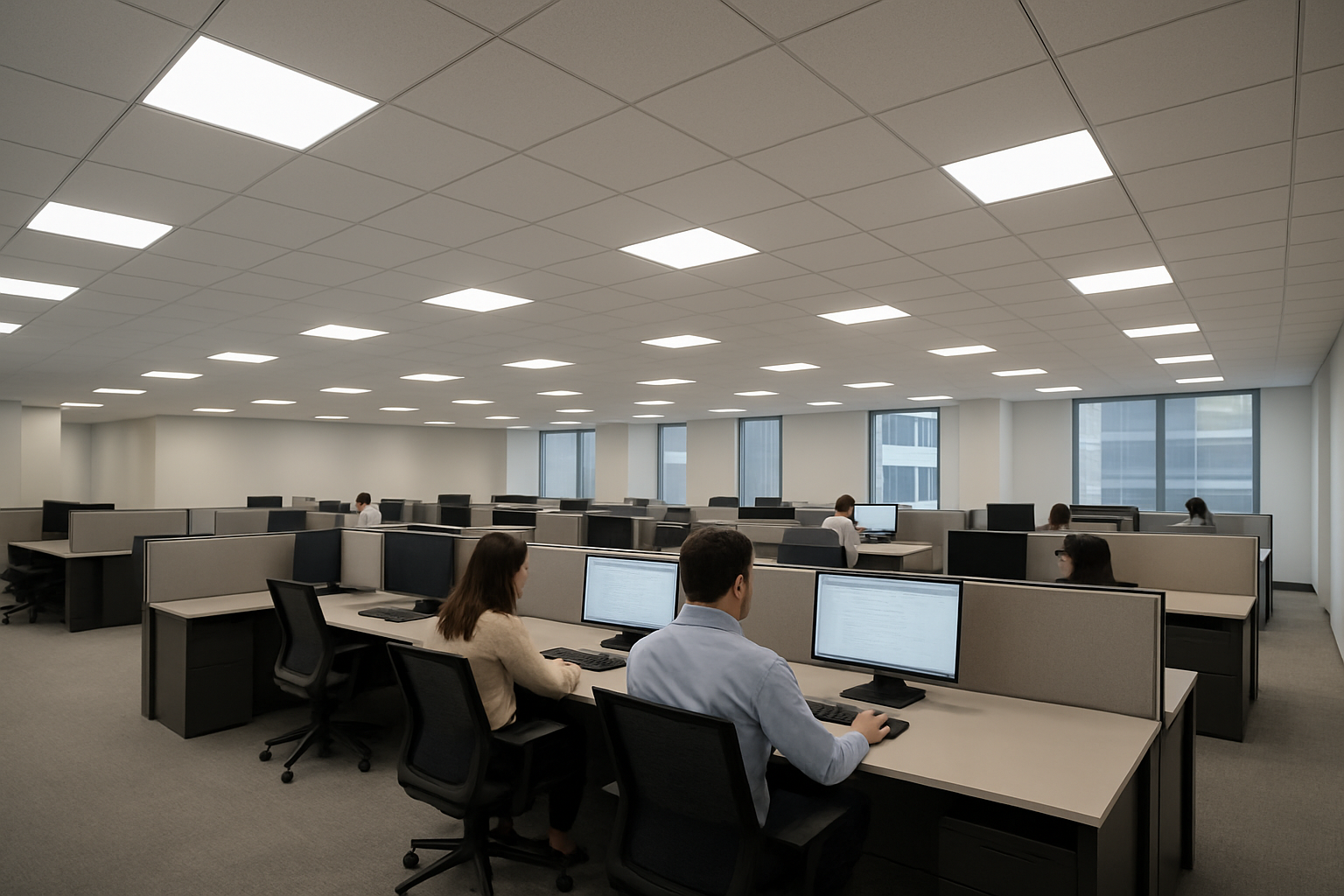

Office lighting is unforgiving because people spend hours in fixed sightlines—especially toward screens.
When glare isn’t controlled, it shows up as:
visual fatigue (people feel “tired” under the lights even when the lux level is fine)
monitor reflections and discomfort
end-user complaints that get routed back to the distributor
returns and rework (which usually cost more than upgrading optics upfront)
In many commercial specs, a low-glare target around this range is used as a benchmark for office and classroom comfort. Whether it’s enforced as a requirement or treated as best practice, the buying behavior is the same: projects expect low-glare performance, and they expect you to have the paperwork.
If you want a low-glare spec to survive a project (not just a catalog), request a proof pack that lets you validate three things:
Glare risk (UGR)
Distribution and uniformity (photometry)
Visual comfort over time (flicker / temporal light artifacts)
Ask for one of these (best to acceptable):
a project-style lighting design report (DIALux/Relux/AGi32) showing UGR at observer positions, or
a UGR table generated from the correct photometric data, with the assumptions spelled out
If you sell into the US market where rebate programs and third-party listing systems often matter, it helps to understand how verification typically works: the DesignLights Consortium (DLC) describes calculating UGR from the submitted tested IES file using reference conditions aligned to CIE methods (see DLC’s UGR fact sheet).
You don’t have to mirror DLC’s workflow—but the mindset is right:
UGR should trace back to a real photometric file
the conditions used should be explicit
UGR arguments fall apart fast when the supplier can’t provide the photometric file.
Request:
IES (or LDT) file for the exact optic variant
confirmation of the tested configuration: CCT, wattage/lumen package, optic, and driver
If a supplier offers “the same panel body” with different optics and drivers, that’s normal—but it means you need to know exactly which combination the photometry represents.
For office projects, glare is only half the comfort story. The other half is whether the light output is stable—especially with dimming and controls.
Instead of accepting “flicker-free,” ask for:
flicker / temporal light artifact metrics and the test conditions
clarity on what happens at dimmed levels (not just 100% output)
In EU-oriented documentation, PstLM and SVM are widely used metrics, and procurement teams often quote limits such as PstLM ≤ 1.0 and SVM ≤ 0.4 at 100% load. For a practical explanation of what those metrics represent (and why test setup matters), see Viso Systems’ tutorial on flicker and stroboscopic effects.
If your customer is using sensors, standby dimming, or scene control, ask the supplier whether they can provide evidence at the actual operating levels (full output + standby + transitions).
Most “UGR<19” outcomes come from reducing high-angle luminance—the bright light that hits the eye when you’re not looking directly at the fixture.
Here are the common approaches you’ll see in office-grade products:
Good when you need a clean ceiling look and want glare control without killing efficacy.
What to watch:
does the diffuser smooth hotspots (uniform luminance), or do you still see bright points?
does the supplier provide photometry for the exact diffuser option?
Great for shielding the source from high angles—often helpful in screen-heavy spaces.
Trade-off: louvers can reduce delivered lumens (you may need more fixtures or a higher output option).

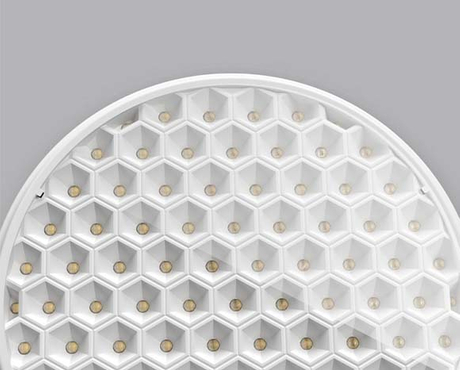

As an example of the “recess + louver” approach, KEOU’s embedded anti-glare panel design uses a honeycomb structure in products like the COMI UGR<19 Anti Glare Embedded Panel Light. Use it as a reference point for the mechanism—but still validate the project with photometry.
Recessing moves the bright source out of the direct line of sight.
This is especially relevant when your project mixes fixtures: panels for ambient light, then downlights/linear lights for zones. If the panel spec is tight on glare, don’t ruin the room with a high-luminance downlight in the screen wall sightline.
You can often predict a bad UGR outcome before a single fixture ships.
Here are the practical red flags:
“UGR<19” with no assumptions
No room model, no reflectance set, no mounting height, no spacing.
No IES/LDT file for the exact optic
If the supplier can’t provide the file, you can’t validate the claim.
UGR data tied to a different lumen package than the one being sold
Higher output often increases glare risk. Your validation should match the shipped output.
Flicker-free claim without a report
Especially risky if the project uses dimming, sensors, or a driver substitution.
Optics that look right but don’t solve hotspot luminance
If the panel face still shows bright points, UGR risk usually follows.
⚠️ Warning: The fastest way to lose an office bid is to “pass UGR on paper” and fail it at screen height.
Use this to keep supplier quotes comparable:
Glare: Provide UGR documentation showing UGR ≤ 19 for office conditions, including assumptions (mounting height, spacing, reflectances, observer height/position) and viewing direction.
Photometry: Provide IES (or LDT) photometric file for the exact configuration quoted (optic, lumen output, CCT, driver).
Flicker / TLA: Provide flicker evidence (e.g., PstLM/SVM or equivalent) including test conditions and results at 100% output. If dimming/controls are used, provide evidence at the intended operating levels.
Controls compatibility: State dimming protocol options (0–10V / DALI) and any compatibility notes.
Quality consistency: Provide warranty terms and batch consistency/QC notes relevant to repeat orders.
If you’re shortlisting low-glare office panels and want to reduce project risk, start by requesting the full documentation pack upfront.
For an example of the evidence-first approach (UGR + photometrics + flicker), see KEOU’s guide: UGR<19 Anti-Glare LED Panel Lights: Ultra-Thin + Flicker Specs.
If you want an engineering review on your BOM (optics selection, photometry, glare risk, and control compatibility), contact KEOU Lighting with your target quantities and project constraints.
