TD028 Quick Wiring Recessed LED Downlight
The KEOU TD028 recessed LED downlight features quick-connect wiring via terminal blocks and a 3-color temperature DIP switch. It is an innovative downlight on the market that combines multiple functions and practicality.
- Recessed LED downlight features quick-connect wiring via terminal blocks and a 3-color temperature DIP switch. It is an innovative downlight on the market that combines multiple functions and practicality.
- Exclusive terminal block structure supports ultra-fast fixture wiring, greatly saving construction time and labor cost
- 3-CCT 4-level DIP switch adjustment enables flexible on-site color temperature switching for diverse commercial styles
- Stable DOB driver ensures flicker-free uniform lighting and long service life for commercial use
- Adjustable spring structure adapts to different ceiling cut sizes for flexible and firm recessed installation
- Multiple power and lumen specifications meet multi-scene lighting demands for hotel, office and exhibition
3-CCT DIP Switch Downlight Description
KEOU TD028 Quick Wiring Recessed LED Downlight is a high‑performance commercial engineering lamp.
It adopts professional terminal block quick wiring and 3‑CCT 4‑level DIP switch adjustment. Quick‑wiring terminal block cuts on‑site installation time and reduces labor cost for contractors;
DIP switch on‑site color‑temperature adjustment avoids pre‑ordering multiple SKUs and optimizes project inventory management.
Equipped with stable DOB driver and aluminum back plate, it delivers reliable heat dissipation and long service life to lower post‑maintenance expense.
It supports multiple specifications, perfectly suitable for hotel, office and exhibition engineering with wholesale and OEM ODM support.
Quick Link To Led Downlight Detail Display Video
Quick Wiring Downlight Technical Data Sheet
| Power | In put | Size | Hole size | Luminous flux |
| 10W | AC 110-265V | Φ110x47mm | Φ70-90mm | 900lm |
| 15W | AC 110-265V | Φ130x51mm | Φ90-115mm | 1350lm |
| 20W | AC 110-265V | Φ160x52mm | Φ120-145mm | 1800lm |
| 25W | AC 110-265V | Φ180x57mm | Φ140-165mm | 2250lm |
| 30W | AC 110-265V | Φ200x56mm | Φ160-180mm | 2700lm |
| 40W | AC 110-265V | Φ230x62mm | Φ190-210mm | 3600lm |
Product Details Display

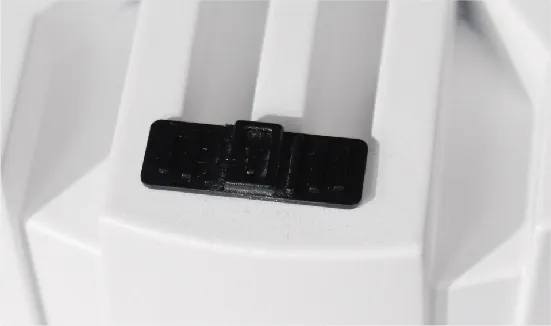

Equipped with a 3-color-temperature, 4-position DIP switch, allowing for on-site color temperature adjustment; the switch layout is integrated into the lamp body.

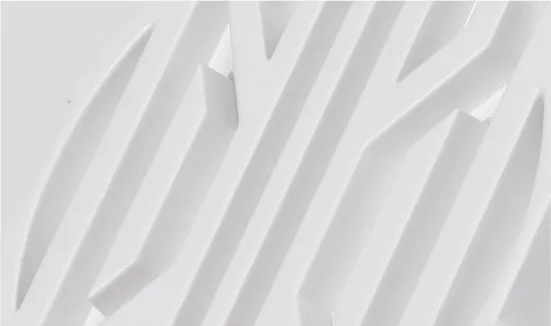

The white painted die-cast aluminum housing features a built-in air convection cooling structure and a neat, streamlined appearance.

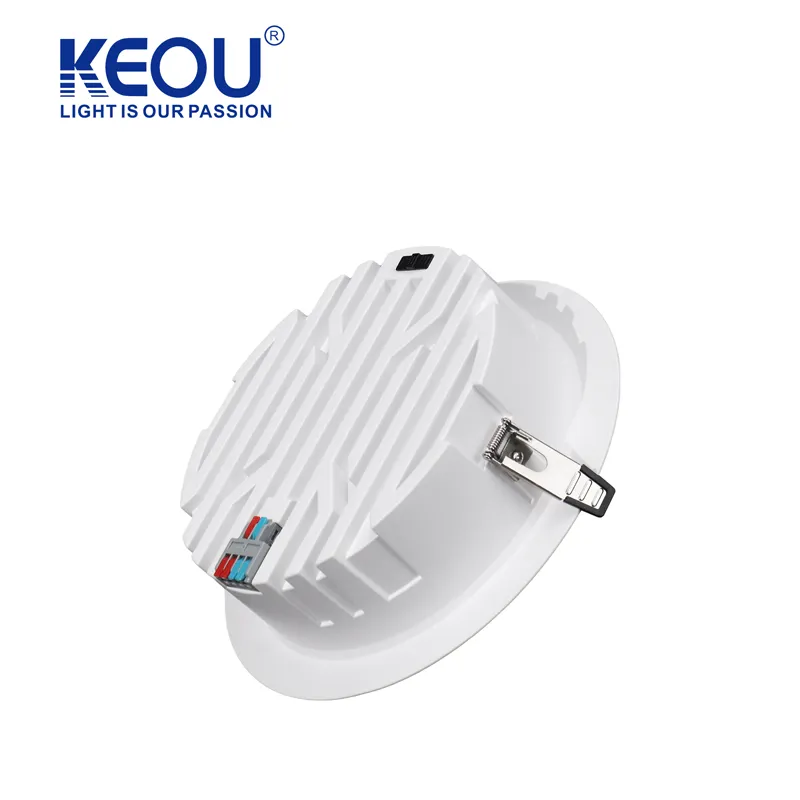

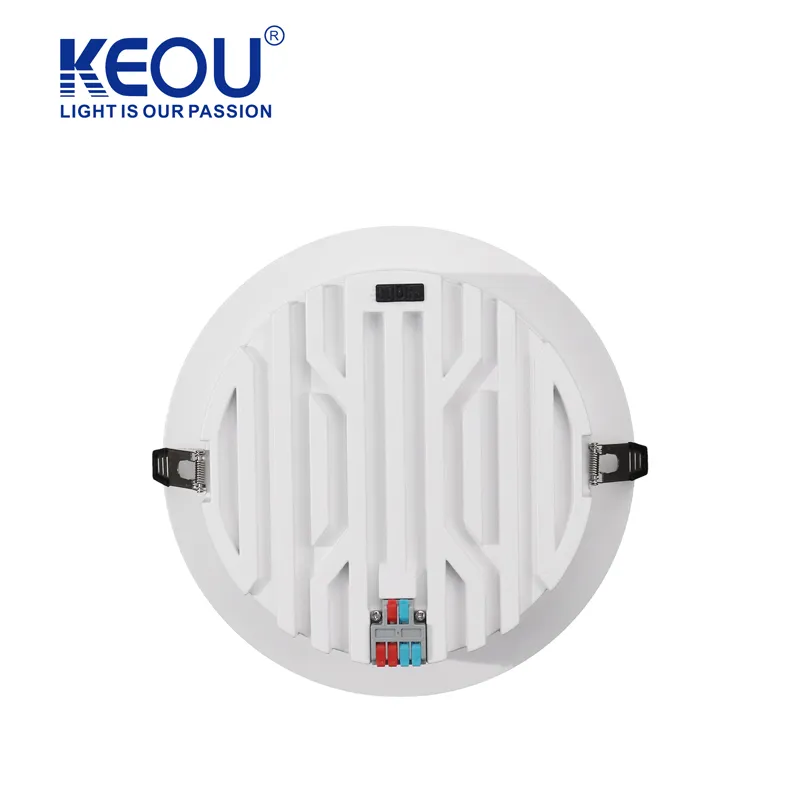

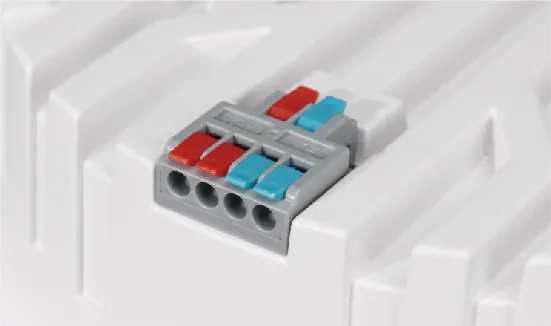

The rear of the lamp body integrates a terminal block with a clean and simple wiring design, enabling quick and easy wiring.
Get Free Quote Of Adjustable Color Temperature Downlight
We support wholesale of complete sets/individual parts, as well as customized agency services. Multiple supply models are available; inquiries are welcome.
Introduction To The Application Of 3-color Temperature Downlights
· Hotel Commercial Lighting: Flexible 3-CCT adjustable color temperature matches various hotel decoration styles, and quick wiring design greatly improves engineering construction efficiency.
- Office Working Spaces: Stable uniform soft light creates comfortable office environment, ideal for long-term daily lighting and office batch renovation projects.
- Exhibition Hall Display Spaces: Adjustable color temperature enriches display layering, highlighting product texture and meeting high-standard commercial display lighting needs.
- B-end Engineering Projects: Complete specifications and efficient installation perfectly adapt to large-scale commercial engineering procurement and batch construction.

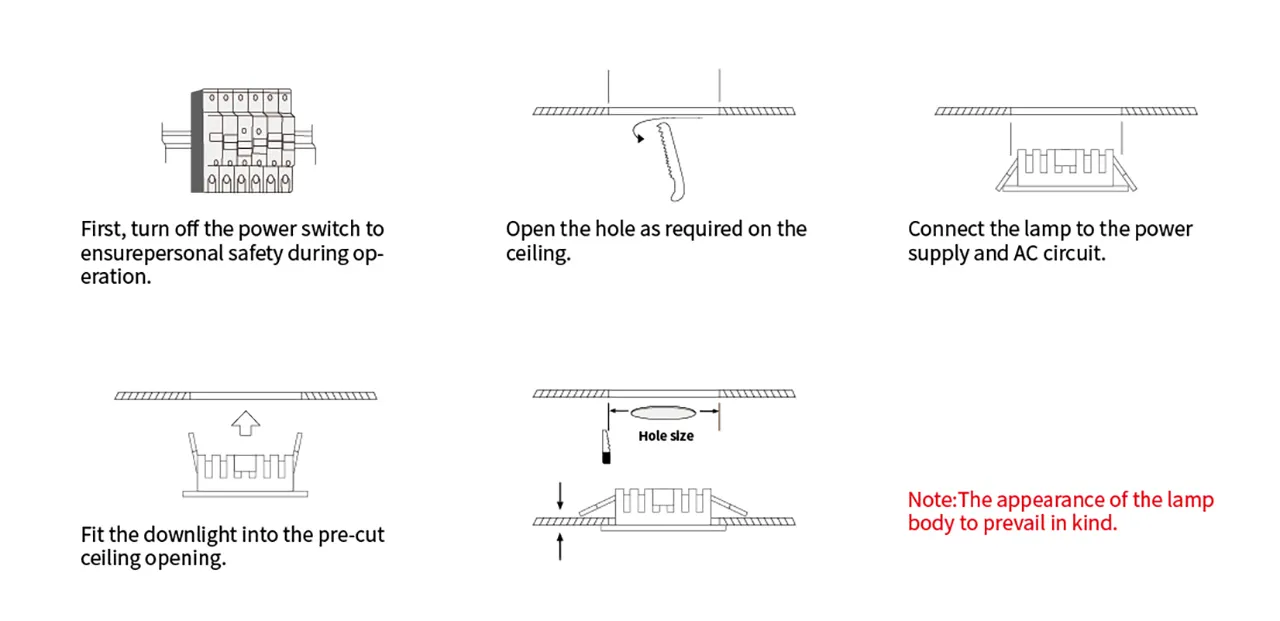

Flexible Installation Steps
1. Complete safe and fast wiring through the matched terminal block and junction box.
2. Adjust the spring width to adapt to the actual ceiling opening size.
3. Stably clamp the lamp into the ceiling gap to complete firm anti-drop installation.
3-CCT 4-Level DIP Switch Performance
Built-in 3-CCT 4-level DIP switch supports arbitrary color temperature switching according to actual decoration needs. The flexible color matching function breaks the single-light limitation of ordinary downlights, perfectly matching diverse modern commercial decoration styles and multi-scene lighting requirements.
