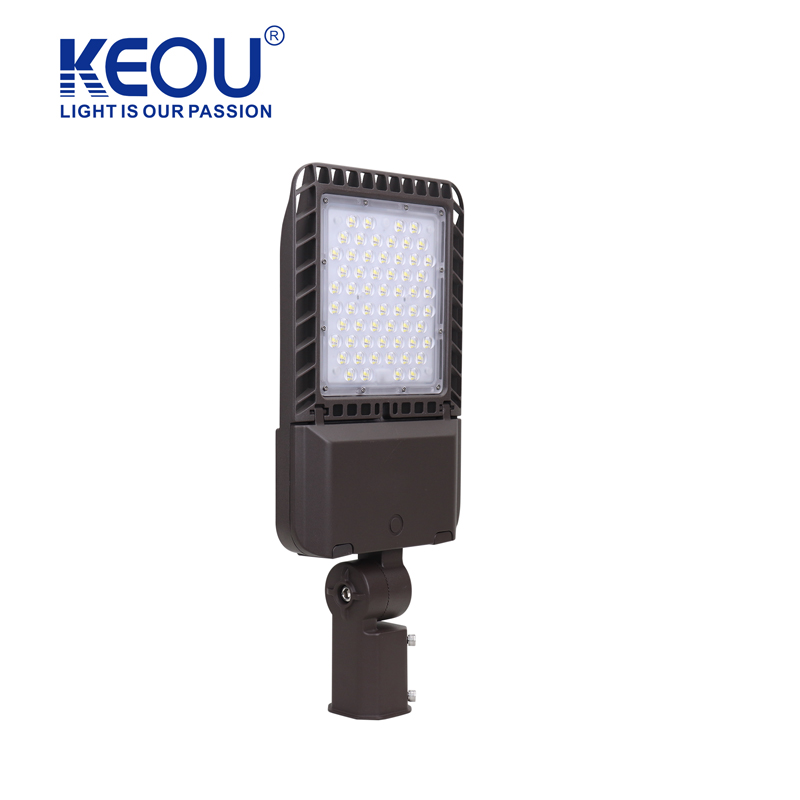

LD014 Separated Thermoelectric Structure Street Light
LD014 LED Street Light features thermoelectric separation, IP66 waterproofing and 180-degree rotation for campus, plaza and road lighting projects.
• 180° rotation adjustment: switch the lighting angle freely to cover multiple directions, meeting precise lighting needs of diverse scenarios.
• IP66 waterproof rating: excellent sealing resists outdoor wind, rain and humid environments for stable long-term operation.
• Baked-enamel die-cast aluminum body: the baked paint finish offers outstanding oxidation resistance and a robust, durable structure.
• Turbine heat dissipation system: the high-efficiency convective turbine structure keeps the lamp cool, while flame-retardant materials stay color-stable and long-lasting.
• Simple fast installation: supports pole mounting and wall mounting, saving time and labor and reducing installation costs.
Street Light Description
KEOU LD014 LED Street Light is an engineered outdoor lighting solution built on thermoelectric separation structure, with separated light source and electrical parts for safer operation and easier maintenance. The die-cast aluminum body with baked enamel finish resists oxidation, while the high-efficiency convective turbine heat dissipation system reduces light decay and prolongs service life. Supporting 180-degree rotation, the luminaire covers multiple angles for precise illumination, and the isolated wide-voltage driver ensures stable performance worldwide. Rated IP66 waterproof, it is an ideal choice for campus, plaza, garden, road and rural projects.

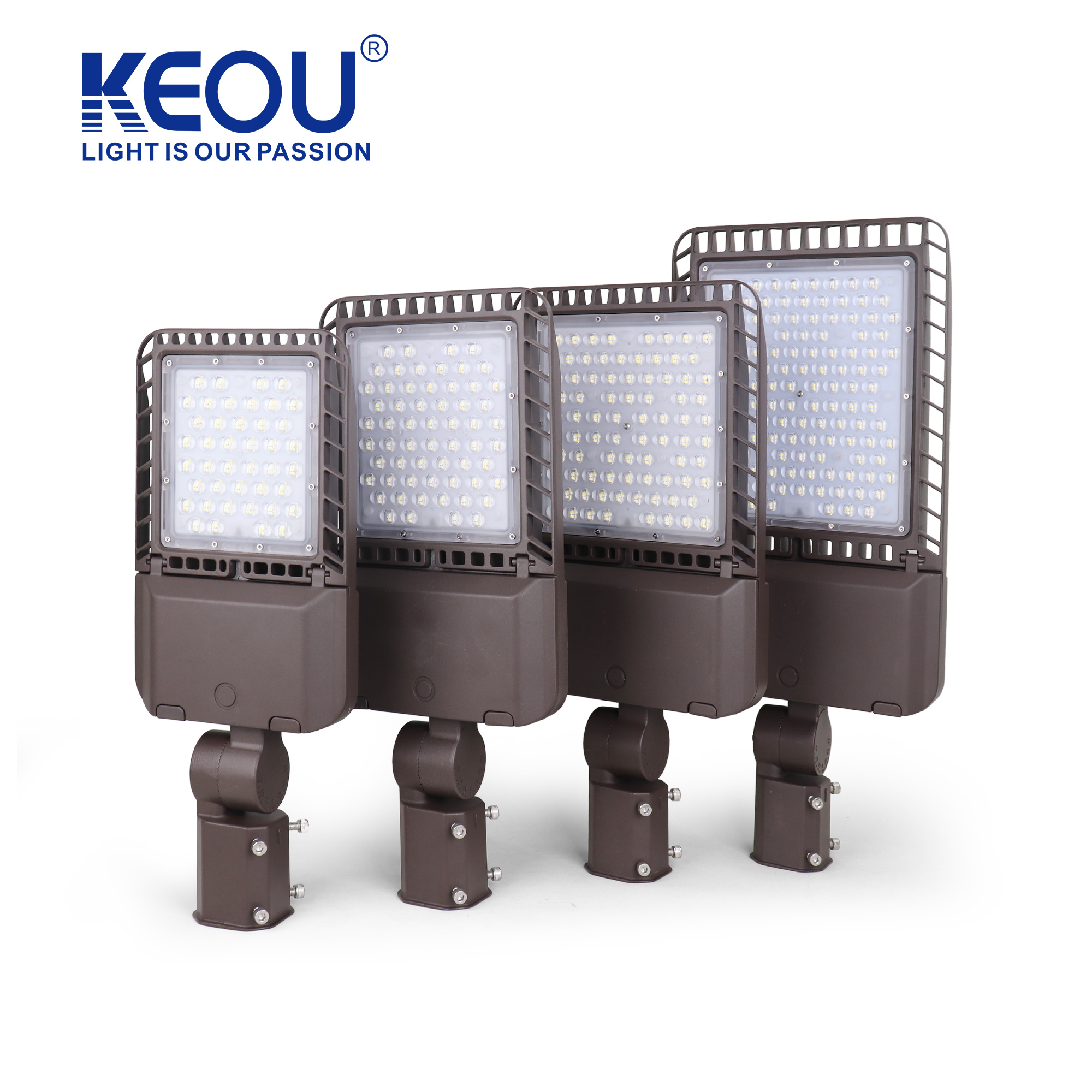

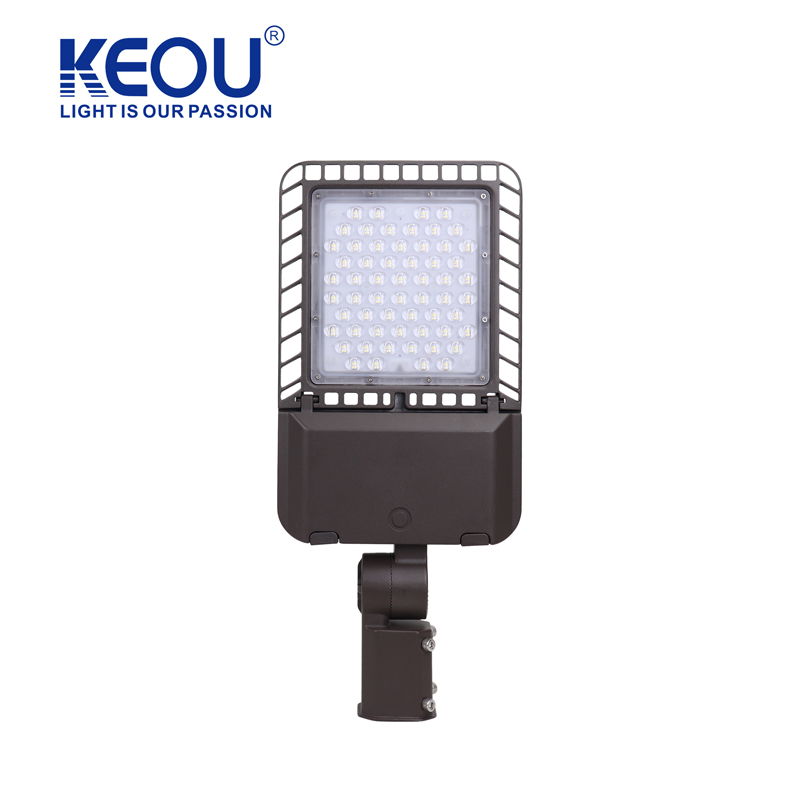

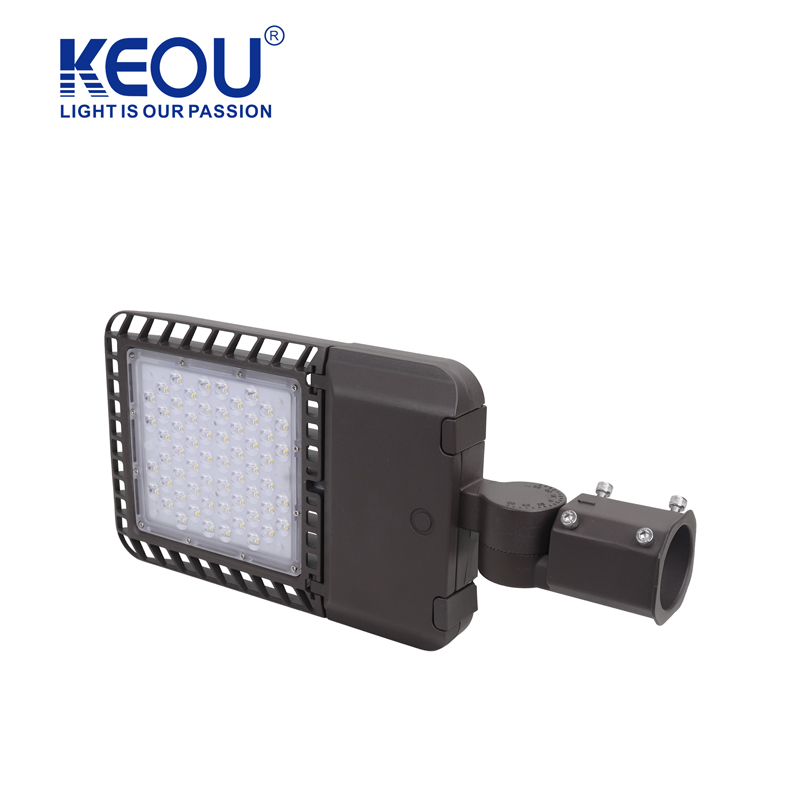

Showcase of the LD014 Street Light
Technical Data Sheet
| Power | Size(mm) | Luminous flux | Material |
| 100W | 520x210x80 | 10000lm | Die-casting Aluminum |
| 150W | 565x250x80 | 15000lm | Die-casting Aluminum |
| 200W | 590x280x80 | 20000lm | Die-casting Aluminum |
| 300W | 675x300x85 | 30000lm | Die-casting Aluminum |
| 400W | 725x342x90 | 40000lm | Die-casting Aluminum |
Procedures for Various Installation Methods
| Installation Method | Applicable Scenarios | Installation Steps | Common Advantages |
| Wall-mount bracket type | Community enclosures, building exterior walls, courtyard lanes, under eaves/balconies, factory walls, side parking lots, park trails next to buildings and other areas with available walls | 1. Locate and mark mounting holes on the wall; | Simple and fast installation, time-saving and labor-saving, reducing installation costs |
| 2. Drill holes and drive in expansion bolts; | |||
| 3. Fasten the bracket to the wall; | |||
| 4. Connect power cables and complete waterproof insulation; | |||
| 5. Fix the lamp to the bracket and adjust the lighting angle; | |||
| 6. Power on and test lighting status and angle | |||
| High-pole type | Urban roads, main roads, squares, open parking lots, playgrounds, park roads, large outdoor sites, under overpasses and other open areas without walls for mounting and requiring elevated lighting | 1. Select the pole position, make foundation and fix the pole; | |
| 2. Install the lamp on the bracket at the top of the pole; | |||
| 3. Thread cables, make connections and waterproof the joints; | |||
| 4. Adjust the lighting angle of the lamp; | |||
| 5. Power on and test lighting and illumination coverage |
Product Details

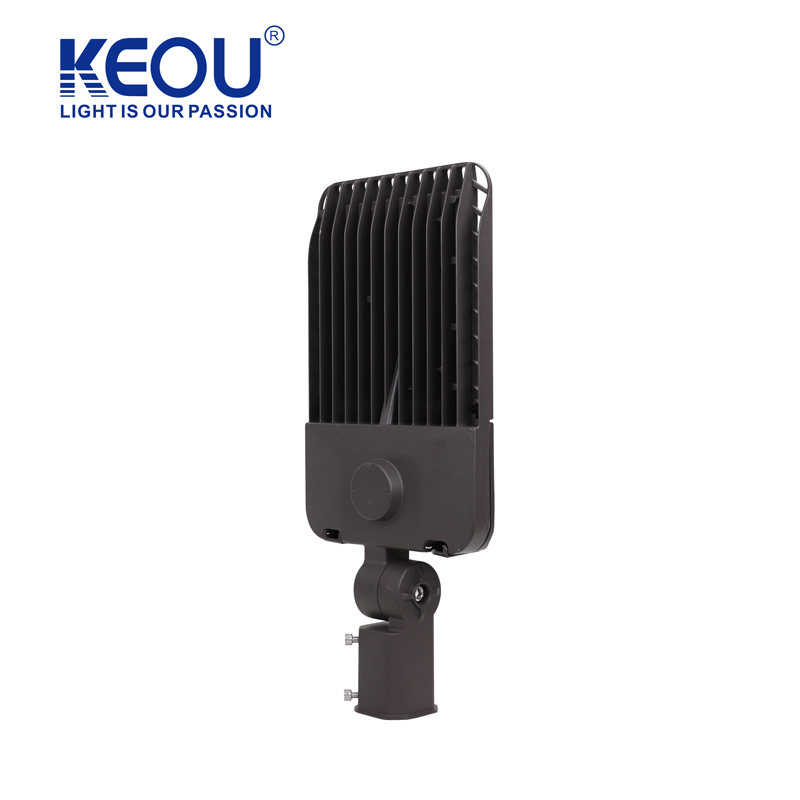

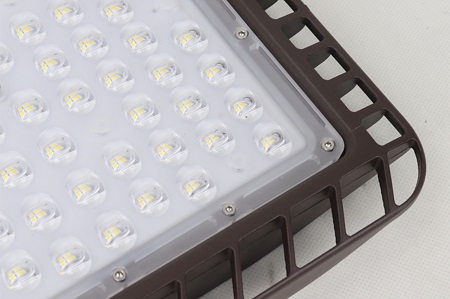

IP66 Waterproof & Turbine Heat Dissipation Design

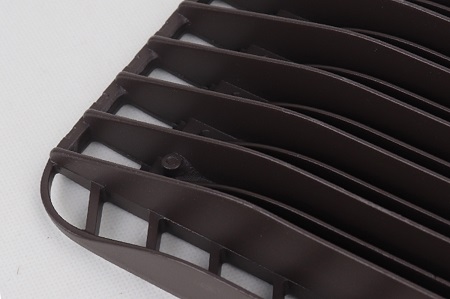

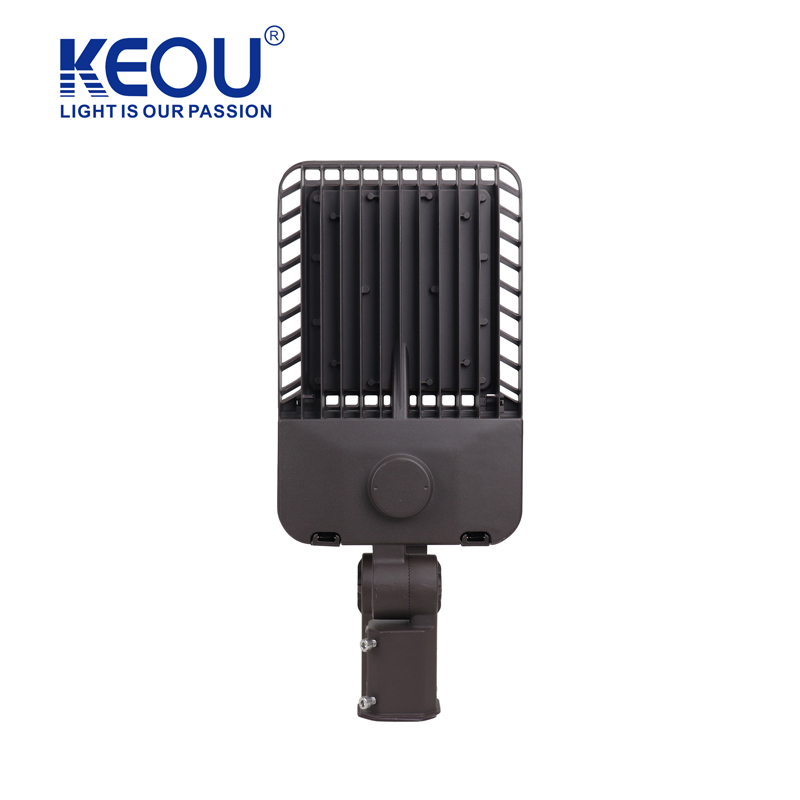

The IP66-rated housing resists wind, rain and humid outdoor environments. Inside, the high-efficiency convective turbine heat dissipation system keeps operating temperature low, while flame-retardant, color-stable materials ensure long-lasting durability.

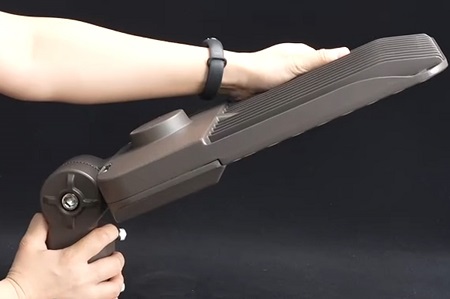

Die-cast Aluminum & PC Housing with Split Structure
Constructed with durable die-cast aluminum housing and PC lampshade, it adopts a separable split structure. The driver cover triggers automatic power cut-off once opened, bringing safe, convenient and quick maintenance.

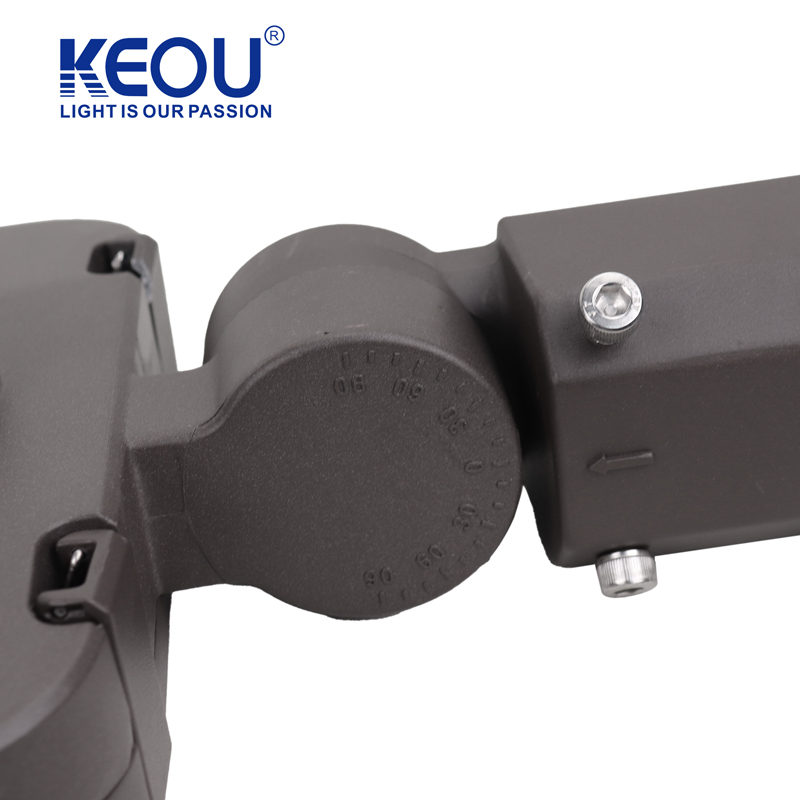

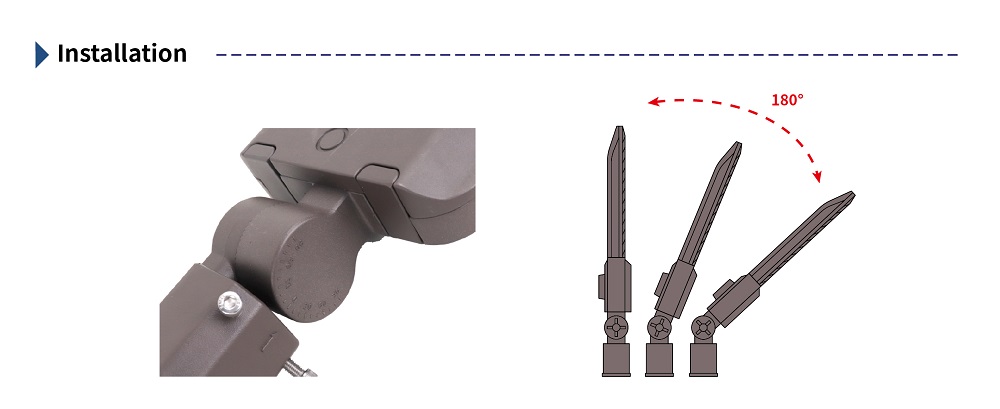

180° Rotation Multi-Angle Adjustment
The luminaire supports 180-degree rotation adjustment, allowing flexible switching of lighting angles to precisely cover roads, walls, corners and other directions. Once fixed, the angle stays stable without shifting.
Contact us now to get a free sample
Use Cases
 |
 |
 |
|

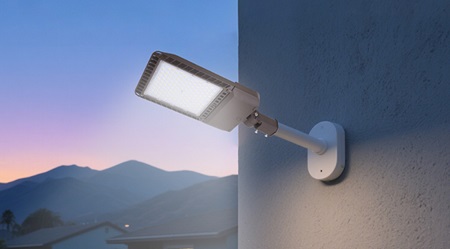

• Wall-Mount Courtyard & Building Lighting: Engineering-grade LED street lights installed on exterior walls deliver uniform, waterproof and durable illumination that lights up courtyards and building exteriors, providing stable evening lighting and guarding courtyard safety at night.
|

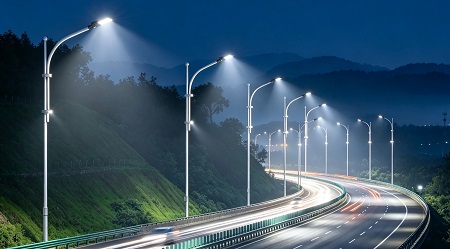

• Highway & Main Road Lighting: High-power, high-brightness LED street lights provide sufficient illuminance and clear long-distance visibility, ensuring safe night-time traffic on highways and adapting to large road engineering projects.
|

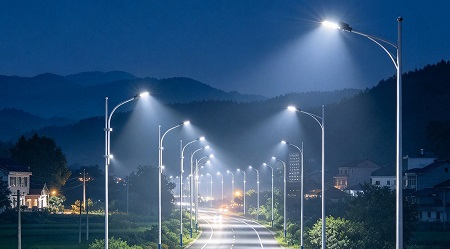

• Rural Road Lighting: Mass-installed, weather-resistant LED street lights light up rural main roads, improving night-time road conditions and supporting beautiful rural lighting projects.
|
FAQ
Design Highlights

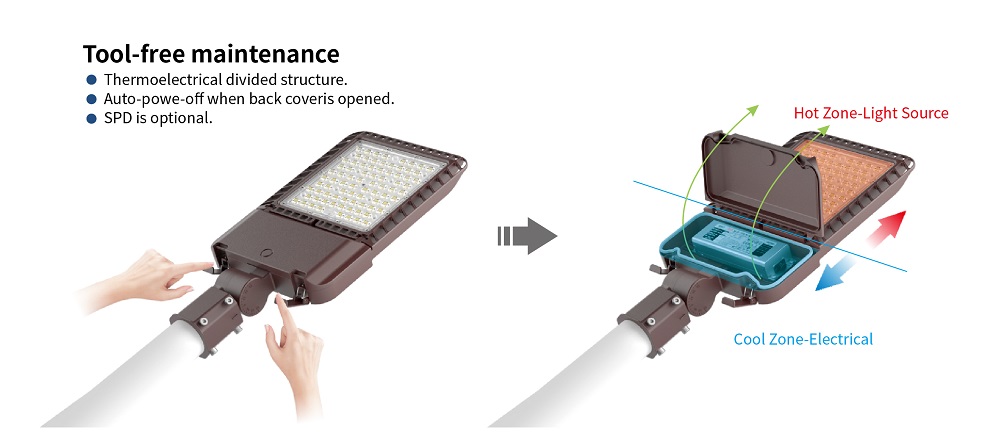

Tool-free Maintenance & Thermoelectrical Divided Structure
*Design Purpose: Adopt thermoelectrical divided structure to separate the light source hot zone and driver cool zone.
*Solved Pain Points: Prevent LED heat from transferring to sensitive driver components, overcome premature driver aging, serious light decay and early luminaire failure caused by heat conduction, enhance heat dissipation and extend lamp life.
*Design Purpose: Realize tool-free rear cover opening with auto power-off function.
*Solved Pain Points: Address troubles in high-altitude maintenance including tool carrying, tedious power-off steps and electric shock hazards, simplify field repair work and cut maintenance cost.
*Design Purpose: Support optional SPD surge protector.
*Solved Pain Points*: Guard internal electric parts against lightning surge damage for projects with unstable power supply and frequent thunderstorms.
