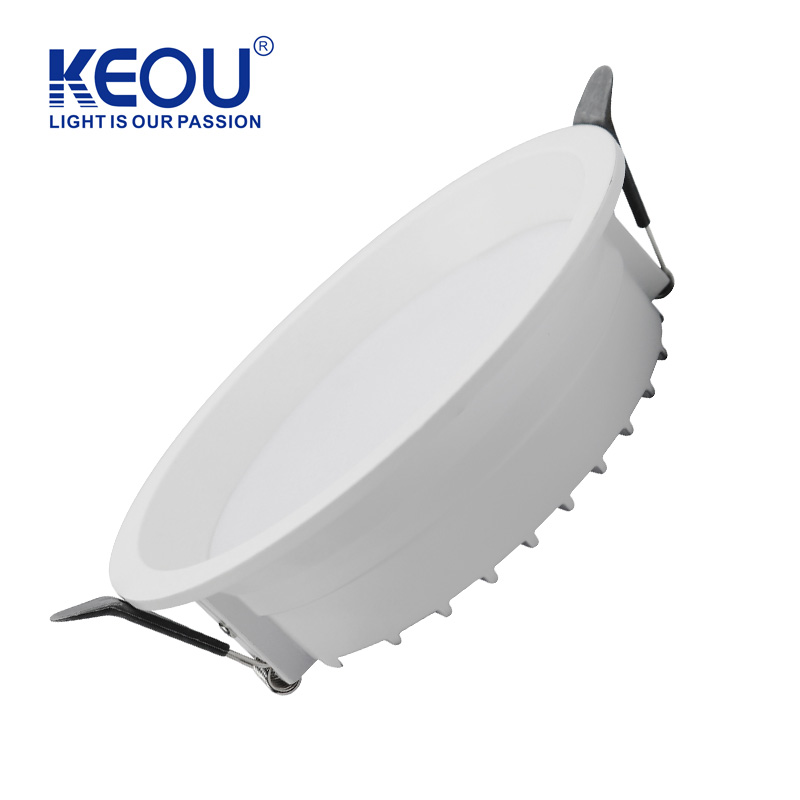

TD002 Deep Anti-Glare Recessed Downlight
TD002 deep anti-glare recessed downlight: see lighting but not the lamp, blue-light-free eye protection, aluminum body for malls, hotels, offices and homes.
– High quality aluminum material: efficient heat dissipation, durable and long lifespan.
– High quality LED chip delivers even light with long lifespan.
– Deep anti-glare design: see lighting but not the lamp, comfortable without dazzling light.
– Blue-light-free light source protects eyes.
– High light transmittance cover with soft, comfortable light output.
– Intelligent constant current driver protects against overheat, short circuit and undervoltage.
Deep Anti-Glare Recessed Downlight Description
The TD002 deep anti-glare recessed downlight is designed for shopping malls, hotels, offices, living rooms and bedrooms. Its high-quality aluminum body ensures efficient heat dissipation for a durable, long lifespan, while the high-quality LED chip delivers even light. The deep anti-glare design lets you see lighting but not the lamp, creating comfortable illumination without dazzling glare. The blue-light-free light source protects eyes during long-time use, and the high light transmittance cover produces soft, comfortable light. An intelligent constant current driver protects against overheat, short circuit and undervoltage for stable, safe operation. A reliable choice for commercial and residential lighting projects.
Learn more about the TD002 downlight
Anti-Glare Downlight Technical Data Sheet
| Power | Size(mm) | Hole size(mm) | Luminous flux |
| 9W | 89×40 | 75-80 | 723lm |
| 12W | 120×40 | 100-110 | 1217lm |
| 18W | 140×40 | 125-135 | 1419lm |
| 24W | 169×40 | 155-160 | 2094lm |
| 36W | 221×40 | 200-215 | 3140lm |
Easy to install, ready to use immediately.
1. First, turn off the power switch to ensure personal safety during installation.
2. Cut the required opening on the ceiling.
3. Connect the lamp to the mains power circuit.

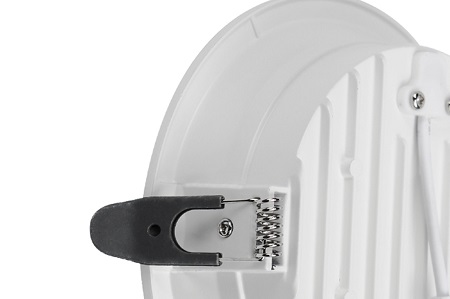

4. Press the spring clips inward by hand.
5. Insert the lamp into the pre-cut ceiling opening.
Note: The actual appearance of the product may vary.
Product Details Display

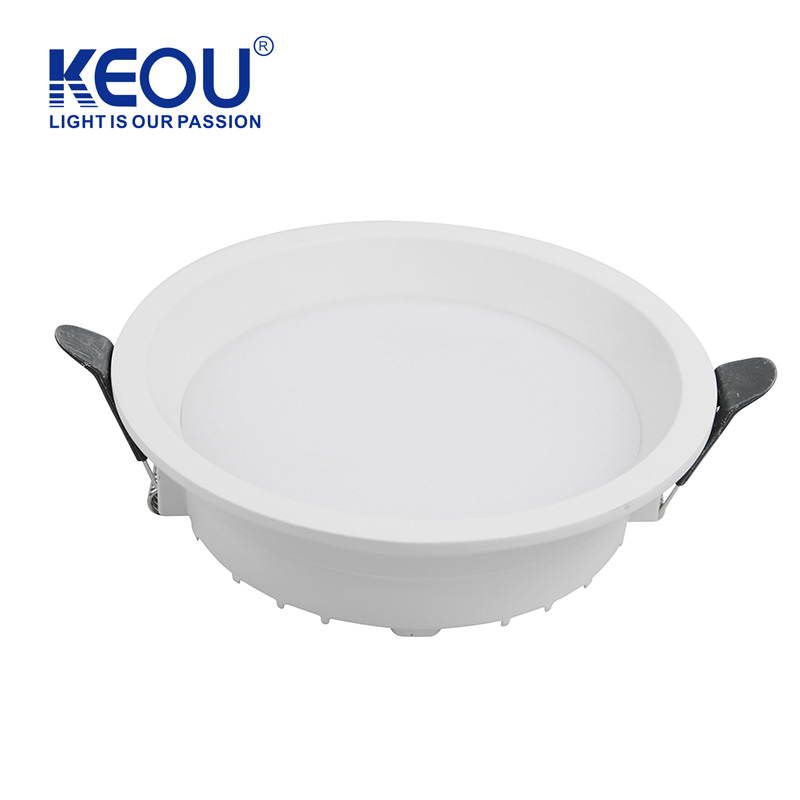

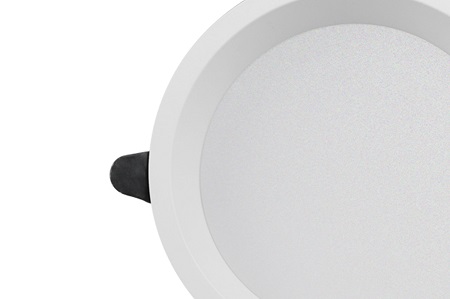

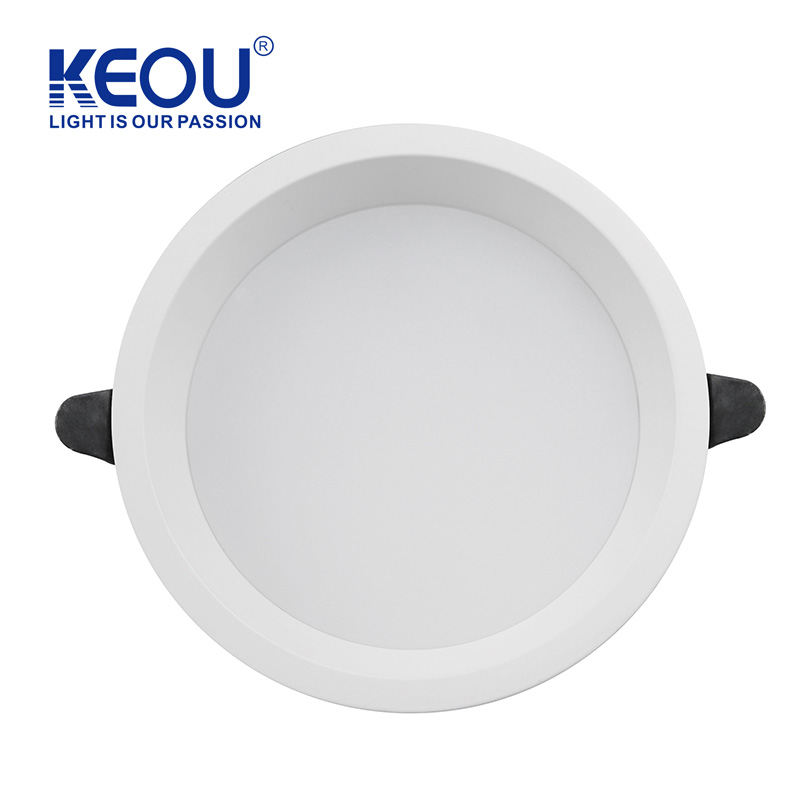

Exterior Design
Round recessed profile with deep anti-glare structure; see lighting but not the lamp, refined and comfortable light face.

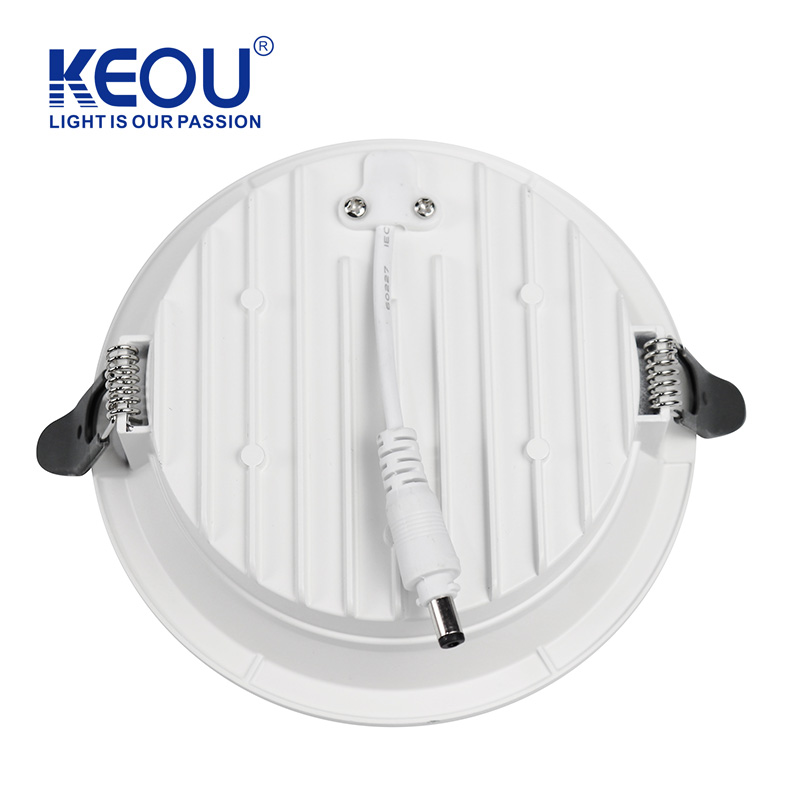

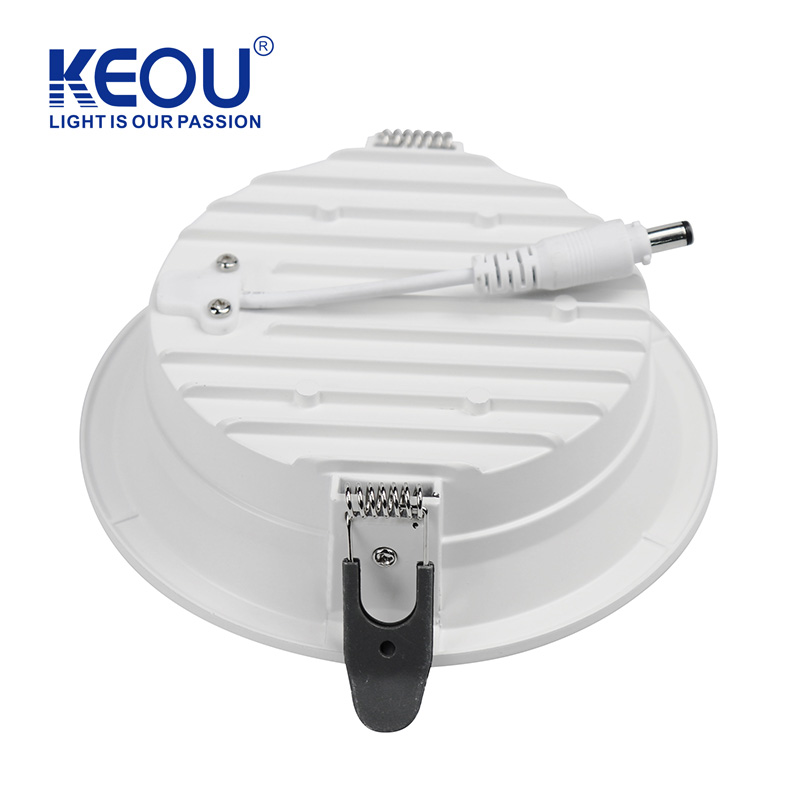

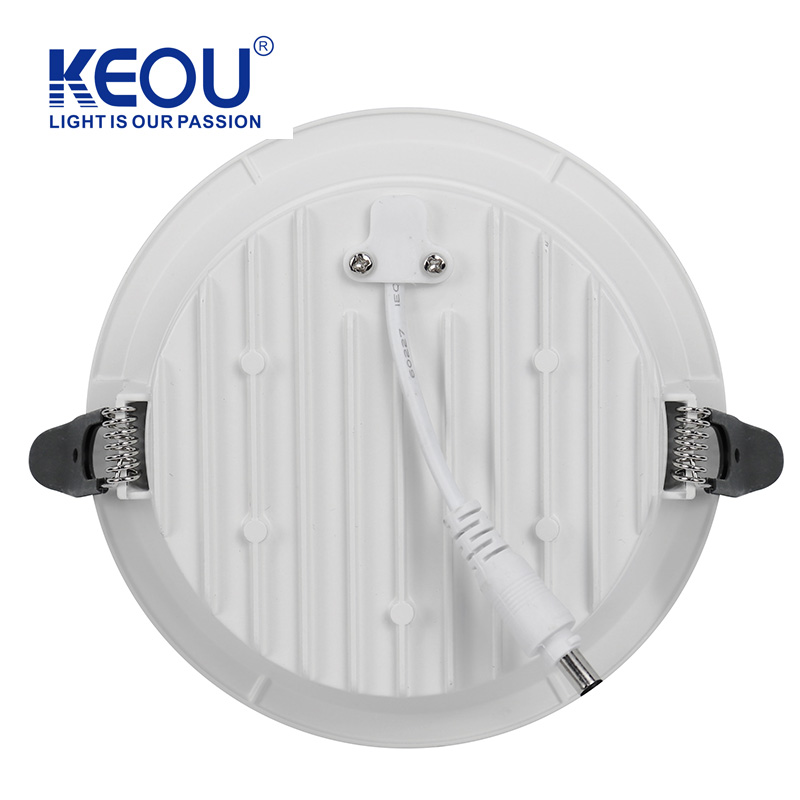

Internal Configuration
High-quality LED chip with intelligent constant current driver; overheat, short circuit and undervoltage protection; blue-light-free light source protects eyes.

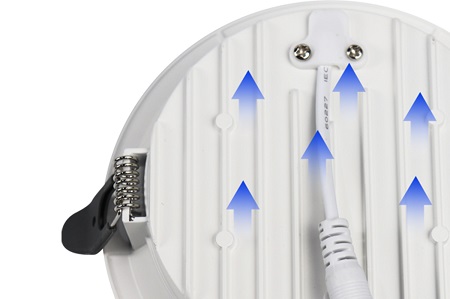

Material Craft:
High-quality aluminum body with efficient heat dissipation; high light transmittance cover for soft, comfortable light.
Get Free Quote
Recessed Downlight Applications
 |
 |
 |
|

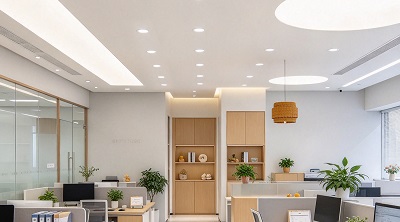

Office: Uniform soft anti-glare light effectively reduces screen reflections, eye-protecting without glare, providing stable comfortable lighting for working areas.
|

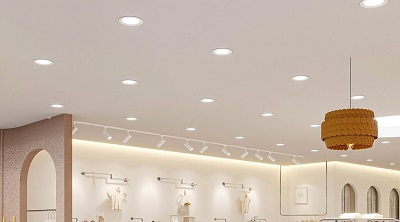

Kids’ Clothing Store: Recessed anti-glare downlights spread light evenly, restoring the true colors of children’s clothing, reducing reflections and softly highlighting a warm, playful store style.
|

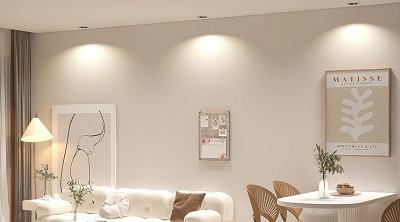

Living Room: Anti-glare soft light without dazzling spots washes the wall decorations, creating a warm and comfortable home atmosphere for leisure and gatherings.
|
FAQ
Anti-Glare Down light Advantages
Pain Point Conventional recessed lights expose the light source. Bright light directly hits human eyes and causes glare. Under this lighting for long hours, users will feel dazzled, eye strain and discomfort.

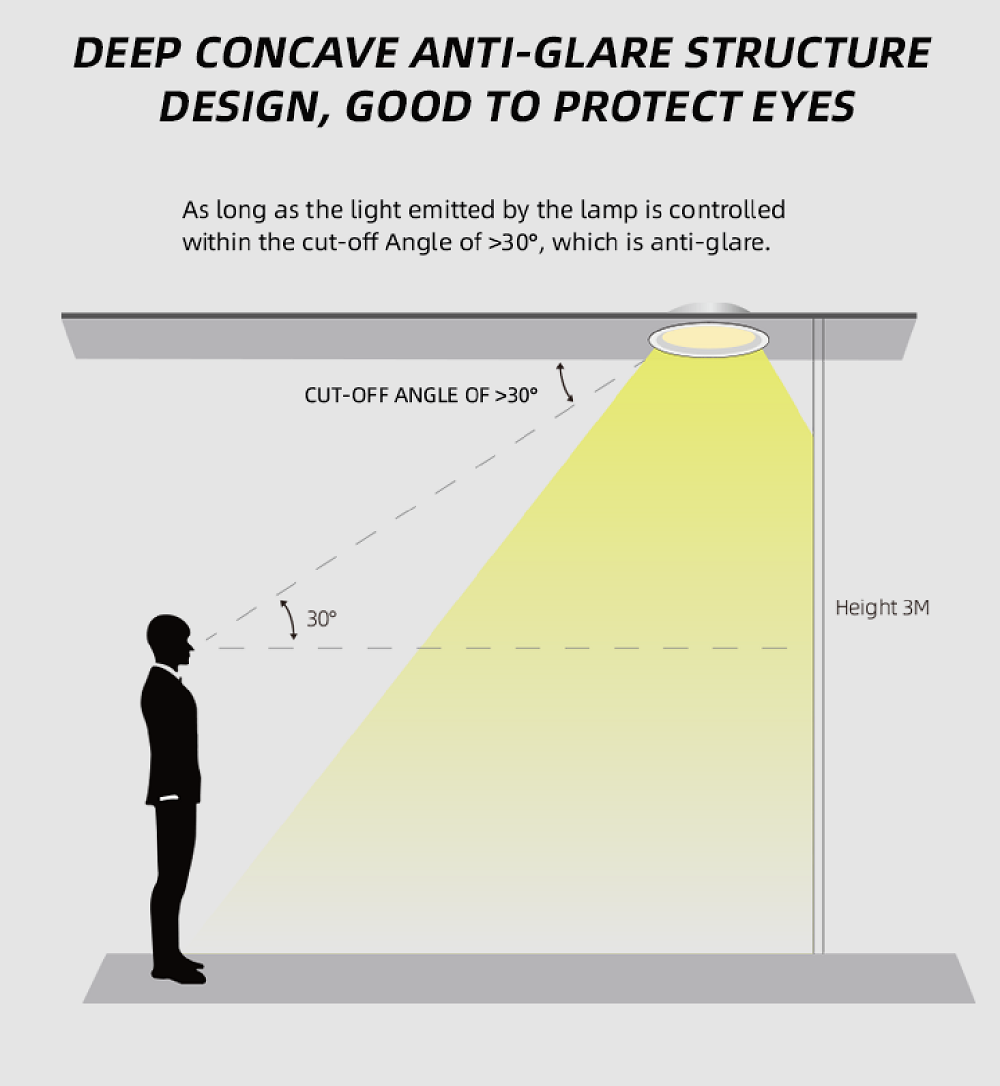

Our Solution We adopt a deep concave anti-glare structure. The light source is recessed inward, with the cut-off angle controlled above 30°. For a standard ceiling height of 3M, the light source will be hidden out of the human horizontal line of sight.
Advantages
- Effectively block direct glare and relieve eye fatigue;
- Soft and even light output, comfortable for long-time use;
- Ideal for home, office, hotel and retail lighting projects.
