High-brightness LED chip: bright energy-saving,long lifetime
Chip: SMD LED evenly distributed on both sides of the lamp body
Aluminum frame: high quality thick aluminum, white paint,rust proof and the rub off
High-brightness LED chip: bright energy-saving,long lifetime
Chip: SMD LED evenly distributed on both sides of the lamp body
Aluminum frame: high quality thick aluminum, white paint, rust proof and the rub of

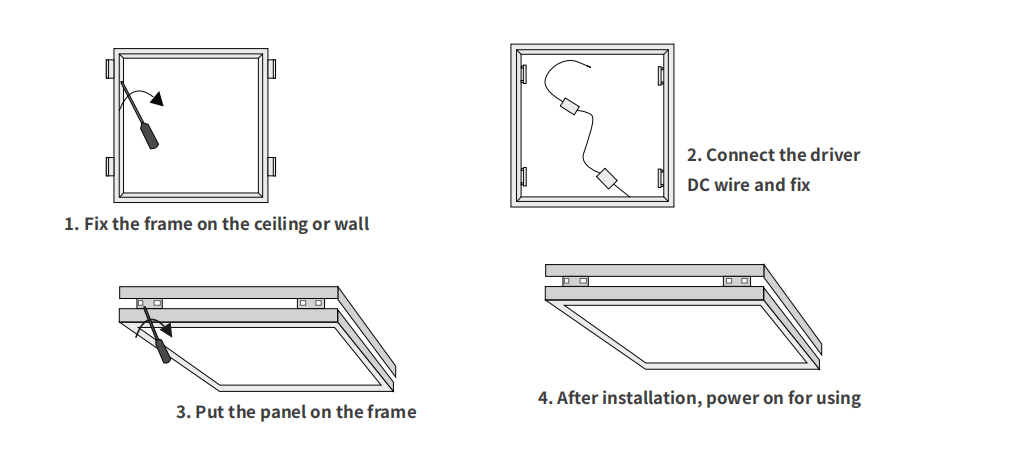

Fix the frame on the ceiling or wall
Connect the driver DC wire and fix
Put the panel on the frame
After installation, power on for using
Model number | Power | Size(mm) | LED Type | Ra | Luminous flux | In put | PF | Material |
KEOU-ZMPB6060-36W | 36W | 595x595x9 | SMD 3030 | 80 | 3600lm | 85-2650V | 0.9 | PS+Aluminum |
KEOU-ZMPB6060-42W | 42W | 595x595x9 | SMD 3030 | 80 | 4200lm | 85-2650V | 0.9 | PS+Aluminum |
KEOU-ZMPB6060-48W | 48W | 595x595x9 | SMD 3030 | 80 | 4800lm | 85-2650V | 0.9 | PS+Aluminum |
KEOU-ZMPB6060-60W | 60W | 1195x295x9 | SMD 3030 | 80 | 6000lm | 85-2650V | 0.9 | PS+Aluminum |
KEOU-ZMPB6060-72W | 72W | 1195x295x9 | SMD 3030 | 80 | 7200lm | 85-2650V | 0.9 | PS+Aluminum |
