Fix different size cut out, no need to worry about the size.

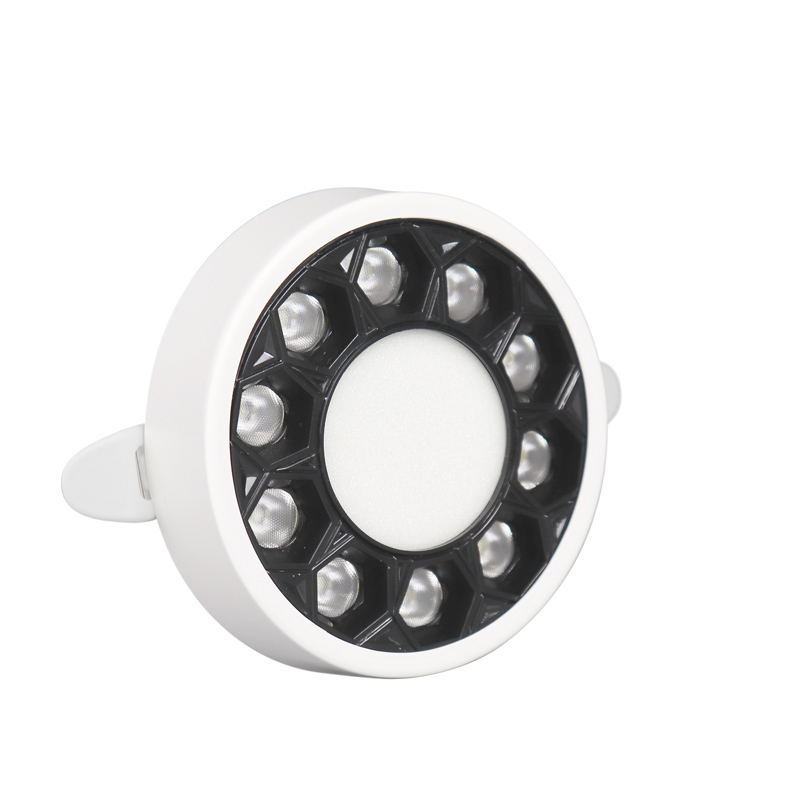

Patented hexagonal honeycomb anti-glare design, effective control of glare, sharp light spot edge, uniform illumination.
Two lighting modes can be switched at will: downlight mode+spotlight mode.
Anti-glare design, no harm from blue light, protect eyes.
Unique appearance design, quick installation.
High quality aluminum material, one-batch forming.
8 surface rings(White, black, Matte black, matte silver, Gun black,bright silver, rose gold, Champagne gold).
First,turn off the power switch to ensurepersonal safety during operation
Open the hole as requiredon the ceiling

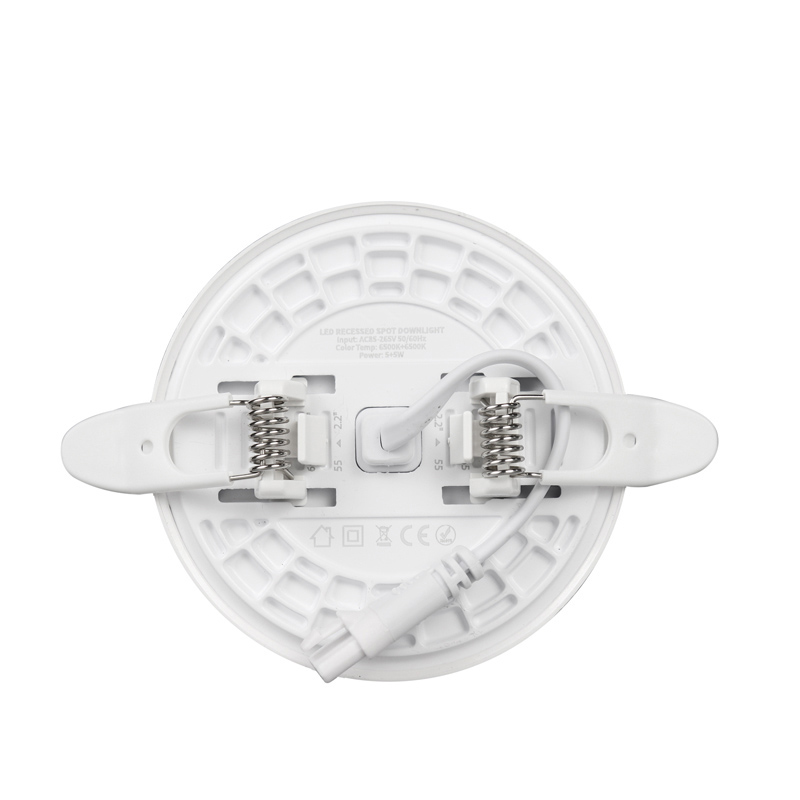

Push the spring by hand
Push it forward
Connect the lamp to the powersupply and AC circuit
Hold the lamp into a pre-open hole
Model number | Power | Size(mm) | Hole size | Ra | Luminous flux | Input | PF | Material |
MB043-10W | 5+5W | Φ90×23 | Φ55-75mm | 80 | 800lm | 100-240V | 0.5 | PC+Aluminum |
MB043-18W | 9+9W | Φ120×23 | Φ75-105mm | 80 | 1440lm | 100-240V | 0.5 | PC+Aluminum |
MB043-24W | 12+12W | Φ170×23 | Φ75-155mm | 80 | 1920lm | 100-240V | 0.5 | PC+Aluminum |
MB043-36W | 18+18W | Φ225×23 | Φ75-205mm | 80 | 2880lm | 100-240V | 0.5 | PC+Aluminum |
